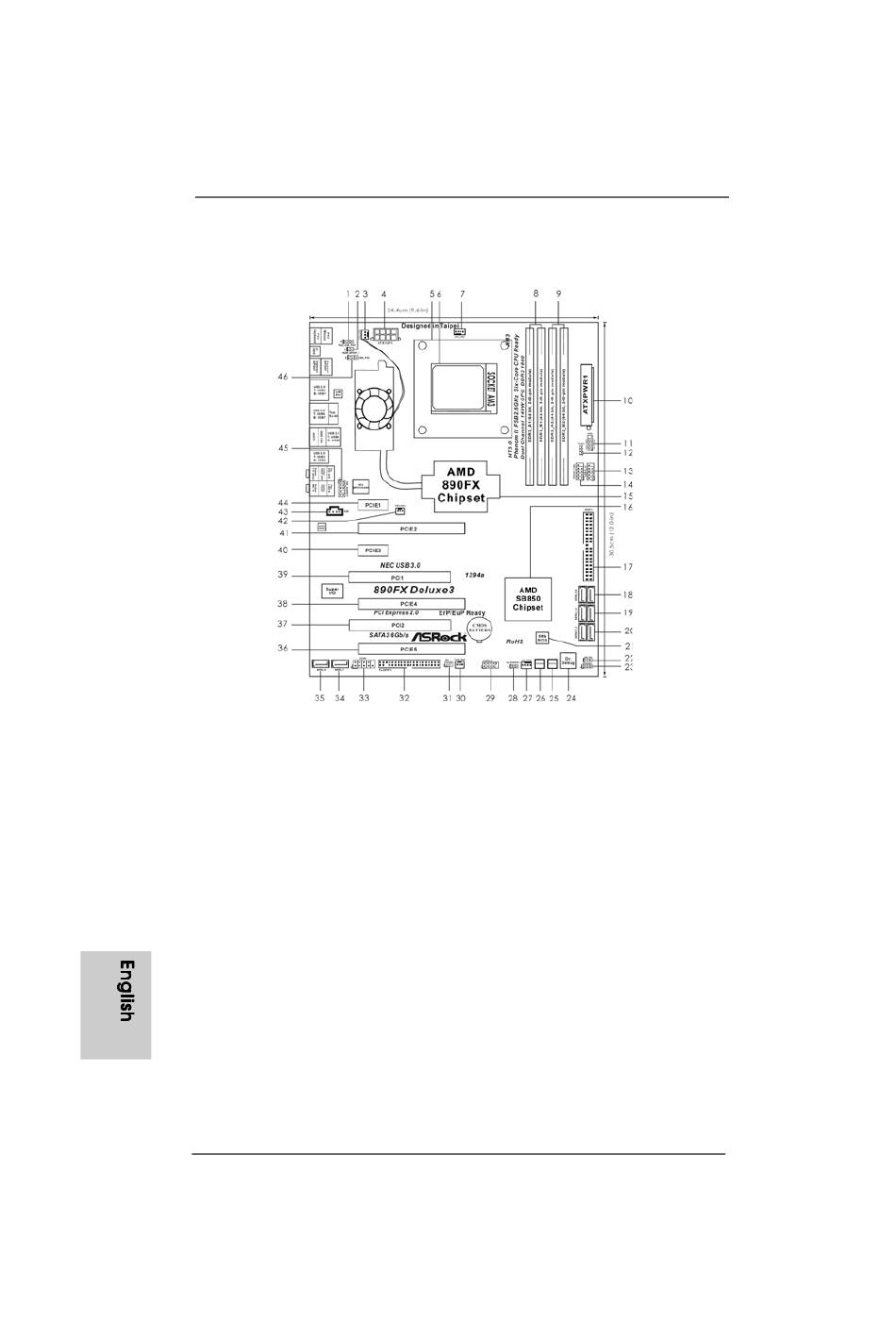

Motherboard Layout
Motherboard Layout
Motherboard Layout
Motherboard Layout
Motherboard Layout
1
PS2_USB_PW1 Jumper
2
HDMI_SPDIF Header (HDMI_SPDIF1, White)
3
Chassis Fan Connector (CHA_FAN2)
4
ATX 12V Power Connector (ATX12V1)
5
CPU Heatsink Retention Module
6
AM3 CPU Socket
7
CPU Fan Connector (CPU_FAN1)
8
2 x 240-pin DDR3 DIMM Slots
(Dual Channel A: DDR3_A1, DDR3_B1; Blue)
9
2 x 240-pin DDR3 DIMM Slots
(Dual Channel B: DDR3_A2, DDR3_B2; White)
10
ATX Power Connector (ATXPWR1)
11
System Panel Header (PANEL1, White)
12
Power LED Header (PLED1)
13
USB 2.0 Header (USB10_11, Blue)
14
Front Panel IEEE 1394 Header
(FRONT_1394, White)
15
Northbridge Controller
16
Southbridge Controller
17
Primary IDE Connector (IDE1, Blue)
18
SATA3 Connector (SATA3_5_6, White)
19
SATA3 Connector (SATA3_3_4, White)
20
SATA3 Connector (SATA3_1_2, White)
21
SPI Flash Memory (8Mb)
22
USB_PW3 Jumper
23
Chassis Speaker Header (SPEAKER 1, White)
2 2 2 2 2
ASRock
24
Dr. Debug (LED)
25
Reset Switch (RSTBTN)
26
Power Switch (PWRBTN)
27
Chassis Fan Connector (CHA_FAN1)
28
Clear CMOS Jumper (CLRCMOS1)
29
USB 2.0 Header (USB8_9, Blue)
30
Chassis Fan Connector (CHA_FAN3)
31
Infrared Module Header (IR1)
32
Floppy Connector (FLOPPY1)
33
Serial Port Connector (COM1)
34
SATA3 Connector (SATA3_7, White)
35
SATA3 Connector (SATA3_8, White)
36
PCI Express 2.0 x16 Slot (PCIE5; White)
37
PCI Slot (PCI2)
38
PCI Express 2.0 x16 Slot (PCIE4; Blue)
39
PCI Slot (PCI1)
40
PCI Express 2.0 x1 Slot (PCIE3; White)
41
PCI Express 2.0 x16 Slot (PCIE2; Blue)
42
Power Fan Connector (PWR_FAN1)
43
Internal Audio Connector: CD1 (Black)
44
PCI Express 2.0 x1 Slot (PCIE1; White)
45
Front Panel Audio Header
(HD_AUDIO1, White)
46
USB_PW2 Jumper
