4.2

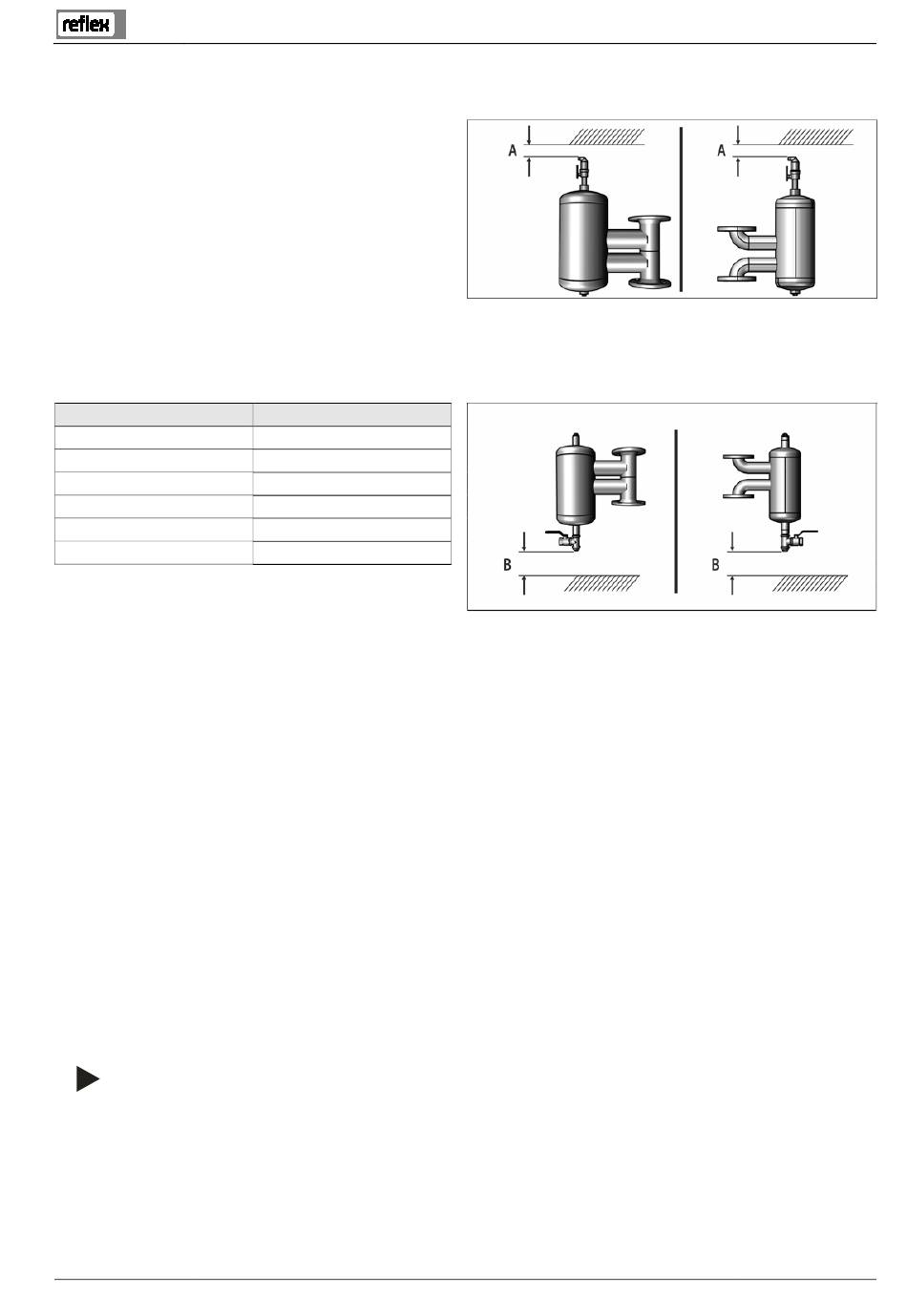

Space requirements

A: Exvoid V
Minimum free space above the top part of the ventilation:
• 50 mm
B: Exdirt V
Minimum free space above the drain cock for installation of an
Exferro magnetic insert
Type
D 50 V
D 65 V
D 80 V
D 100 V
D 125 V
D 150 V
4.3 Exdirt V
• Fit the draw-off tap on the bottom side of the separator. Close the valves.
• Fit the vent plug on the top side of the separator. Ensure the vent plug is always correctly closed, open it for manual venting.
• Installation of the Exferro magnetic insert on the bottom side of the separator:
First insert the Exferro component in the separator, as can be seen in the figure see chapter 5.2.2 "Sludge separator with magnet
insert" on page 13 . Then fit the draw-off tap (supplied with the Exdirt) correctly to the side on the T-piece of the magnetic insert.
Lastly close the valve.
4.4 Exvoid V
• Fit the safety plug on the bottom side of the separator.
• Fit the large vent with 3-way valve bottom part on the top side of the separator. Maintain the large vent freely opened.
Comply with the following instructions:
• To drain the released air or gases (odour, explosive gases), you may connect an additional hose or pipe at the ½" thread of the blow-
off opening.
Note!
The device is now ready for use.
Space requirements [mm]
370
370
370
370
430
430
Reflex Exvoid/Exdirt V — 06.2017
Installation and assembly
English — 11
