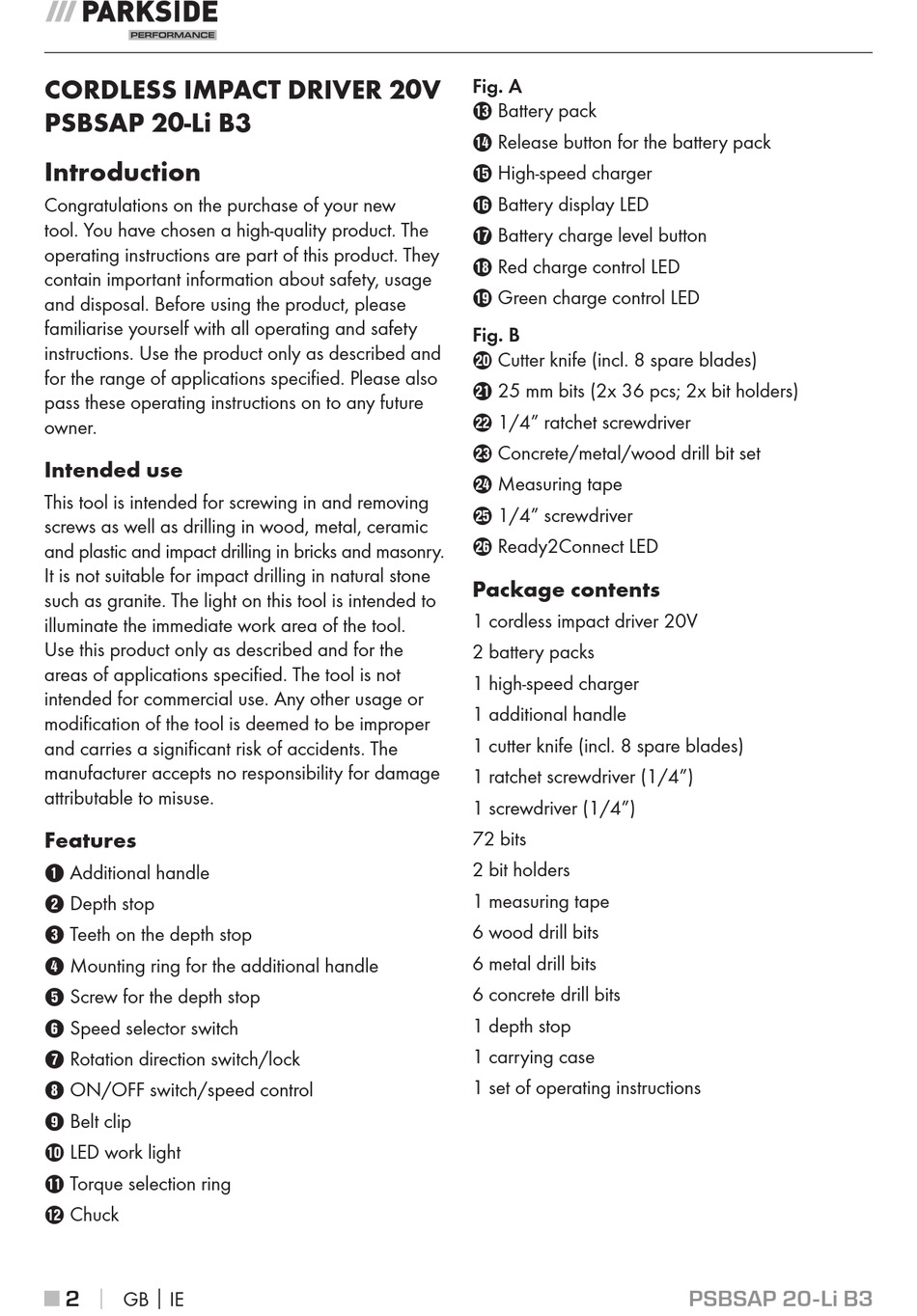

CORDLESS IMPACT DRIVER 20V
PSBSAP 20-Li B3
Introduction
Congratulations on the purchase of your new
tool. You have chosen a high-quality product. The
operating instructions are part of this product. They
contain important information about safety, usage
and disposal. Before using the product, please
familiarise yourself with all operating and safety
instructions. Use the product only as described and
for the range of applications specified. Please also
pass these operating instructions on to any future
owner.
Intended use
This tool is intended for screwing in and removing
screws as well as drilling in wood, metal, ceramic
and plastic and impact drilling in bricks and masonry.
It is not suitable for impact drilling in natural stone
such as granite. The light on this tool is intended to
illuminate the immediate work area of the tool.
Use this product only as described and for the
areas of applications specified. The tool is not
intended for commercial use. Any other usage or
modification of the tool is deemed to be improper
and carries a significant risk of accidents. The
manufacturer accepts no responsibility for damage
attributable to misuse.
Features
1 Additional handle
2 Depth stop
3 Teeth on the depth stop
4 Mounting ring for the additional handle
5 Screw for the depth stop
6 Speed selector switch
7 Rotation direction switch/lock
8 ON/OFF switch/speed control
9 Belt clip
0 LED work light
q Torque selection ring
w Chuck
2
■ │ GB │ IE
Fig. A
e Battery pack
r Release button for the battery pack
t High-speed charger
z Battery display LED
u Battery charge level button
i Red charge control LED
o Green charge control LED
Fig. B
p Cutter knife (incl. 8 spare blades)
a 25 mm bits (2x 36 pcs; 2x bit holders)
s 1/4" ratchet screwdriver
d Concrete/metal/wood drill bit set
f Measuring tape
g 1/4" screwdriver
h Ready2Connect LED
Package contents
1 cordless impact driver 20V
2 battery packs
1 high-speed charger
1 additional handle
1 cutter knife (incl. 8 spare blades)
1 ratchet screwdriver (1/4")
1 screwdriver (1/4")
72 bits
2 bit holders
1 measuring tape
6 wood drill bits
6 metal drill bits
6 concrete drill bits
1 depth stop
1 carrying case
1 set of operating instructions
