CONNECTIONS
Power Supply
1
Connect the device via the enclosed mains cable to a grounded mains socket. Thus the unit is switched on.
2
To switch off the unit, disconnect the power plug.
3
Do not connect the unit to the mains voltage via a dimmer. For a more convenient operation, use a mains
outlet which is switchable.
Note: To supply power to several devices in series, you require a Y-mains adapter cable. (
Matching connection cables with special plugs (Y-mains adapter cables) are optionally available.

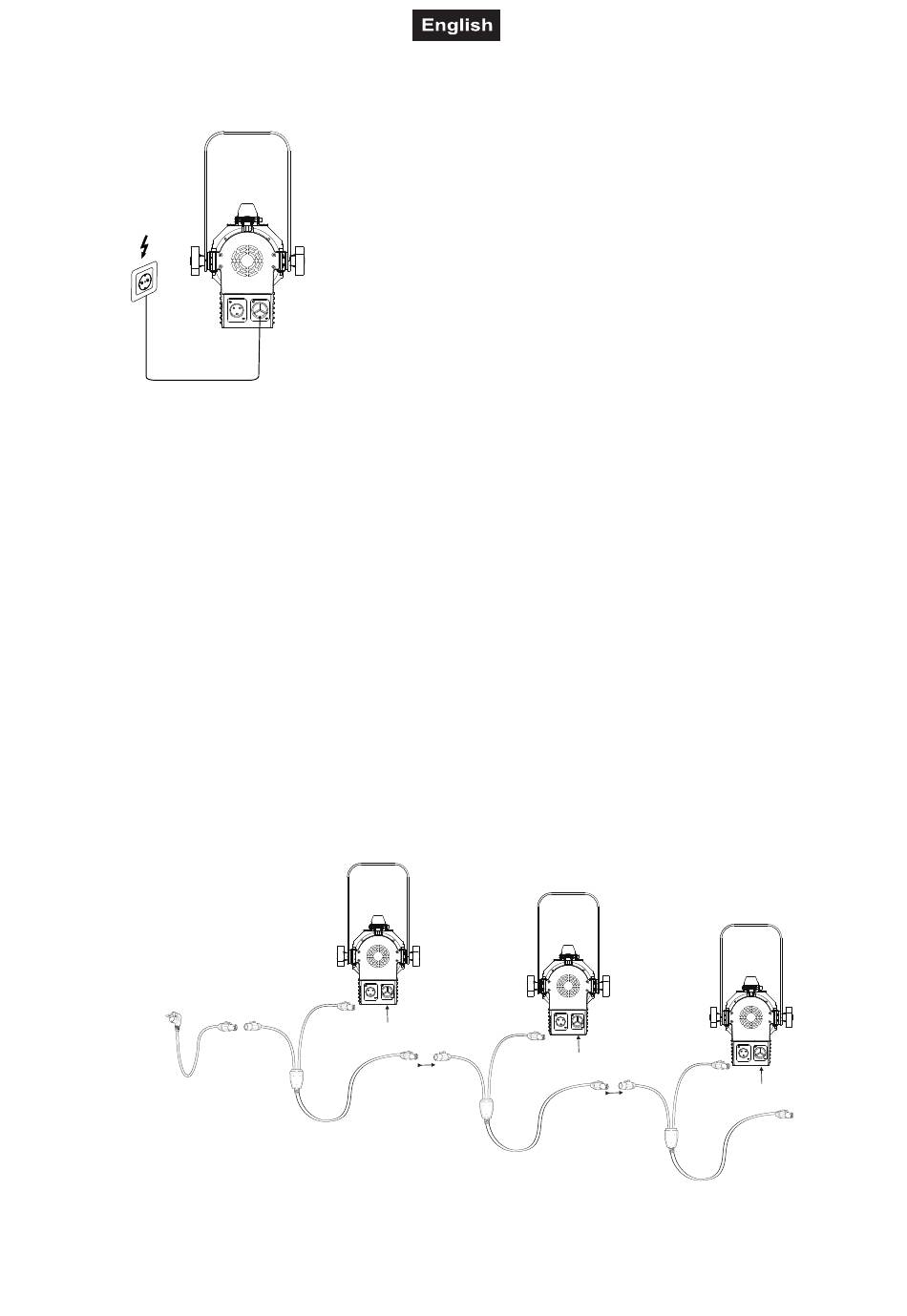

Mains connection for multiple devices via an optionally available Y-mains adapter cable (see graphic):
1
Connect the enclosed power cord (F-socket) to the M-plug of the Y-mains adapter cable.
2
Connect the F-socket of the adapter cable to the device. Now connect the second F-socket of the first
adapter cable to the M-plug of the second adapter cable.
3
In this manner, up to 8 devices can be linked at 230/240 input voltage and up to 4 devices at 110/115 input
voltage.
4
Connect the device via the enclosed mains cable to a grounded mains socket. Thus the unit, or rather the
units, is/are switched on.
5
To switch off the unit, disconnect the power plug.
6
Do not connect the unit to the mains voltage via a dimmer. For a more convenient operation, use a mains
outlet which is switchable.
Note: When not in use, be sure to close the unused plug or socket with the supplied rubber sealing cap to prevent
moisture and dirt from entering.
The device uses an auto-range power supply that accepts input
voltages between 100 und 240 volts. The power connector is designed
according to protection class IP65.
Note: When not in use, make absolutely sure to close the connection
with the rubber sealing cap on the device to prevent moisture and dirt
from penetrating.
F
M
F
F
M
F
21/28
See chapter Accessories
F
M
F
00147165.DOCX, Version 1.0
).
