Download AN1388 Source Code and
CV5200rX.XX.XX hex or CV500rX.XX.XX hex from
www.metcal.com/resources/CV_comm

Connect

Verify COM port of the FT232R USB/
UART in the Windows Device Manager.
The PIC32 Bootloader will only recognize
COM ports 1-9. If needed, change the
assigned COM port to a Port within




Connect

Device Connected

Bootloader Firmware Version 1.0

Load Hex File




Erase-Program-Verify

Disconnect

Updating the firmware from v1.41 or earlier will require a system reset. Contact Metcal technical support
at Support@okinternational.com for system reset instructions

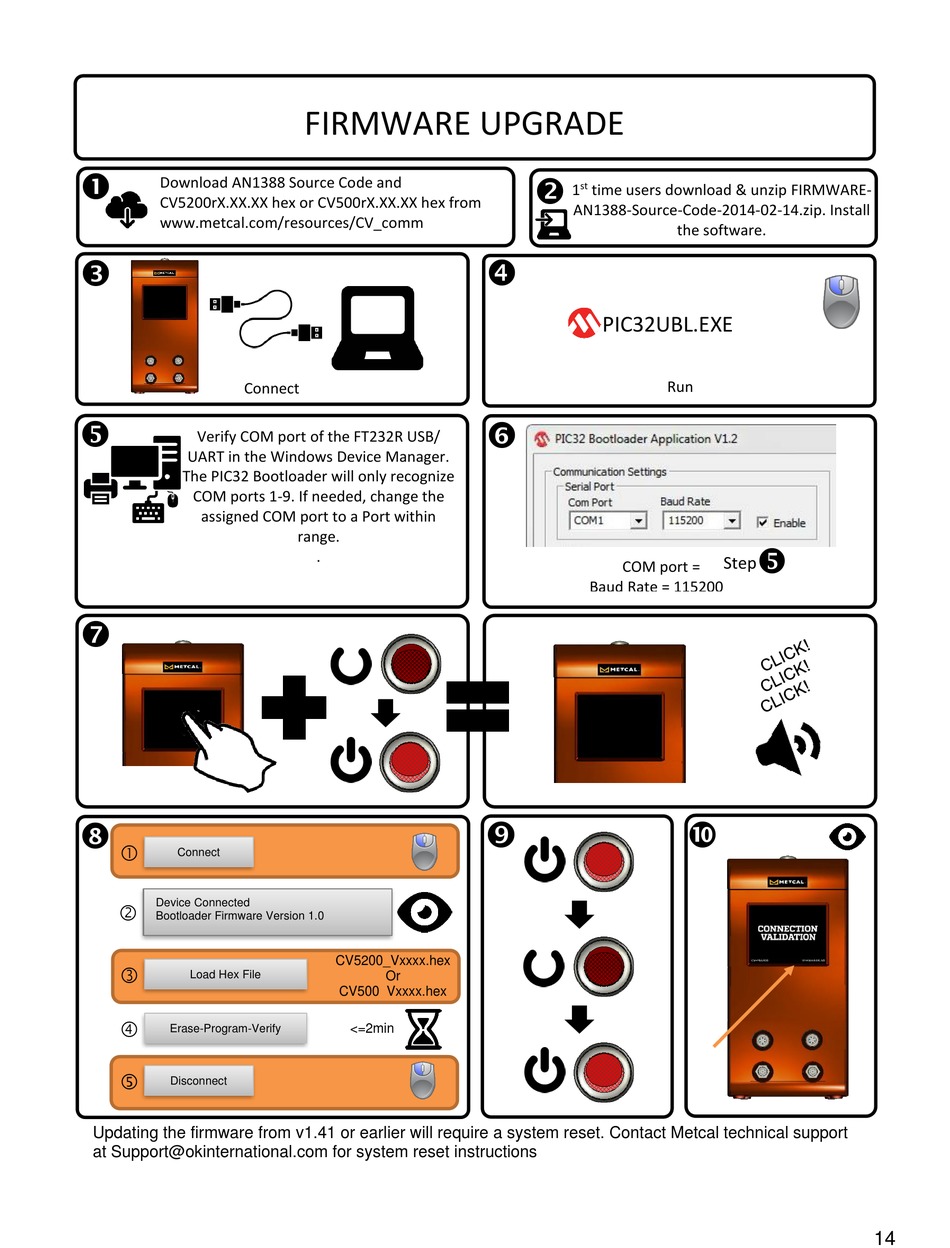

FIRMWARE UPGRADE
range.
.
CV5200_Vxxxx.hex
Or
CV500_Vxxxx.hex
<=2min

st
1 time users download & unzip FIRMWARE-
AN1388-Source-Code-2014-02-14.zip. Install

PIC32UBL.EXE

COM port =
Baud Rate = 115200

the software.
Run
 
Step

14
