STEP 4: OPERATION WITH RESTRICTED TIP LIST/TIP LOCKOUT ENABLED
a. Turn CV-PS5200 power supply ON
b. 4-digit OPERATOR PASSWORD SCREEN should appear
c. enter 4 digit OPERATOR PASSWORD using the [-][+] buttons
d. Enter SOLDER FUNCTION screen;
The 'STAR(S)' symbols on top of [+] dual port button on screen indicate Operator #
(corresponding to operator password used)
(1x 'star' * = Operator 1; 2x 'stars' ** = Operator # 2; 3x stars ***= Operator # 3)
CV TIP ON 'APPROVED'/RESTRICTED TIP LIST:
If CV tip inserted into handle is on the 'approved'/restricted tip list, there will be operator solder
function for single port mode LEFT and RIGHT and DUAL port mode selection.
CV TIP NOT ON 'APPROVED'/RESTRICTED TIP LIST = TIP LOCKOUT
If CV tip inserted into handle is NOT on the 'approved'/restricted tip list, there will be ERROR MSG for
'TIP LOCKOUT' stating 'TIP NOT ALLOWED'
System will CHECK CV tip ID for 'approved' tip part number on SYSTEM START-UP, PORT CHANGE, and
PORT RESET (tip inserted into 'open' hand-piece)

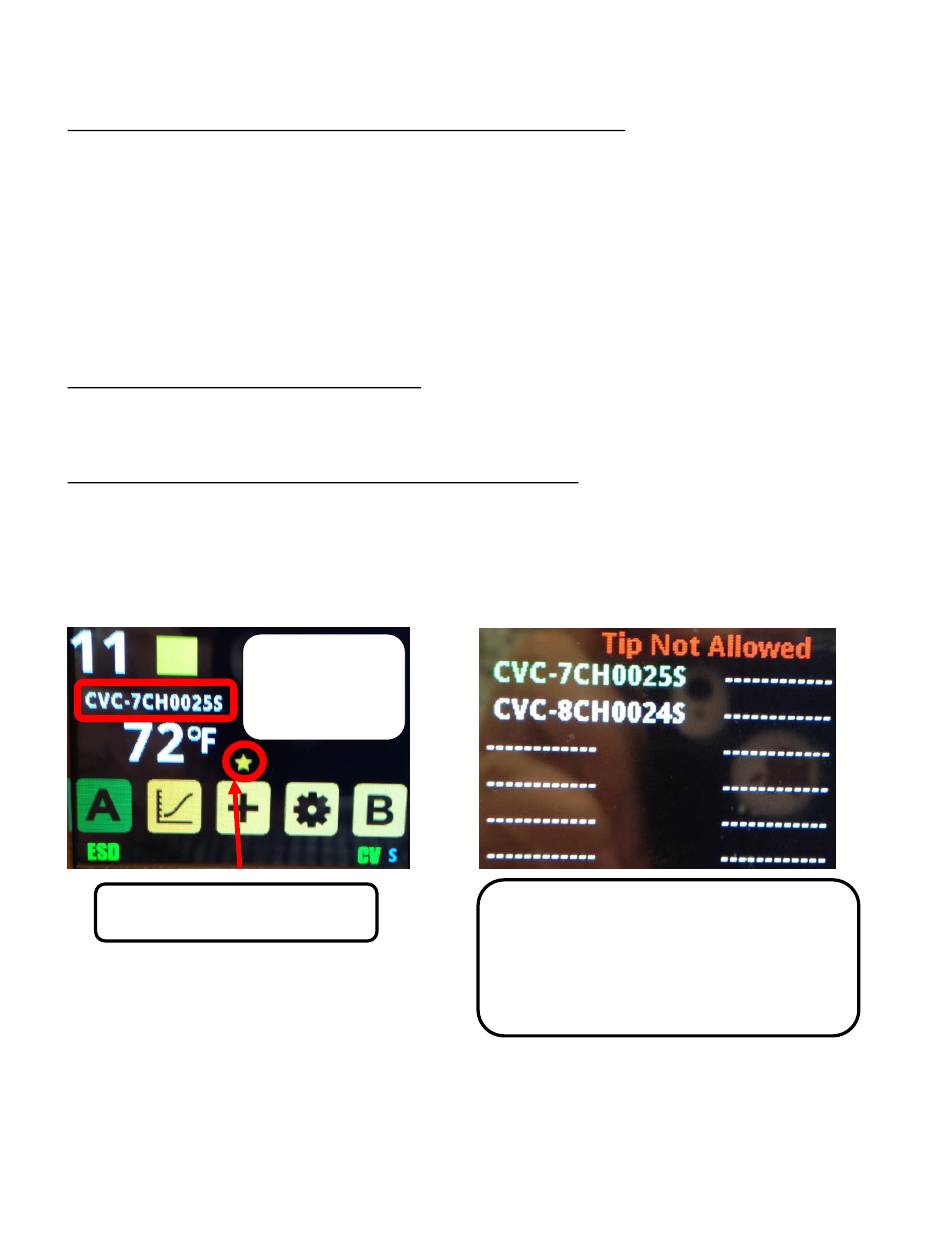

# of 'stars' indicates Operator #
For example, 1x star * = Operator # 1
Entry to solder
function screen
indicates CV tip p/n is
on the'approved list'
CV TIP NOT on approved/restricted tip list will
generate ERROR MSG 'TIP NOT ALLOWED' and
show list of approved tips on the restricted list.
In this example, CVC-7CH0025S and CVC-8CH0024S
are the only 2x tips that are 'approved' to work
with the CV System
