STEP: 4

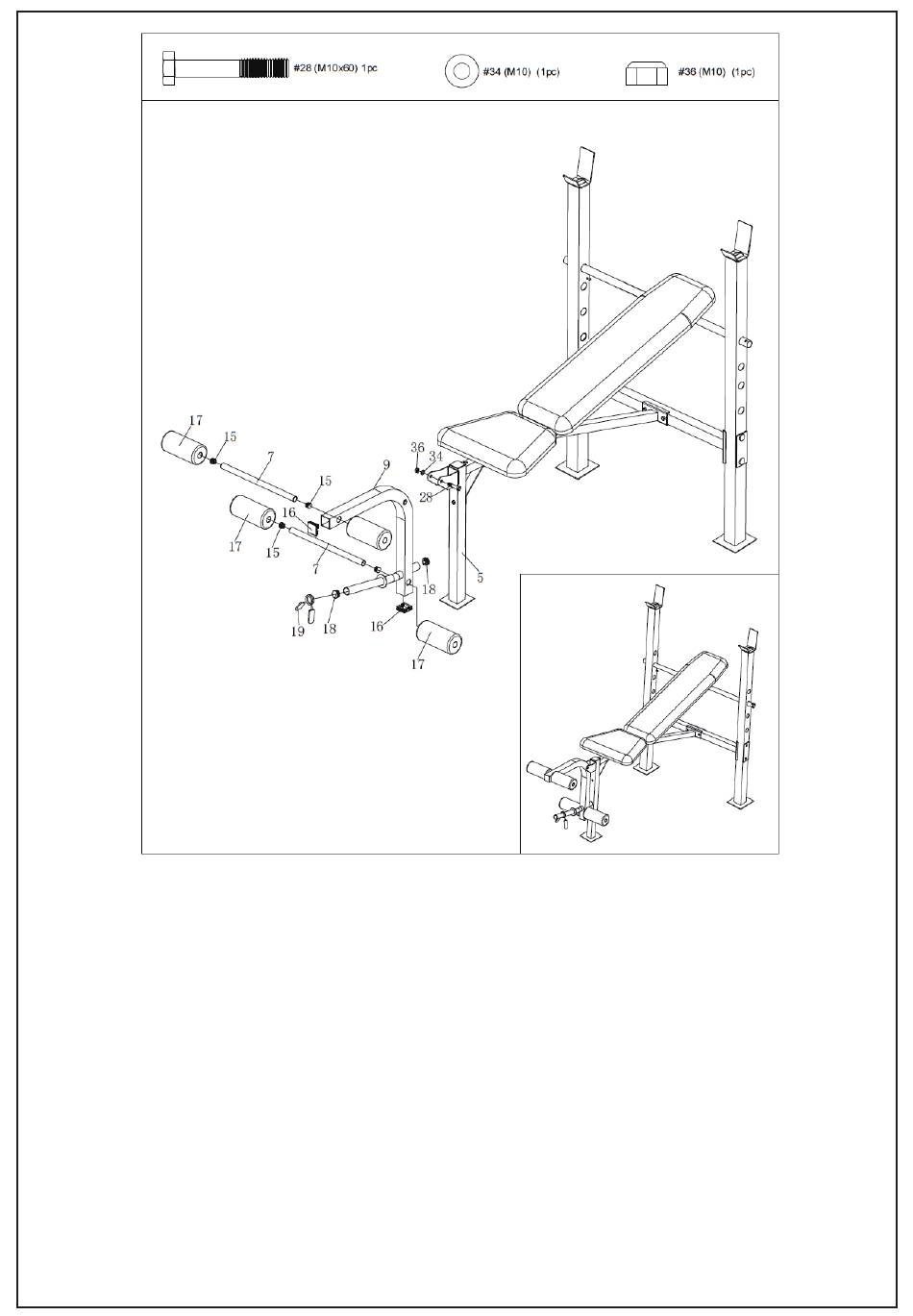

Attach the Leg Developer (No. 9) to the Front Post (No. 5) using 1 Hex Bolt (No. 28), 1 Washer
(No. 34) and 1 Aircraft Nut (No. 36).
Insert the Foam Roller Bars (No. 7) through the holes located on the Leg Developer (No. 9).
Next, attach the Foam Rollers (No. 17) onto each end of the Foam Roller Bars (No. 7).
Lastly, slide the Spring Clip (No. 19) onto the bar located on the bottom of the Leg Developer
(No. 9).
The assembly in complete!
