HOMCOM A91-032 Montageanleitung Seite 7

STEP: 2
NOTE: All nuts for this step should only be hand tightened until assembly is completed.

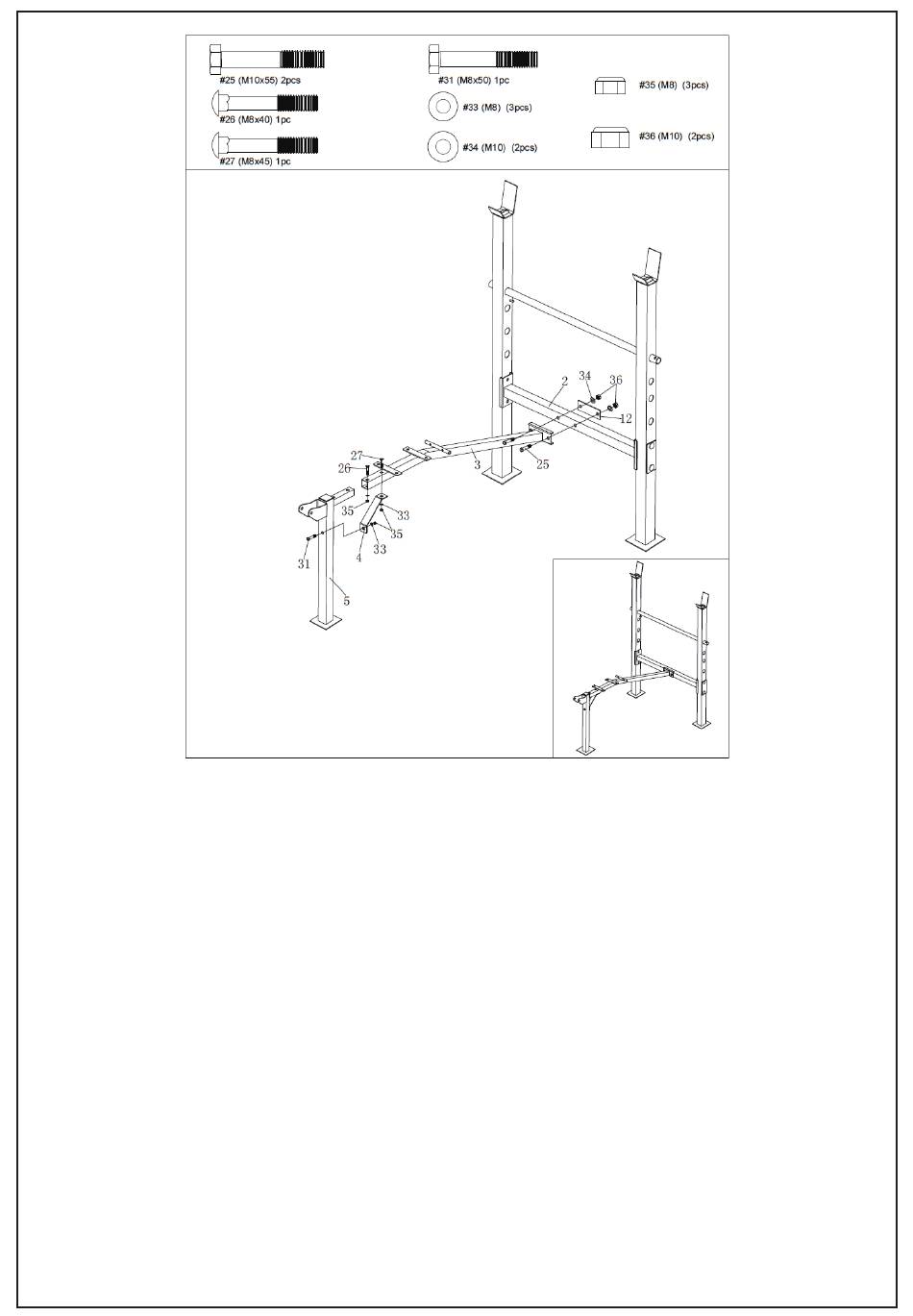

Attach the Main Seat Support (No. 3) to the Cross Brace (No. 2) using 2 Hex Bolts (No. 25), 1
Bracket (No. 12), 2 Washers (No. 34) and 2 Aircraft Nuts (No. 36).
Slide the Front Post (No. 5) into the bottom end of the Main Seat Support (No. 3) and align the
holes. Insert Carriage Bolt (No. 26) through the lower hole on the Main Seat Support (No. 3) and
secure using 1 Washer (No. 33) and 1 Aircraft Nut (No. 35).
Insert Carriage Bolt (No. 27) through the upper hole on the Main Seat Support (No. 3). Fix one
end of the Diagonal Support (No. 4) to the Carriage Bolt (No. 27) using 1 Washer (No. 33) and
1 Aircraft Nut (No. 35).
Fix the other end of the Diagonal Support (No. 4) to the Front Post (No. 5) using 1 Hex Bolt (No.
31), 1 Washer (No. 33) and 1 Aircraft Nut (No. 35).
