4

Getting started

4.1

Power supply

An internal rechargeable LiPo battery is used to power the vibration meter. With a fully charged
battery and depending on the display brightness, a battery life of approx. 15 ... 20 h is possible.
The battery is charged via the USB port at the bottom of the meter, using a USB charger. The
charging process can be shortened by switching off the meter while charging.
The current battery level is displayed in the status bar in the top right corner of the screen. If the
battery charge is insufficient for proper operation of the device, the device automatically powers
off and the display below is shown.
4.2

Preparation

Connect the sensor with the spiral cable to the vibration meter before turning it on and connect
the other end of the cable with the sensor connector of the meter. Tighten the knurled nut to
ensure proper connection.
The meter recognizes the sensor automatically. If no sensor is connected, "No sensor" will be
displayed instead of the reading in the different measuring functions and the corresponding
memory functions are deactivated. This indication also helps diagnosing cable breakage.
In order to turn on the device, press the ON/OFF
the start-up screen is shown. The start-up screen is shown for about 2 seconds and the device
automatically switches to the measurement screen afterwards. The device is turned off by
pressing the ON/OFF
up screen if date and time need to be set:

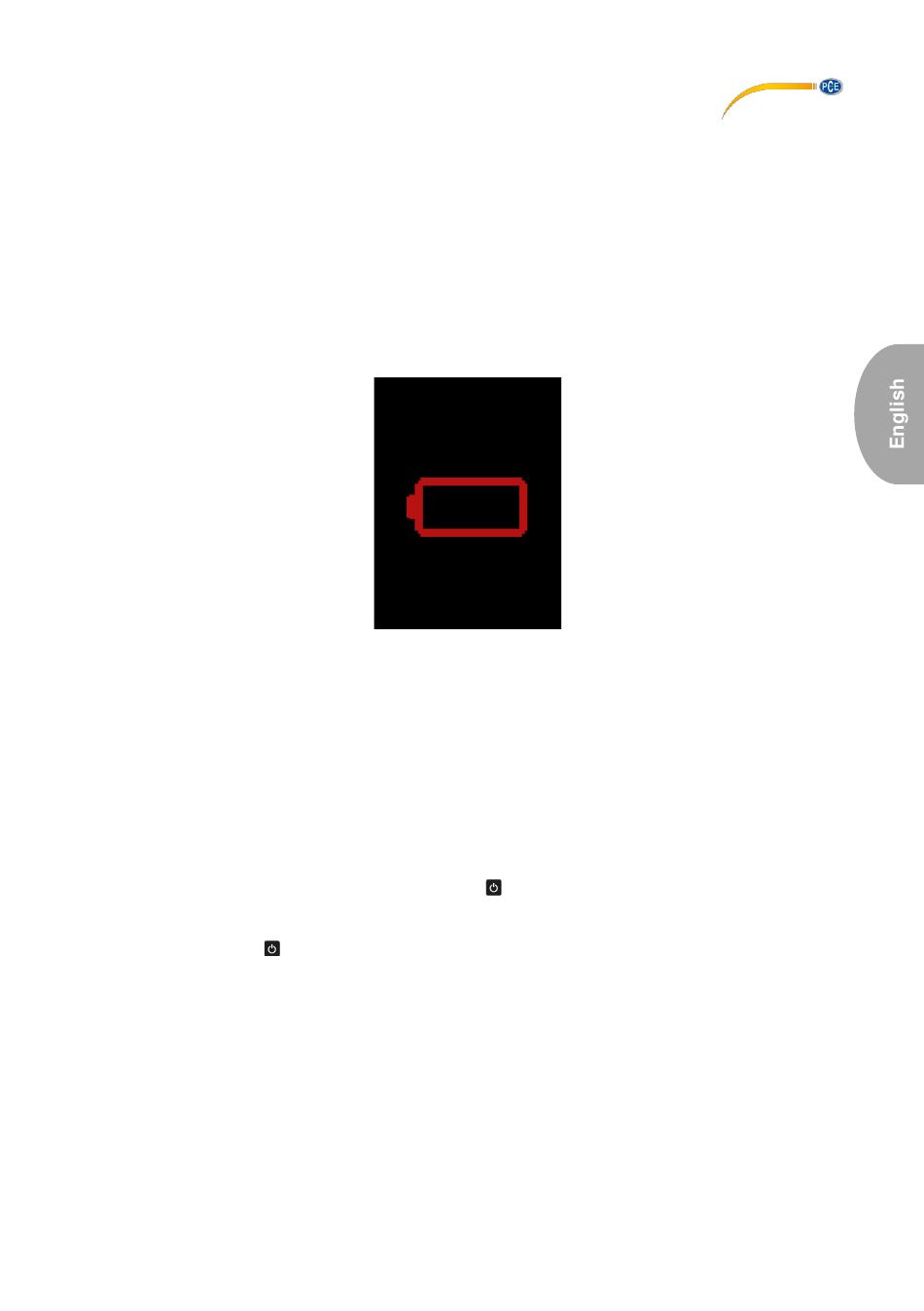

Fig. 2 Automatic power off
key until the screen turns off. The following icon is displayed on the start-
© PCE Instruments
38
key until the screen backlight turns on and
