EN

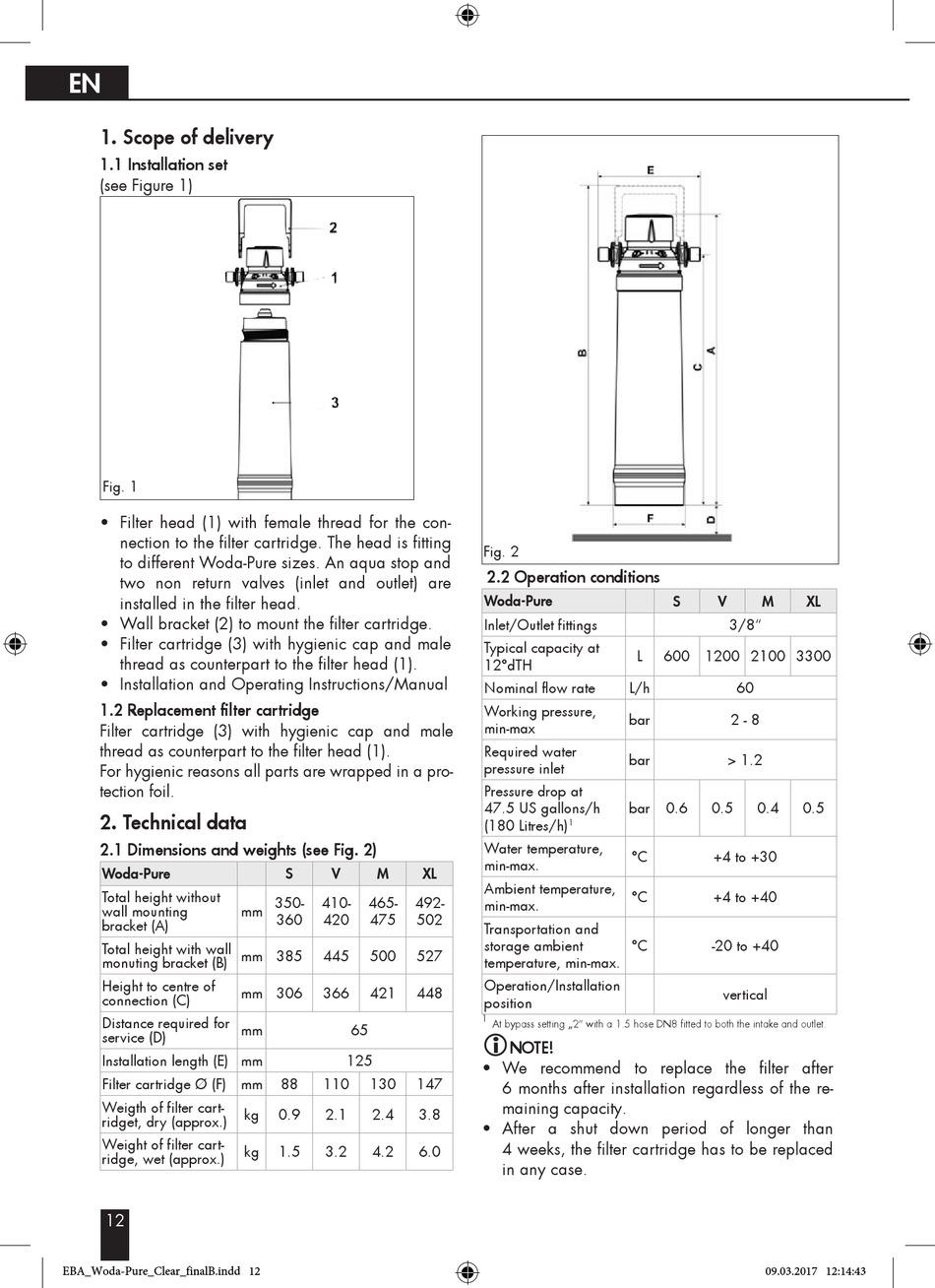

1. Scope of delivery

1.1 Installation set

(see Figure 1)
Fig. 1
• Filter head (1) with female thread for the con-
nection to the filter cartridge. The head is fitting
to different Woda-Pure sizes. An aqua stop and
two non return valves (inlet and outlet) are
installed in the filter head.
• Wall bracket (2) to mount the filter cartridge.
• Filter cartridge (3) with hygienic cap and male
thread as counterpart to the filter head (1).
• Installation and Operating Instructions/Manual

1.2 Replacement filter cartridge

Filter cartridge (3) with hygienic cap and male
thread as counterpart to the filter head (1).
For hygienic reasons all parts are wrapped in a pro-
tection foil.

2. Technical data

2.1 Dimensions and weights (see Fig. 2)

Woda-Pure
Total height without
wall mounting
bracket (A)
Total height with wall
monuting bracket (B)
Height to centre of
connection (C)
Distance required for
service (D)
Installation length (E) mm
Filter cartridge Ø (F) mm
Weigth of filter cart-
ridget, dry (approx.)
Weight of filter cart-
ridge, wet (approx.)
12
EBA_Woda-Pure_Clear_finalB.indd 12
S V M
350- 410- 465- 492-
mm
360 420 475 502
mm 385 445 500 527
mm 306 366 421 448
mm 65
125
88 110 130 147
kg 0.9 2.1 2.4
kg 1.5 3.2 4.2
Fig. 2

2.2 Operation conditions

Woda-Pure
Inlet/Outlet fittings
Typical capacity at
12°dTH
Nominal flow rate
Working pressure,
min-max
Required water
pressure inlet
Pressure drop at
47.5 US gallons/h
(180 Litres/h)
1
Water temperature,
min-max.
XL
Ambient temperature,
min-max.
Transportation and
storage ambient
temperature, min-max.
Operation/Installation
position
1
At bypass setting „2" with a 1.5 hose DN8 fitted to both the intake and outlet.

NOTE!
• We recommend to replace the filter after
6 months after installation regardless of the re-
maining capacity.
3.8
• After a shut down period of longer than
4 weeks, the filter cartridge has to be replaced
6.0
in any case.
S V M
3/8"
L 600 1200 2100 3300
L/h 60
bar 2 - 8
bar > 1.2
bar 0.6 0.5 0.4 0.5
°C +4 to +30
°C +4 to +40
°C -20 to +40
vertical
