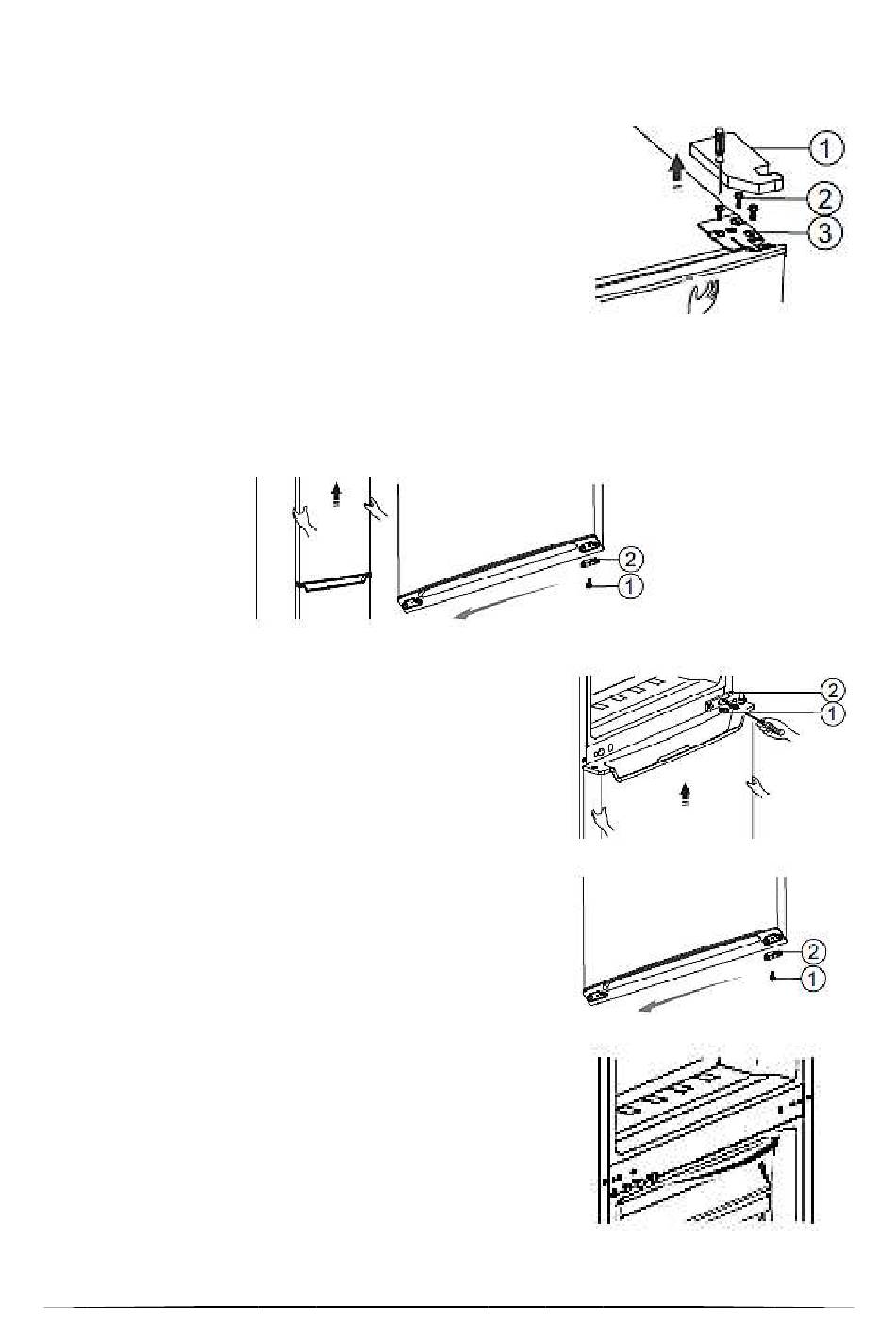

1. Before starting work: Open the upper door and remove the door trays to
protect them from damage.
2. Remove the top hinge cover(1); then remove
the screws (2) and part 3. Put the top hinge
cover (1) into the plastic bag. Put aside the
screws (2) and part 3 for further use. Hold the
upper door during work, otherwise the door
can be damaged.
3. Remove the upper door. Place the door on a soft base with the panel up.
Unscrew the screws (1) and remove part 2. Then install part 2 on the opposite
side using the screws (1).
4. Unscrew the screws (1) of the middle hinge (2)
and remove the middle hinge; then remove the
lower door.
5. Place the door on a soft base with the panel up.
Unscrew the screws (1) and remove part 2.
Then install part 2 on the opposite side using
the screws (1).
6. Change the covers of the screw holes from the
left to the right side.
