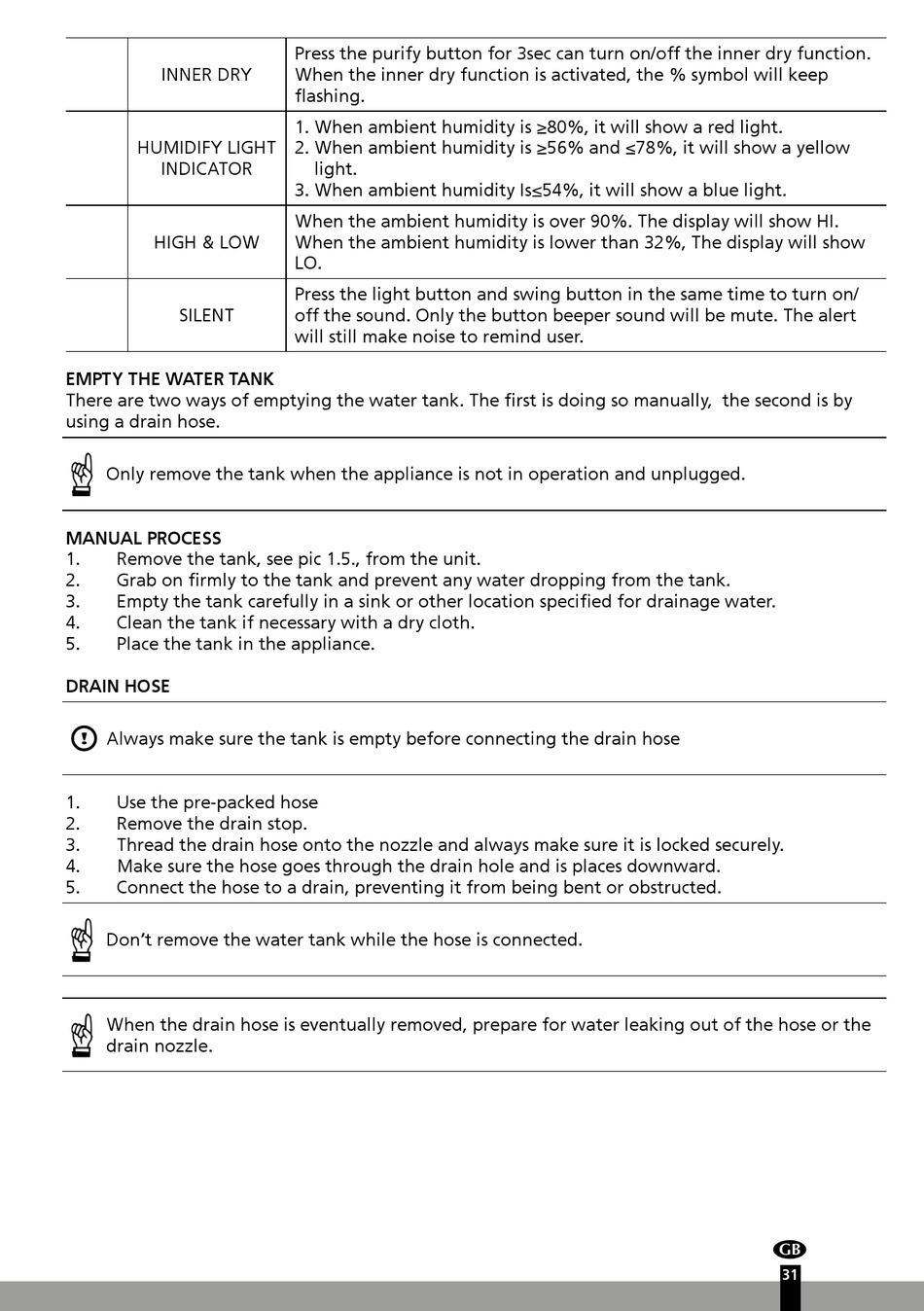

Qlima D 820 A Smart Bedienungsanleitung Seite 31

INNER DRY
HUMIDIFY LIGHT
INDICATOR
HIGH & LOW
SILENT
EMPTY THE WATER TANK
There are two ways of emptying the water tank. The first is doing so manually, the second is by
using a drain hose.
Only remove the tank when the appliance is not in operation and unplugged.
MANUAL PROCESS
1. Remove the tank, see pic 1.5., from the unit.
2. Grab on firmly to the tank and prevent any water dropping from the tank.
3. Empty the tank carefully in a sink or other location specified for drainage water.
4. Clean the tank if necessary with a dry cloth.
5. Place the tank in the appliance.
DRAIN HOSE
Always make sure the tank is empty before connecting the drain hose
1. Use the pre-packed hose
2. Remove the drain stop.
3. Thread the drain hose onto the nozzle and always make sure it is locked securely.
4. Make sure the hose goes through the drain hole and is places downward.
5. Connect the hose to a drain, preventing it from being bent or obstructed.
Don't remove the water tank while the hose is connected.
When the drain hose is eventually removed, prepare for water leaking out of the hose or the
drain nozzle.
Press the purify button for 3sec can turn on/off the inner dry function.
When the inner dry function is activated, the % symbol will keep
flashing.
1. When ambient humidity is ≥80%, it will show a red light.
2. When ambient humidity is ≥56% and ≤78%, it will show a yellow
light.
3. When ambient humidity Is≤54%, it will show a blue light.
When the ambient humidity is over 90%. The display will show HI.
When the ambient humidity is lower than 32%, The display will show
LO.
Press the light button and swing button in the same time to turn on/
off the sound. Only the button beeper sound will be mute. The alert
will still make noise to remind user.
4
31
