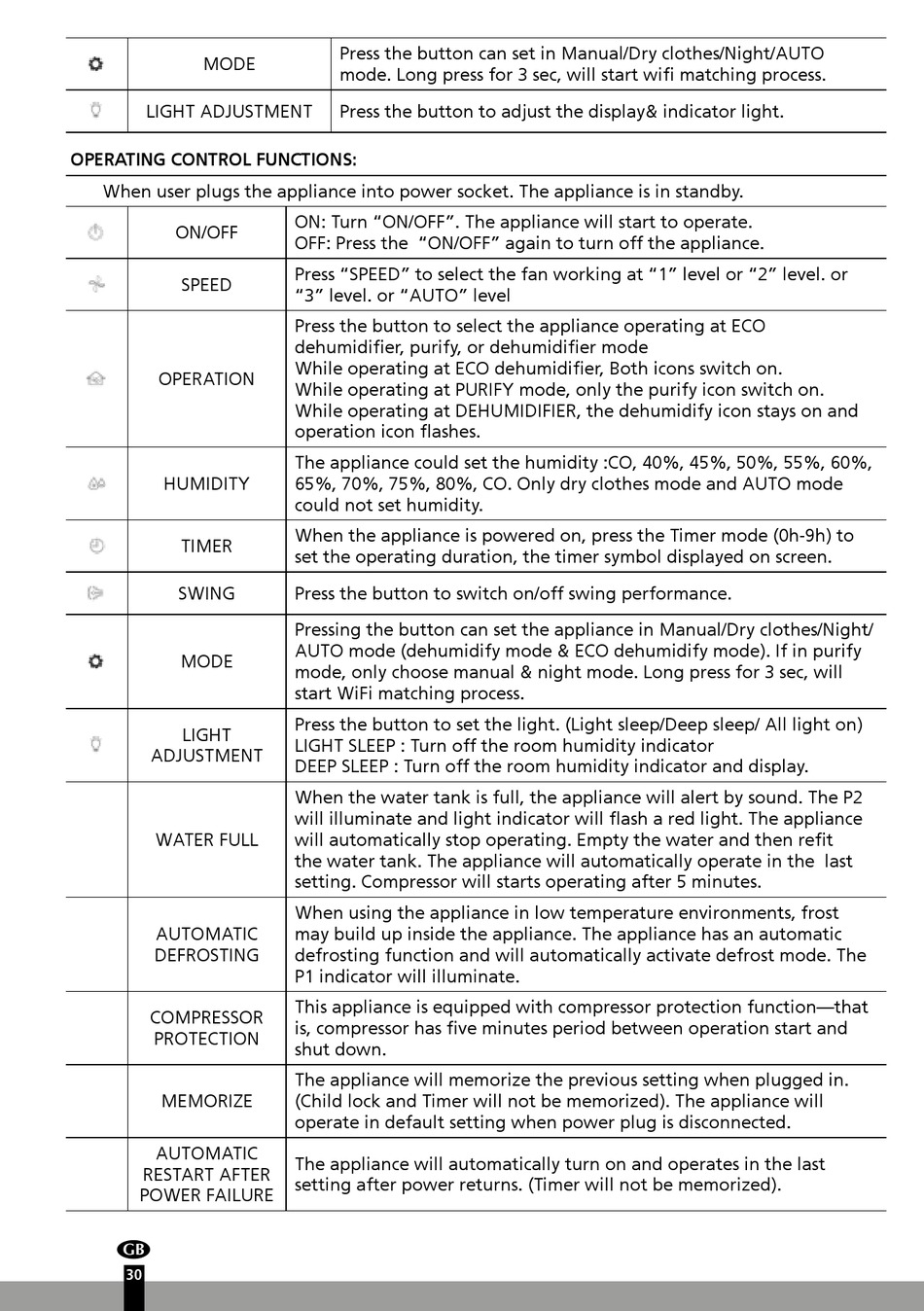

Qlima D 820 A Smart Bedienungsanleitung Seite 30

MODE
LIGHT ADJUSTMENT
OPERATING CONTROL FUNCTIONS:
When user plugs the appliance into power socket. The appliance is in standby.
ON/OFF
SPEED
OPERATION
HUMIDITY
TIMER
SWING
MODE
LIGHT
ADJUSTMENT
WATER FULL
AUTOMATIC
DEFROSTING
COMPRESSOR
PROTECTION
MEMORIZE
AUTOMATIC
RESTART AFTER
POWER FAILURE
4
30
Press the button can set in Manual/Dry clothes/Night/AUTO
mode. Long press for 3 sec, will start wifi matching process.
Press the button to adjust the display& indicator light.
ON: Turn "ON/OFF". The appliance will start to operate.
OFF: Press the "ON/OFF" again to turn off the appliance.
Press "SPEED" to select the fan working at "1" level or "2" level. or
"3" level. or "AUTO" level
Press the button to select the appliance operating at ECO
dehumidifier, purify, or dehumidifier mode
While operating at ECO dehumidifier, Both icons switch on.
While operating at PURIFY mode, only the purify icon switch on.
While operating at DEHUMIDIFIER, the dehumidify icon stays on and
operation icon flashes.
The appliance could set the humidity :CO, 40%, 45%, 50%, 55%, 60%,
65%, 70%, 75%, 80%, CO. Only dry clothes mode and AUTO mode
could not set humidity.
When the appliance is powered on, press the Timer mode (0h-9h) to
set the operating duration, the timer symbol displayed on screen.
Press the button to switch on/off swing performance.
Pressing the button can set the appliance in Manual/Dry clothes/Night/
AUTO mode (dehumidify mode & ECO dehumidify mode). If in purify
mode, only choose manual & night mode. Long press for 3 sec, will
start WiFi matching process.
Press the button to set the light. (Light sleep/Deep sleep/ All light on)
LIGHT SLEEP : Turn off the room humidity indicator
DEEP SLEEP : Turn off the room humidity indicator and display.
When the water tank is full, the appliance will alert by sound. The P2
will illuminate and light indicator will flash a red light. The appliance
will automatically stop operating. Empty the water and then refit
the water tank. The appliance will automatically operate in the last
setting. Compressor will starts operating after 5 minutes.
When using the appliance in low temperature environments, frost
may build up inside the appliance. The appliance has an automatic
defrosting function and will automatically activate defrost mode. The
P1 indicator will illuminate.
This appliance is equipped with compressor protection function—that
is, compressor has five minutes period between operation start and
shut down.
The appliance will memorize the previous setting when plugged in.
(Child lock and Timer will not be memorized). The appliance will
operate in default setting when power plug is disconnected.
The appliance will automatically turn on and operates in the last
setting after power returns. (Timer will not be memorized).
