OPERATION

The device has two operating modes. It can be operated via DIP Switches or it can be run in DMX-controlled
mode.
After you connected the spot to the mains, the EUROLITE LED FX Par-100 RGB DMX Spot starts running.

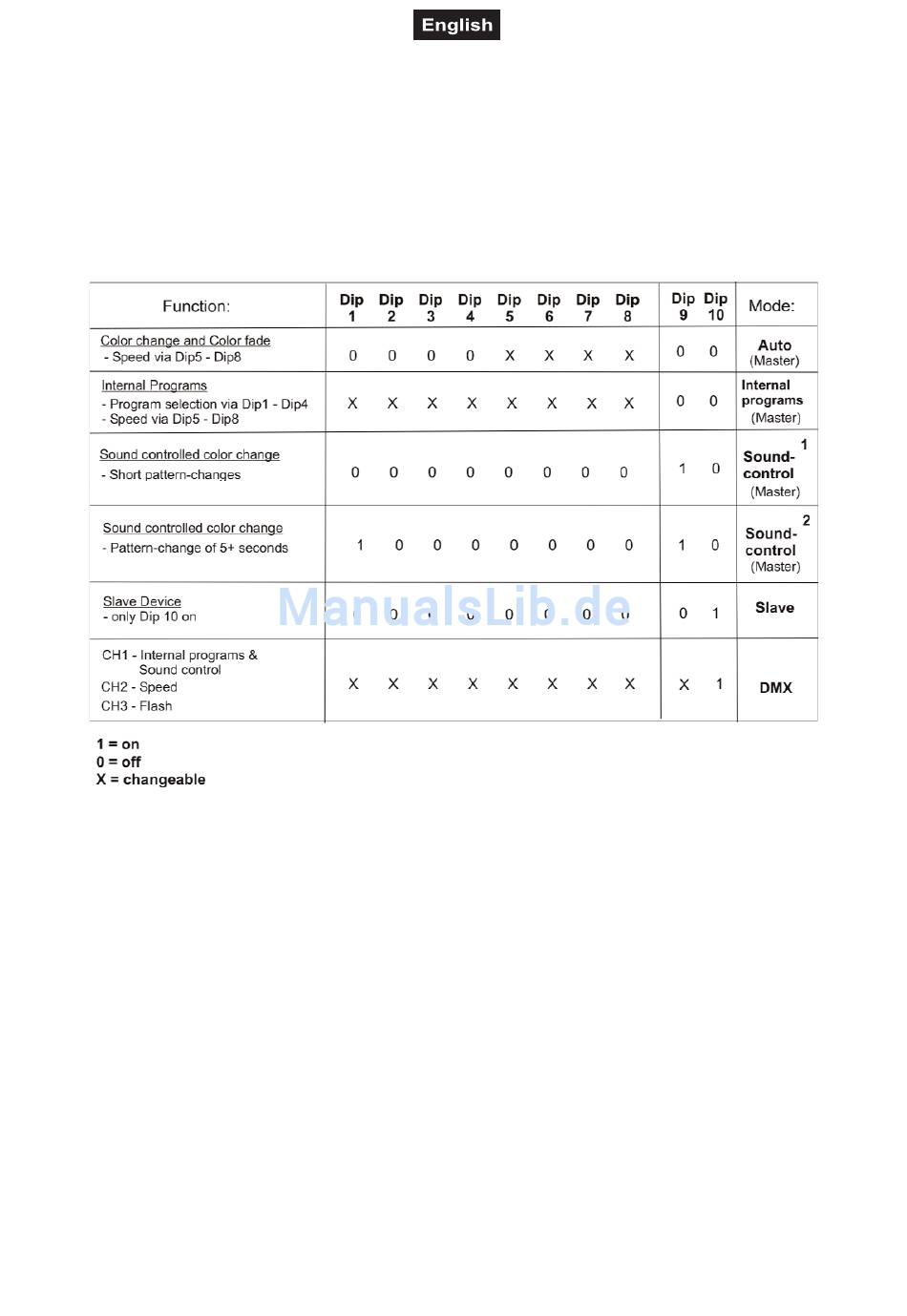

OPERATION VIA DIP SWITCHES

Auto Mode
In order to select Color change and Color fade, set DIP switch 1 to 4 and 9 and 10 to OFF.
Speed can be adjusted via DIP switches 5 to 8.

Internal Programs

In order to select the internal programs, set DIP switch 9 and 10 to OFF.
Programs can be selected via DIP switches 1 to 4.
Speed can be adjusted via DIP switches 5 to 8.
Sound Control 1 – short pattern change
In order to select Sound controlled pattern change, set DIP switch 9 to ON and DIP switch 10 to OFF.
Sound Control 2 – pattern change of 5+ seconds
In order to select Sound controlled pattern change, set DIP switch 1 and 9 to ON and DIP switch 10 to
OFF.
