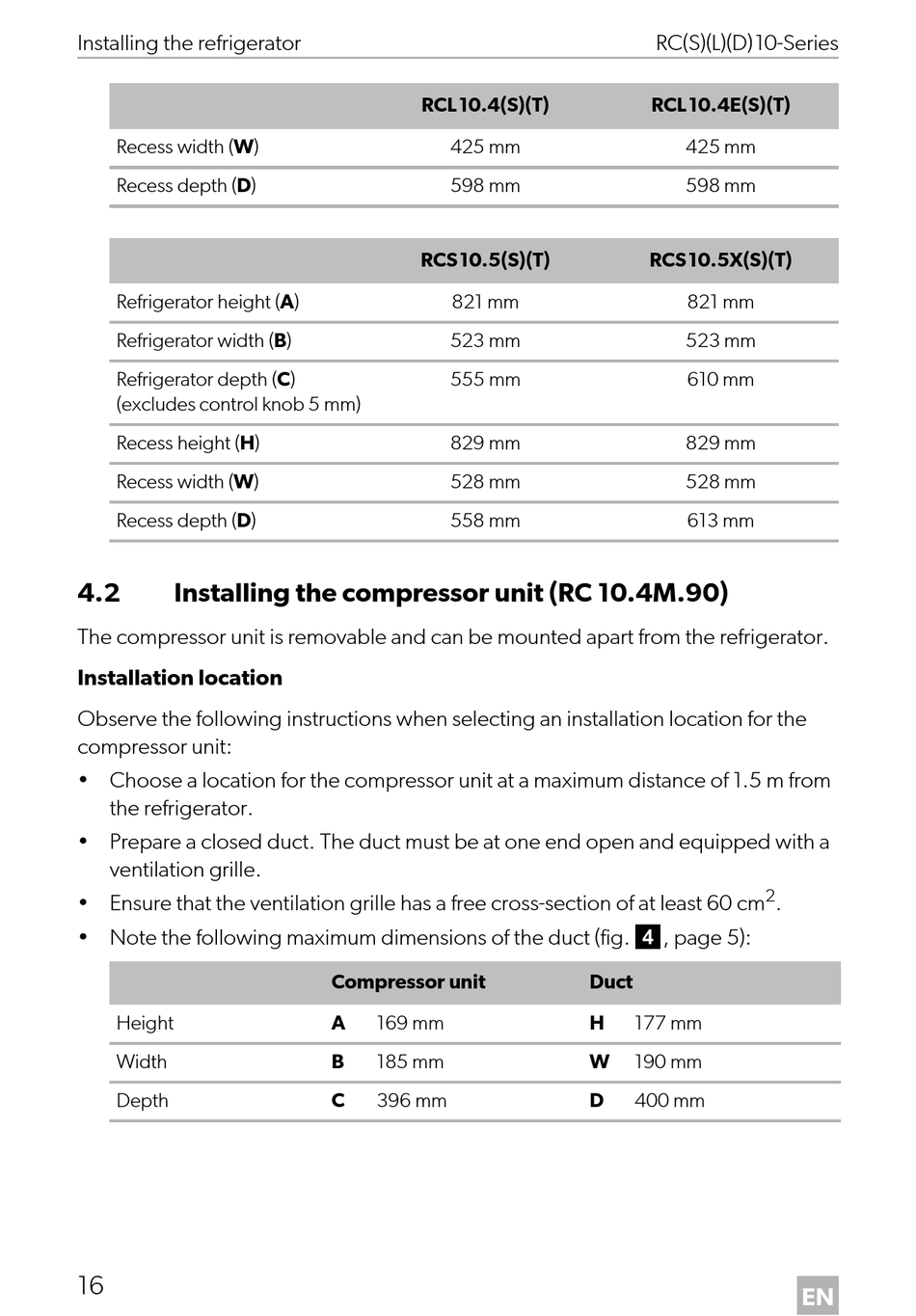

Dometic RC10.4S.70 Montageanleitung Seite 16

Installing the refrigerator
Recess width (W)
Recess depth (D)
Refrigerator height (A)
Refrigerator width (B)
Refrigerator depth (C)
(excludes control knob 5 mm)
Recess height (H)
Recess width (W)
Recess depth (D)
4.2 Installing the compressor unit (RC 10.4M.90)
The compressor unit is removable and can be mounted apart from the refrigerator.
Installation location
Observe the following instructions when selecting an installation location for the
compressor unit:
• Choose a location for the compressor unit at a maximum distance of 1.5 m from
the refrigerator.
• Prepare a closed duct. The duct must be at one end open and equipped with a
ventilation grille.
• Ensure that the ventilation grille has a free cross-section of at least 60 cm
• Note the following maximum dimensions of the duct (fig. 4, page 5):
Height
Width
Depth
16
RCL10.4(S)(T)
425 mm
598 mm
RCS10.5(S)(T)
821 mm
523 mm
555 mm
829 mm
528 mm
558 mm
Compressor unit
A 169 mm
B 185 mm
C 396 mm
RC(S)(L)(D)10-Series
RCL10.4E(S)(T)
425 mm
598 mm
RCS10.5X(S)(T)
821 mm
523 mm
610 mm
829 mm
528 mm
613 mm
Duct
H 177 mm
W 190 mm
D 400 mm
