4. Hardware Installation

Please observe the following installation instructions. Since there are major differences between
PCs, we can only give you general instructions for connecting the EX-61002. If anything is unclear,
please refer to the operating instructions of your computer system.

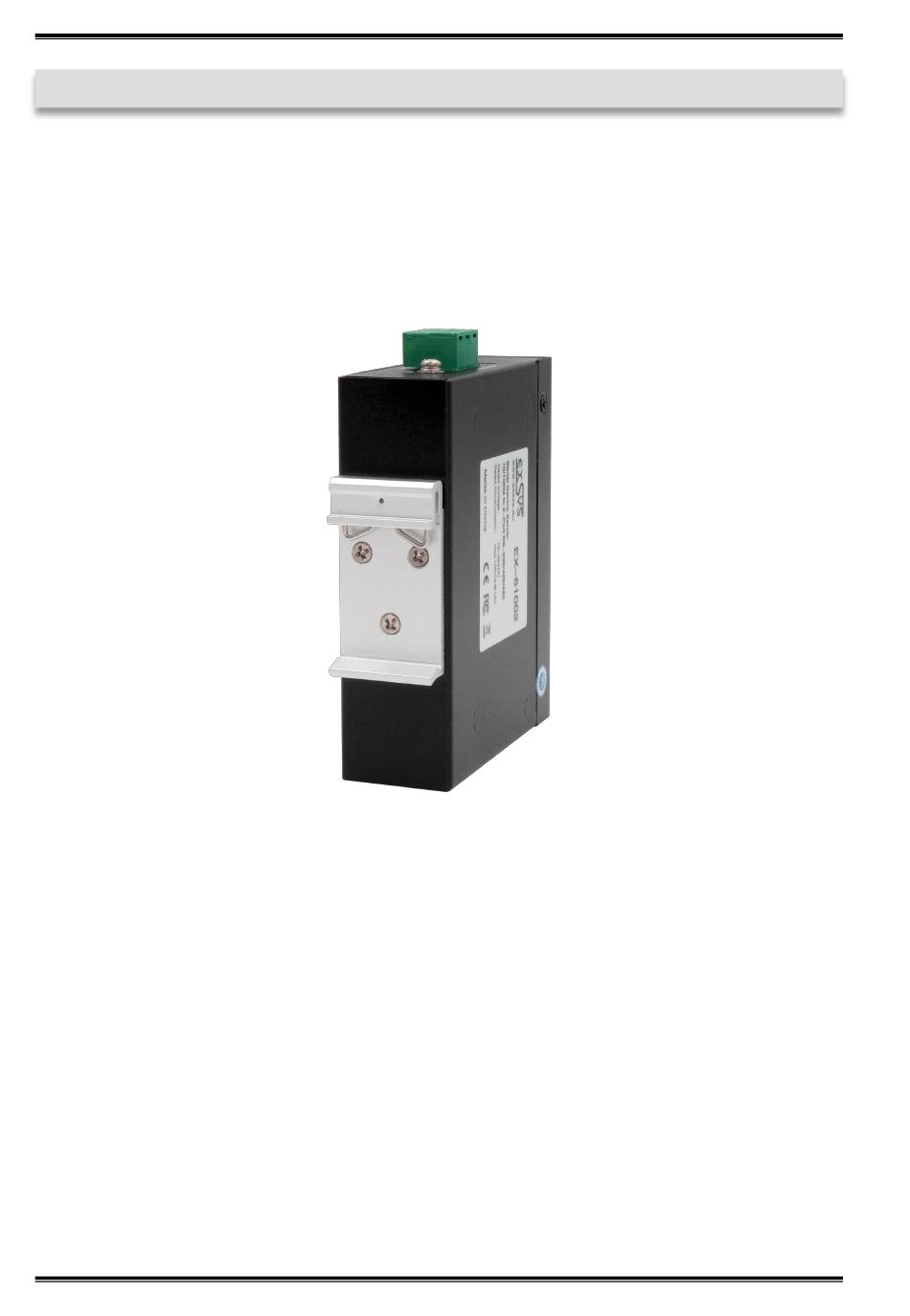

1. Install the EX-61002 on a 35 mm DIN-Rail.
2. Connect your serial devices to the device server. If necessary, use the adapter cables
supplied.
3. Connect the EX-61002 to your network using an RJ45 Ethernet CAT.5/6 patch cable.
4. Now connect the 12V power supply included in the scope of delivery to the 12V socket
provided for this purpose on the EX-61002. Alternatively, you can connect the EX-61002
device server to an existing DIN-Rail power supply unit 12-48 VDC via the terminal block.
5. The LED display shows the status of the device server (see page 17).
