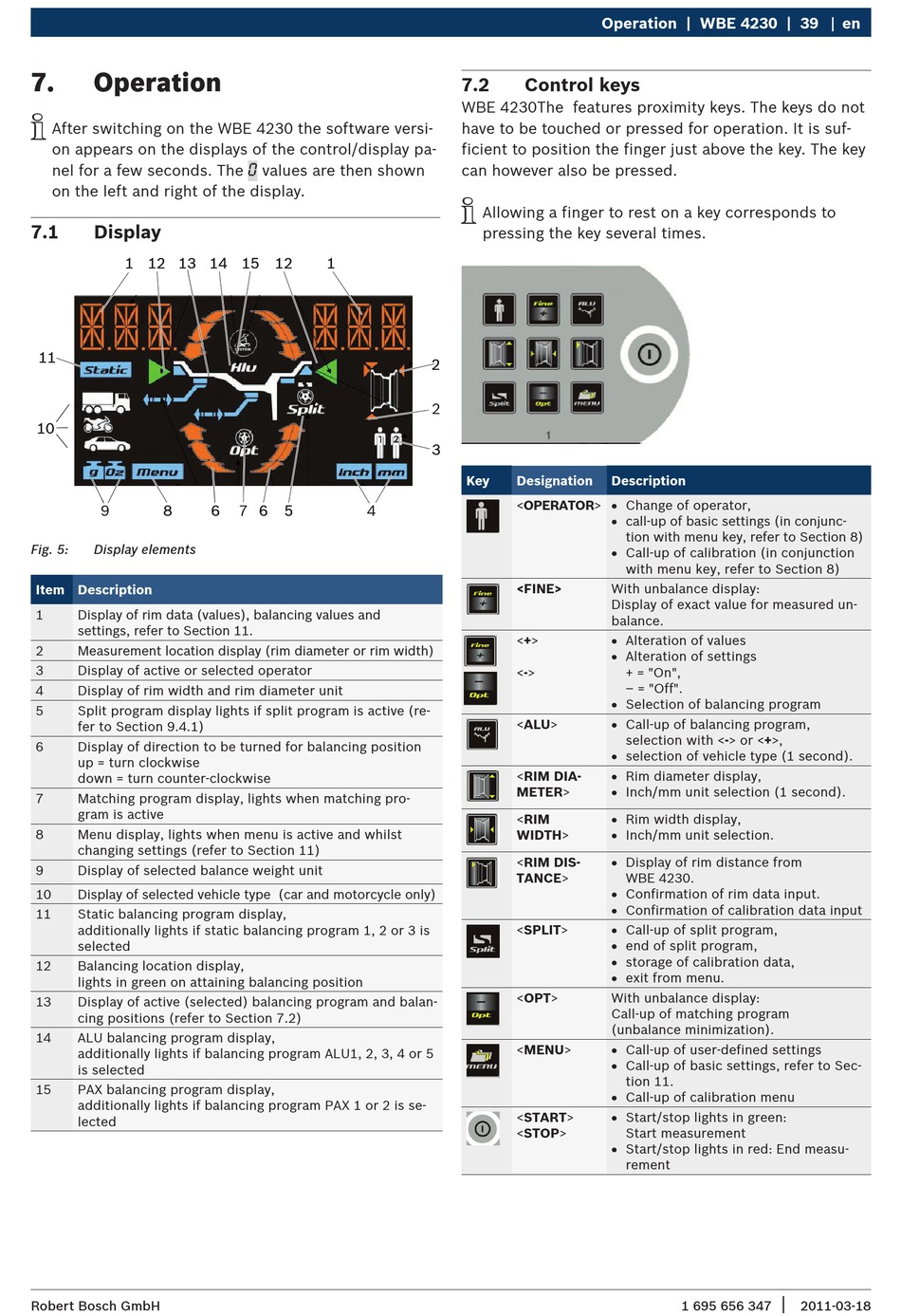

7.

Operation

i
After switching on the WBE 4230 the software versi-
on appears on the displays of the control/display pa-
nel for a few seconds. The
on the left and right of the display.
7.1

Display

1 1 12 12 13 13
11 11
1 1
10 10
9 8 8
Fig. 5: Display elements
Item Description
1 Display of rim data (values), balancing values and
settings, refer to Section 11.
2 Measurement location display (rim diameter or rim width)
3 Display of active or selected operator
4 Display of rim width and rim diameter unit
5 Split program display lights if split program is active (re-
fer to Section 9.4.1)
6 Display of direction to be turned for balancing position
up = turn clockwise
down = turn counter-clockwise
7 Matching program display, lights when matching pro-
gram is active
8 Menu display, lights when menu is active and whilst
changing settings (refer to Section 11)
9 Display of selected balance weight unit
10 Display of selected vehicle type (car and motorcycle only)
11 Static balancing program display,
additionally lights if static balancing program 1, 2 or 3 is
selected
12 Balancing location display,
lights in green on attaining balancing position
13 Display of active (selected) balancing program and balan-
cing positions (refer to Section 7.2)
14 ALU balancing program display,
additionally lights if balancing program ALU1, 2, 3, 4 or 5
is selected
15 PAX balancing program display,
additionally lights if balancing program PAX 1 or 2 is se-
lected
Robert Bosch GmbH
values are then shown
0
14 14 15 15 12 12 1 1
9 9
9 9 1 1
6 6 7 6 6 5 5 4
7.2

Control keys

WBE 4230The features proximity keys. The keys do not
have to be touched or pressed for operation. It is suf-
ficient to position the finger just above the key. The key
can however also be pressed.
i
Allowing a finger to rest on a key corresponds to
pressing the key several times.
2 2
1 1
2
3 3
Key Designation
<OPERATOR> R Change of operator,
<FINE>
<+>
<->
<ALU>
<RIM DIA-
METER>
<RIM
WIDTH>
<RIM DIS-
TANCE>
<SPLIT>
<OPT>
<MENU>
<START>
<STOP>
Operation | WBE 4230 | 39
Description
R call-up of basic settings (in conjunc-
tion with menu key, refer to Section 8)
R Call-up of calibration (in conjunction
with menu key, refer to Section 8)
With unbalance display:
Display of exact value for measured un-
balance.
R Alteration of values
R Alteration of settings
+ = "On",
– = "Off".
R Selection of balancing program
R Call-up of balancing program,
selection with <-> or <+>,
R selection of vehicle type (1 second).
R Rim diameter display,
R Inch/mm unit selection (1 second).
R Rim width display,
R Inch/mm unit selection.
R Display of rim distance from
WBE 4230.
R Confirmation of rim data input.
R Confirmation of calibration data input
R Call-up of split program,
R end of split program,
R storage of calibration data,
R exit from menu.
With unbalance display:
Call-up of matching program
(unbalance minimization).
R Call-up of user-defined settings
R Call-up of basic settings, refer to Sec-
tion 11.
R Call-up of calibration menu
R Start/stop lights in green:
Start measurement
R Start/stop lights in red: End measu-
rement
1 695 656 347
en
|
2011-03-18
