WBE 4230

15
16
14
13

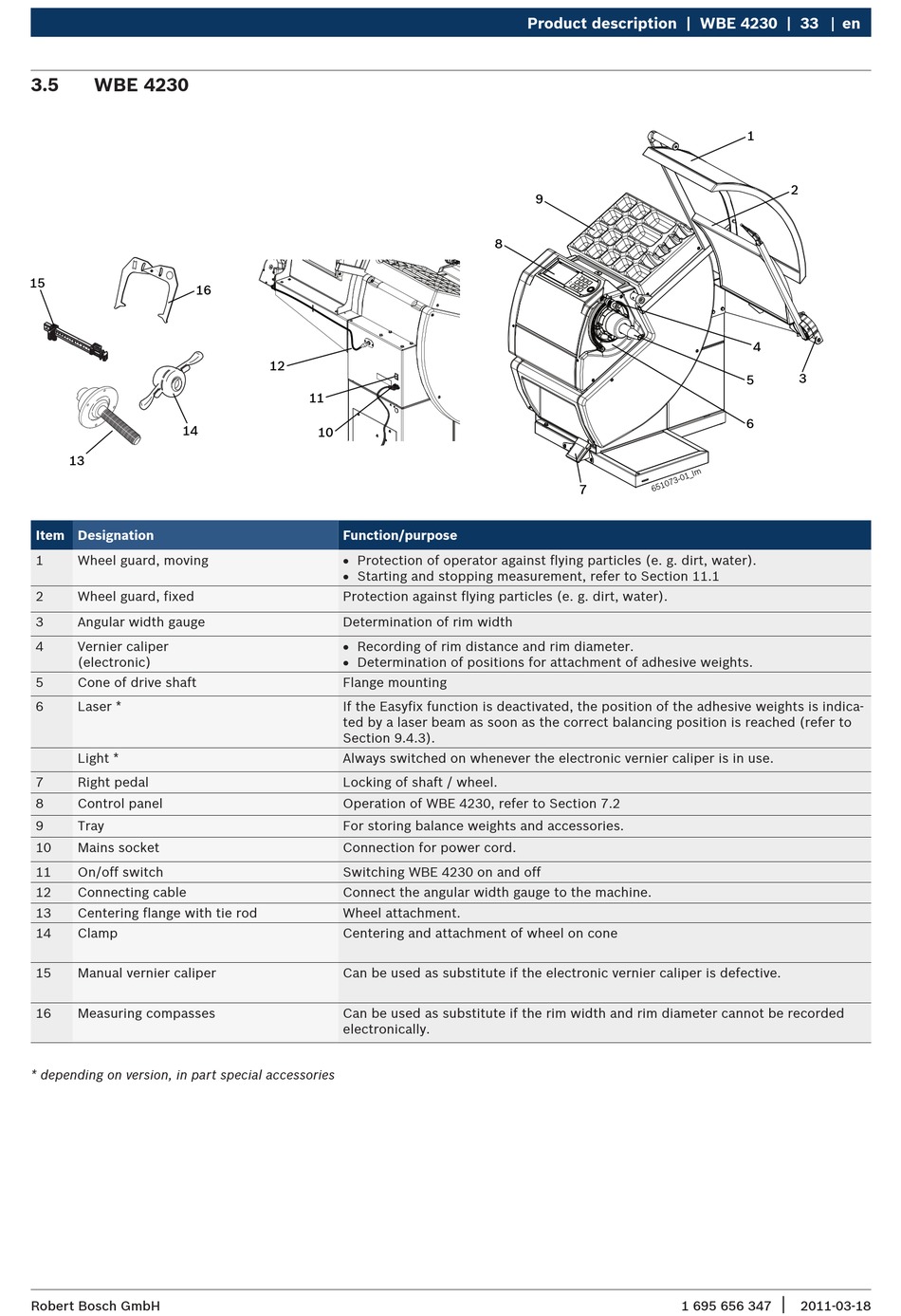

Item Designation
1 Wheel guard, moving
2 Wheel guard, fixed
3 Angular width gauge
4 Vernier caliper
(electronic)
5 Cone of drive shaft
6 Laser *
Light *
7 Right pedal
8 Control panel
9 Tray
10 Mains socket
11 On/off switch
12 Connecting cable
13 Centering flange with tie rod
14 Clamp
15 Manual vernier caliper
16 Measuring compasses
* depending on version, in part special accessories
Robert Bosch GmbH
12
11
10
Function/purpose
R Protection of operator against flying particles (e. g. dirt, water).
R Starting and stopping measurement, refer to Section 11.1
Protection against flying particles (e. g. dirt, water).
Determination of rim width
R Recording of rim distance and rim diameter.
R Determination of positions for attachment of adhesive weights.
Flange mounting
If the Easyfix function is deactivated, the position of the adhesive weights is indica-
ted by a laser beam as soon as the correct balancing position is reached (refer to
Section 9.4.3).
Always switched on whenever the electronic vernier caliper is in use.
Locking of shaft / wheel.
Operation of WBE 4230, refer to Section 7.2
For storing balance weights and accessories.
Connection for power cord.
Switching WBE 4230 on and off
Connect the angular width gauge to the machine.
Wheel attachment.
Centering and attachment of wheel on cone
Can be used as substitute if the electronic vernier caliper is defective.
Can be used as substitute if the rim width and rim diameter cannot be recorded
electronically.
Product description | WBE 4230 | 33
