4.5

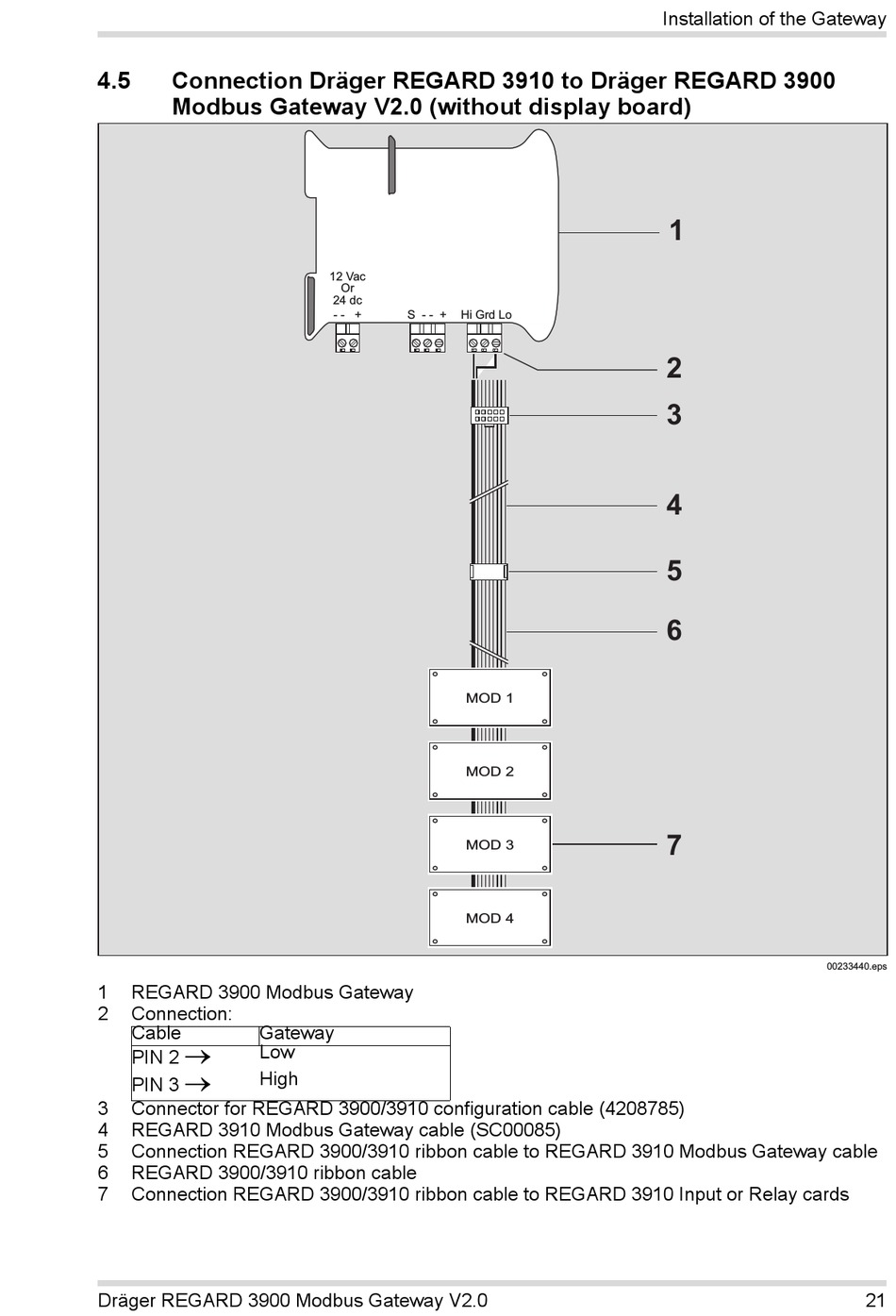

Connection Dräger REGARD 3910 to Dräger REGARD 3900
Modbus Gateway V2.0 (without display board)
1
REGARD 3900 Modbus Gateway
2
Connection:
Cable
Gateway
Low
PIN 2
High
PIN 3
3
Connector for REGARD 3900/3910 configuration cable (4208785)
4
REGARD 3910 Modbus Gateway cable (SC00085)
5
Connection REGARD 3900/3910 ribbon cable to REGARD 3910 Modbus Gateway cable
6
REGARD 3900/3910 ribbon cable
7
Connection REGARD 3900/3910 ribbon cable to REGARD 3910 Input or Relay cards
Dräger REGARD 3900 Modbus Gateway V2.0
12 Vac
Or
24 dc
- - +
S - - +
Hi Grd Lo
MOD 1
MOD 2
MOD 3
MOD 4
Installation of the Gateway
1
2
3
4
5
6
7
00233440.eps
21
