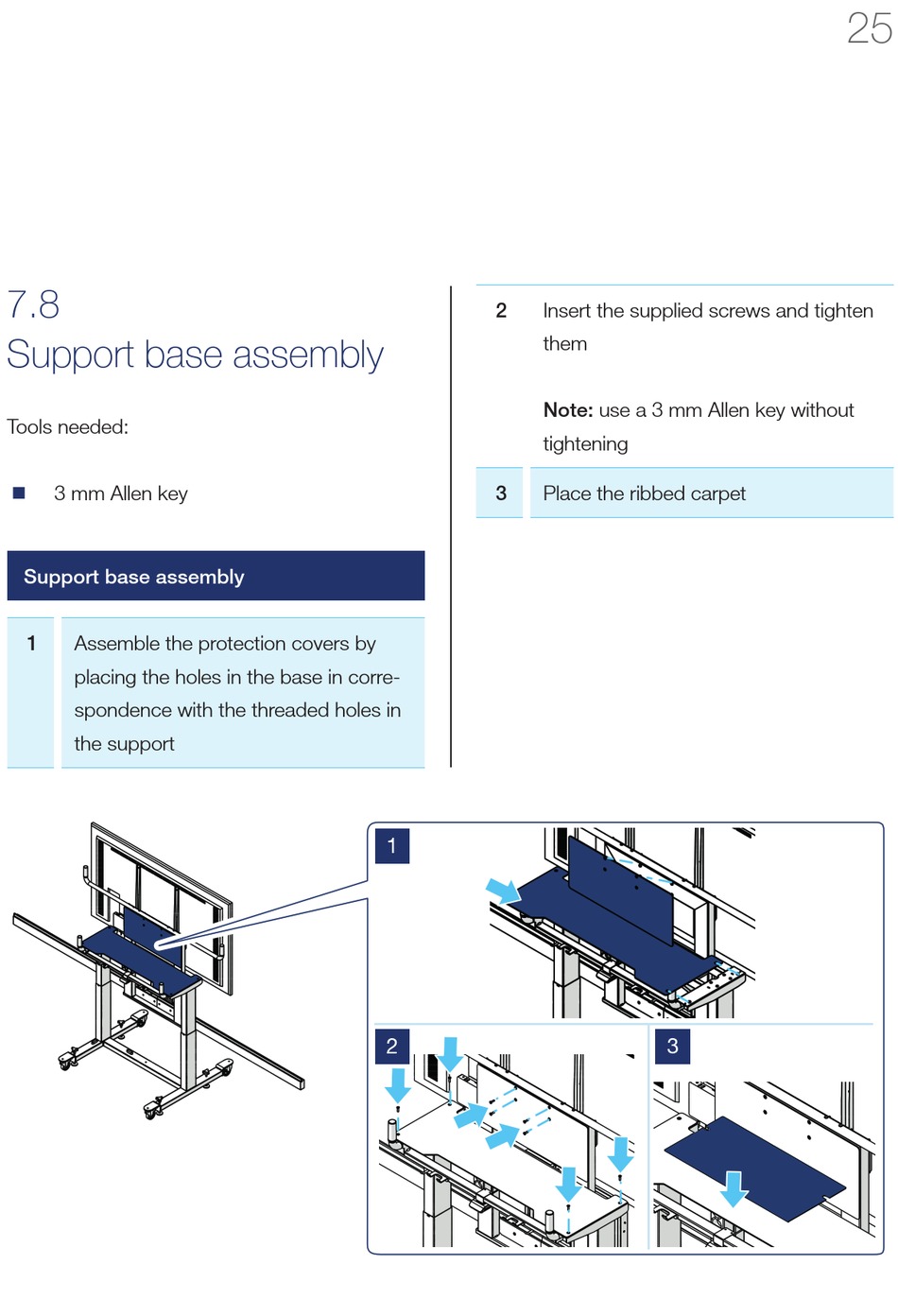

7.8

Support base assembly

Tools needed:
3 mm Allen key
n
Support base assembly
1
Assemble the protection covers by
placing the holes in the base in corre-
spondence with the threaded holes in
the support
Insert the supplied screws and tighten
2
them
Note: use a 3 mm Allen key without
tightening
3
Place the ribbed carpet
1
2
3
