Digital ADAS
Installation manual

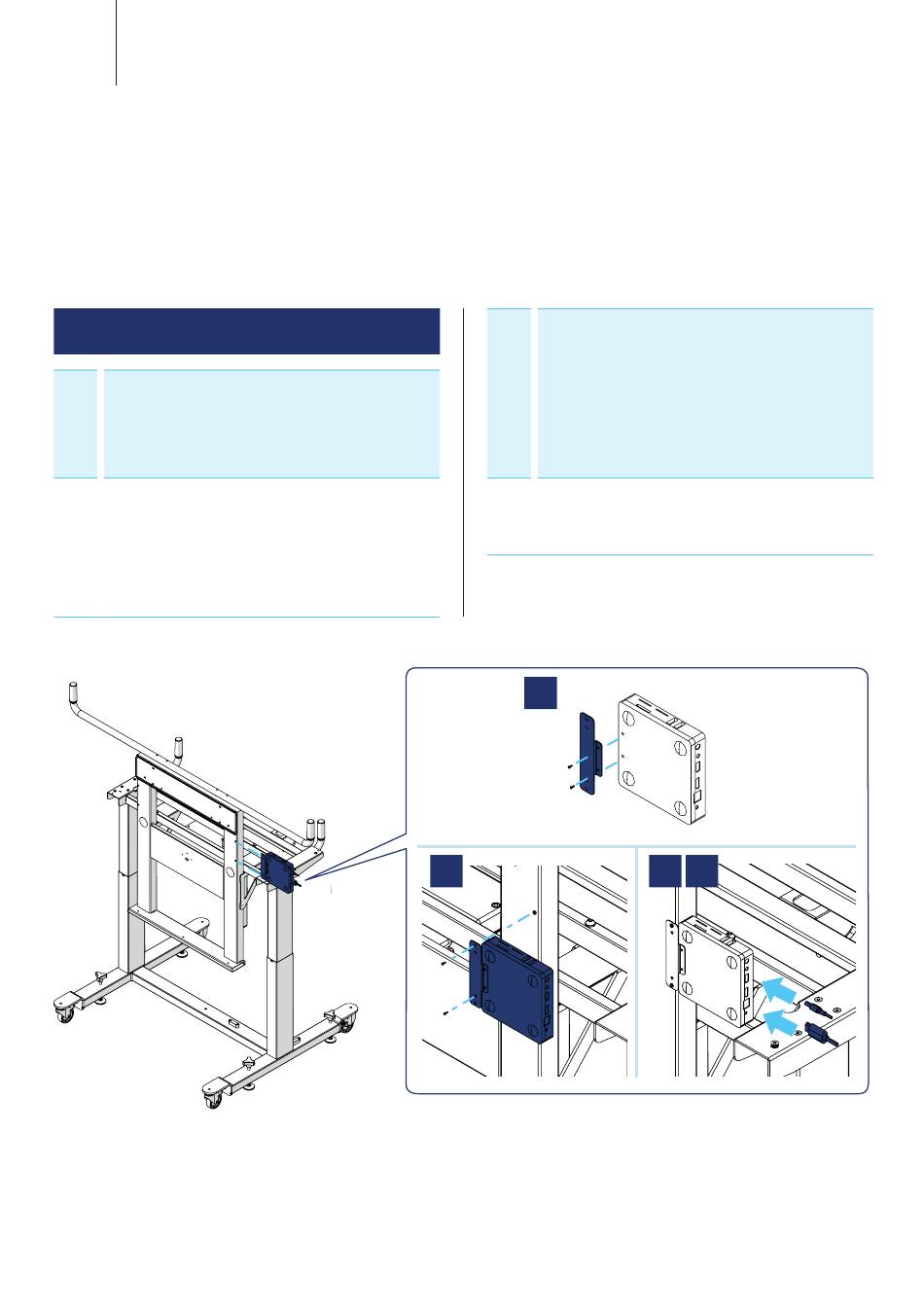

Assembling the Digital ADAS CPU
1 Attach the support bracket to the
Digital ADAS CPU, using 2 of the 4
screws supplied
2 Fix the Digital ADAS CPU to the
vertical post of the structure through
the protruding side of the support
bracket, using the 2 remaining screws
3 Connect the power supply of the Digi-
tal ADAS CPU to the multiple socket
Note: the cable is already wired in the
structure
4 Connect the HDMI cable to the Digital
ADAS CPU
1
2 3 4
