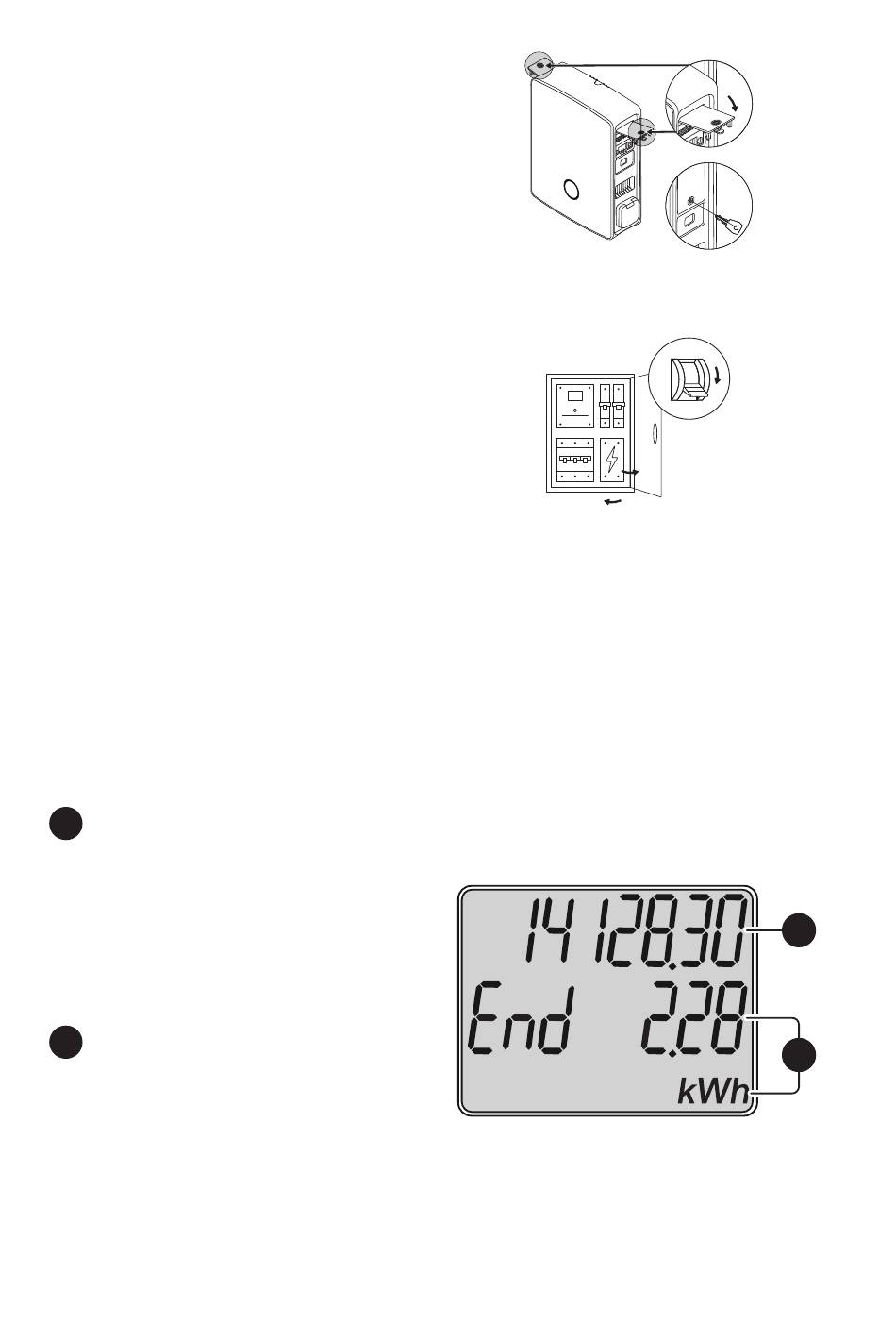

3 Close the RCCB flaps again and lock them
with the key.
4 Open your domestic power distribution
box, disconnect the wallbox's power
supply cable from the electricity grid via
the MCB, secure the MCB against being
switched on again and close the distribu-
tion box.
The Wallbox eM4 Twin is no longer connected to the electricity grid and can be removed by a qual-
ified specialist electrical contractor if required.

Reading the energy meter

Each charge point of the Wallbox eM4 Twin has its own energy meter that shows various informa-
tion about the charging operation via the three display lines. In contrast to the top line, the values
displayed in lines 2 and 3 are switched cyclically:
A Total electric energy consumed
B
The top line always shows the total elec-
tric power consumed in kWh, and there-
C
fore the sum of all the electrical charge
D
obtained via this particular charge point.
This line is not switched.
E
A
F
B Current electric energy consumed
C
In this state, the second line shows
the active energy in kWh that has been
D
drawn so far during the active charging
E
operation.
F
|
32 Reading the energy meter
