Endress+Hauser NAR300-System Betriebsanleitung Seite 19

NAR300-System
Endress+Hauser
Order code 1
Ser. no.
2
S Cl. I, Div. 1, Gr. C,D, T4
Cl. I, Zone 1[0],
AEx ia[ia] IIB T4
Intrinsic safety circuit (Power)
Ui=28V Ii=93mA Pi=0.65W
Li=48μH Ci 0 ≒
Intrinsic safety circuit 2:
Uo=13V Io=46.8mA Po=152.1mW
Lo=58.3mH Co=0.25μF
Ambient Temp. -20 ： ～ +60 ℃
Process Temp. -20 ： 60 ℃
〜+
Endress+Hauser Yamanashi Co.,Ltd.
Yamamashi 406-0846
NP-2668
Made in Japan
Caution：
・Do not modify parts and
circuits of this instrument.
・ Use the cables which thermal
endurance is over 70 . ℃
・ Refer to control drawing
Ex1087-1281- *
IP67 Type 4X
Endress+Hauser Yamanashi Co.,Ltd.
Yamamashi 406-0846
NP-2742
Made in Japan

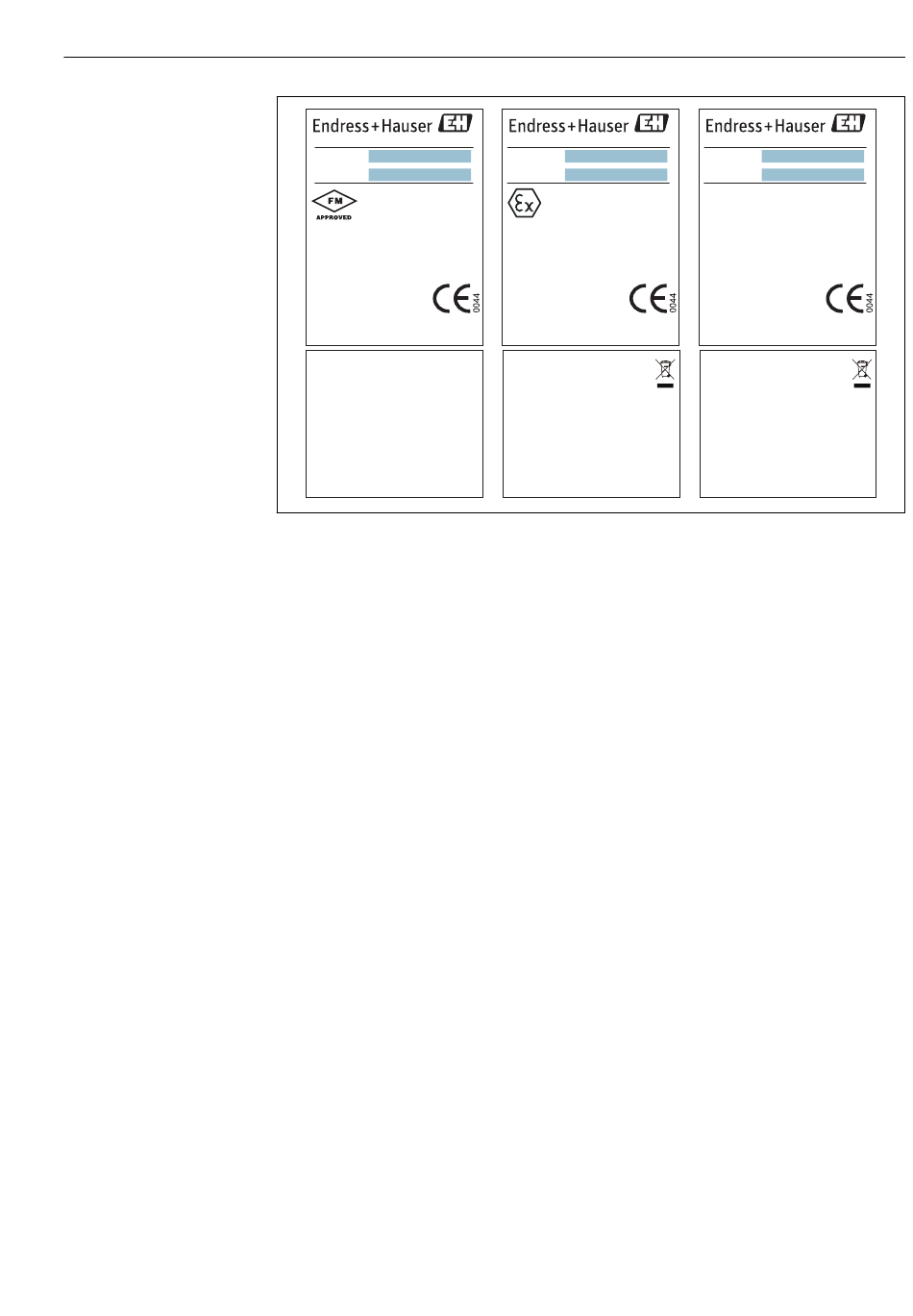

 6 Typenschilder für NAR300 FM / NAR300 ATEX / NAR300 IECEx
1 Bestellcode (Order code)
2 Seriennummer
Warenannahme und Produktidentifikation
NAR300
Order code 1
Ser no . . 2
II 1/2G Ex ia[ia Ga] IIB T4 Gb
FM 14ATEX0048X
Intrinsic safety circuit (Power)
Ui=28V Ii=93mA Pi=0.65W
Li=48μH Ci≒0
Intrinsic safety circuit 2:
Uo=13V Io=46.8mA Po=152.1mW
Lo=58.3mH Co=0.25μF
Ambient Temp.：-20～+60℃
Process Temp.：-20 ～+ 60℃
Endress+Hauser Yamanashi Co.,Ltd.
Yamamashi 406-0846
NP-2678
Made in Japan
Caution：
・Do not modify parts and
circuits of this instrument.
・Use the cables which thermal
endurance is over 70℃.
・Refer to instruction manual
IP67
XA01741G-A/08/EN
Endress+Hauser Yamanashi Co.,Ltd.
Yamamashi 406-0846
NP-2743-1
Made in Japan
NAR300
Order code 1
Ser no . . 2
Ex ia[ia Ga] IIB T4 Gb
IECEx FMG 14.0024X
Intrinsic safety circuit (Power)
Ui=28V Ii=93mA Pi=0.65W
Li=48μH Ci≒0
Intrinsic safety circuit 2:
Uo=13V Io=46.8mA Po=152.1mW
Lo=58.3mH Co=0.25μF
Ambient Temp.：-20～+60℃
Process Temp.：-20 ～+ 60℃
Endress+Hauser Yamanashi Co.,Ltd.
Yamamashi 406-0846
NP-2673
Made in Japan
Caution：
・Do not modify parts and
circuits of this instrument.
・Use the cables which thermal
endurance is over 70℃.
・Refer to instruction manual
IP67
XA01741G-A/08/EN
Endress+Hauser Yamanashi Co.,Ltd.
Yamamashi 406-0846
NP-2743-1
Made in Japan
A0039861
19
