mIDI Control Change (CC) functions
There are 2 MIDI CC functions that the Neutron supports:
• Modulation wheel or lever - MIDI CC 0x01 (MSB) & MIDI CC 0x21 (LSB).
This is routed to the assign out when selected as the assign out option
Damper Pedal on/off (Sustain) - MIDI CC 0x40.
•
System Exclusive Commands
Various parameters in the Neutron synthesizer can be changed using MIDI system
exclusive (SysEx) commands. A MIDI utility such as the popular MIDI OX can be
used to send the SysEx command data string to the Neutron by using the USB
MIDI connection between a host computer and the Neutron.
Section 7.2 shows a typical procedure for sending a SysEx message to the
Neutron, and it can be used to send any of the following SysEx messages.
Below is a table of SysEx commands.
Sysex
SysEx Command Sysex
Set Global Setting F0 00 20 32 28 ID 0A <> F7
Restore Global Settings F0 00 20 32 28 ID 0B F7
Calibration mode command F0 00 20 32 28 ID 10 <> F7
Software Version request F0 00 20 32 28 ID 73 F7
Software Version response F0 00 20 32 28 ID 74 MM NN F7
Global Setting Update F0 00 20 32 28 ID 5A MM <> F7
Global Setting Command Sysex
Set MIDI channel (*) F0 00 20 32 28 ID 0A 00 MM F7
Set Key Priority F0 00 20 32 28 ID 0A 01 MM F7
Set Pitch Bend Range (*) F0 00 20 32 28 ID 0A 03 MM F7
Set ASSIGN out F0 00 20 32 28 ID 0A 04 MM F7
Set Envelope retriggering F0 00 20 32 28 ID 0A 05 MM F7
Reset Min/Max MIDI notes F0 00 20 32 28 ID 0A 06 MM F7
Set Polychain Mode F0 00 20 32 28 ID 0A 08 MM F7
Set Device ID F0 00 20 32 28 ID 0A 09 MM F7
Disable MIDI DIP switches F0 00 20 32 28 ID 0A 0A MM F7
Set Mute Out-Of-Range notes F0 00 20 32 28 ID 0A 0B MM F7
Set Min MIDI note F0 00 20 32 28 ID 0A 0C MM F7
Set Max MIDI note F0 00 20 32 28 ID 0A 0D MM F7
Set OSC Sync F0 00 20 32 28 ID 0A 0E MM F7
Set Paraphonic Mode F0 00 20 32 28 ID 0A 0F MM F7
Set VCF mode F0 00 20 32 28 ID 0A 10 MM F7
Set VCF keytrack F0 00 20 32 28 ID 0A 11 MM F7
Set VCF mod src F0 00 20 32 28 ID 0A 12 MM F7
Set VCF mod depth F0 00 20 32 28 ID 0A 14 MM F7
Set OSC 1 shape blend F0 00 20 32 28 ID 0A 20 MM F7
Set OSC 2 shape blend F0 00 20 32 28 ID 0A 21 MM F7
Set OSC 1 tune pot bypass F0 00 20 32 28 ID 0A 22 MM F7
Set OSC 2 tune pot bypass F0 00 20 32 28 ID 0A 23 MM F7
This table lists the SysEx commands supported by the Neutron.

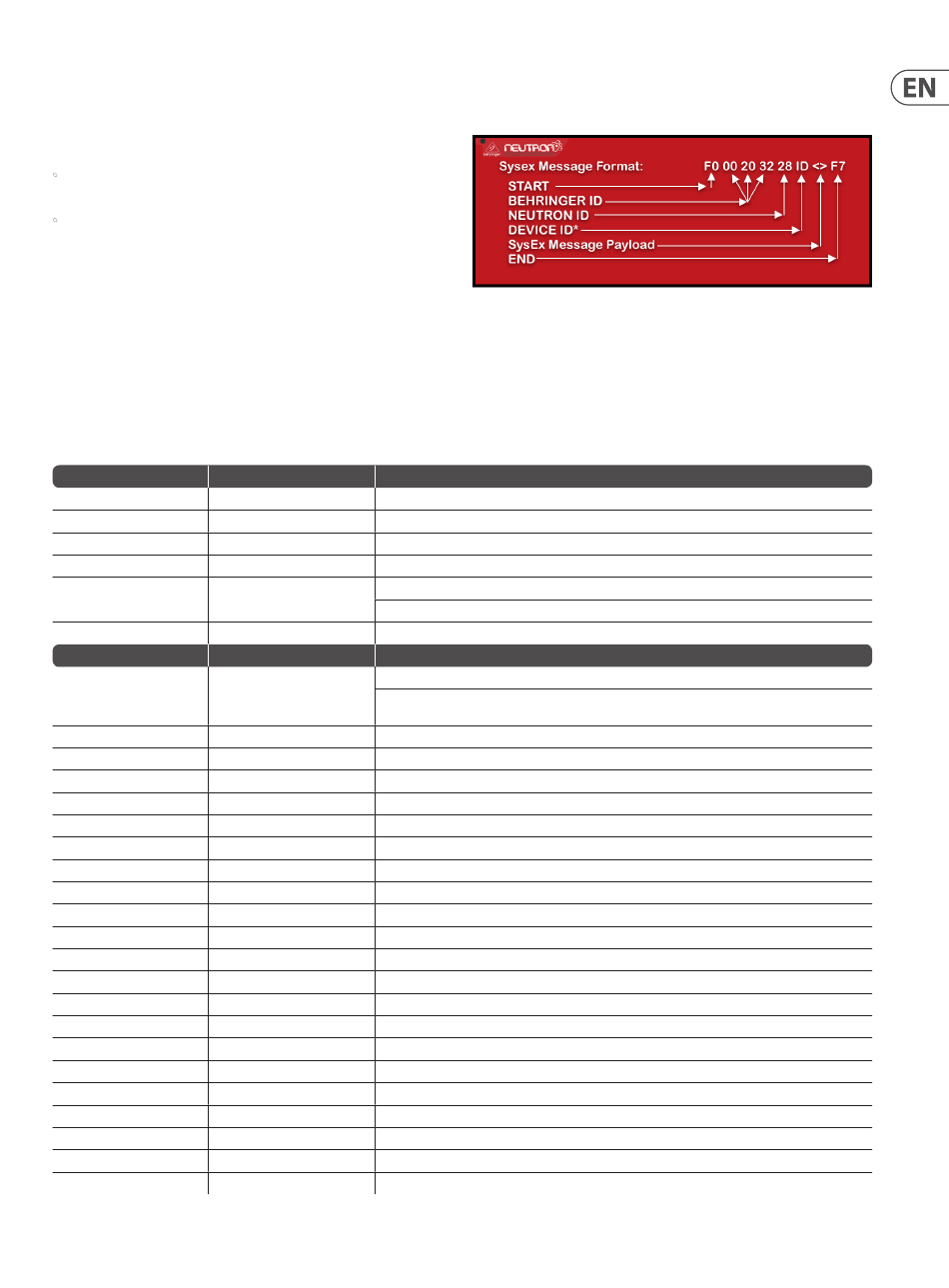

Note that the general format of a Neutron SysEx message is:
*note: the device ID is not the same as MIDI channel. The valid range is
0-15 (default 0) or 7F (multicast to all Neutrons)
Notes
See "Global Setting Command" table below
Restores defaults - does not erase calibration data
See "Calibration Command" table below
No notes
MM - Comms protocol version
NN - variable length ASCII string detailing the software version
MM - Comms protocol version
Notes
MM = 0-F --> MIDI channel 1-16
Note: using this command to set the MIDI channel will automatically disable the DIP switches on the back panel
(which will persist across power cycles)
MM = 0-LO, 1-HI, 2-Last. Default:2-Last
MM = 0-24 (semitones). Default:2
MM = 0-OSC 1 CV, 1-OSC 2 CV, 2-"Note On" velocity, 3-Modwheel, 4-Aftertouch. Default:0
MM = 1-Enabled, 0-Disabled. Default:0-Disabled
MM = not used
MM = 0-Disabled, 1-Enabled. Default:0
MM = 0-F --> MIDI ID 1-16. Default:0
MM = 0-Enabled, 1-Disabled. Default:0-Enabled
MM = 1-nute, 0-not mute. Default:0-not mute
MM = MIDI note number. Default:24
MM = MIDI note number. Default:96
MM = 0-Enabled, 1-Disabled. Default:0-Enabled
MM = 0-Monophonic, 1-Paraphonic. Default:0-Monophonic
MM = 0-HP, 1-BP, 2-LP
MM = 0-Disabled, 1-Enabled. Default:0
MM = 0-Disabled, 1-aftertouch, 2-modwheel, 3-velocity
MM = 0-3F where 0 is the minimum & 3F(63dec) is the maximum (100%)
MM = 1-No blend, 0-Blend. Default:0-Blend
MM = 1-No blend, 0-Blend. Default:0-Blend
MM = 0-Not bypassed, 1-Bypassed. Default:0-Not bypassed
MM = 0-Not bypassed, 1-Bypassed. Default:0-Not bypassed
