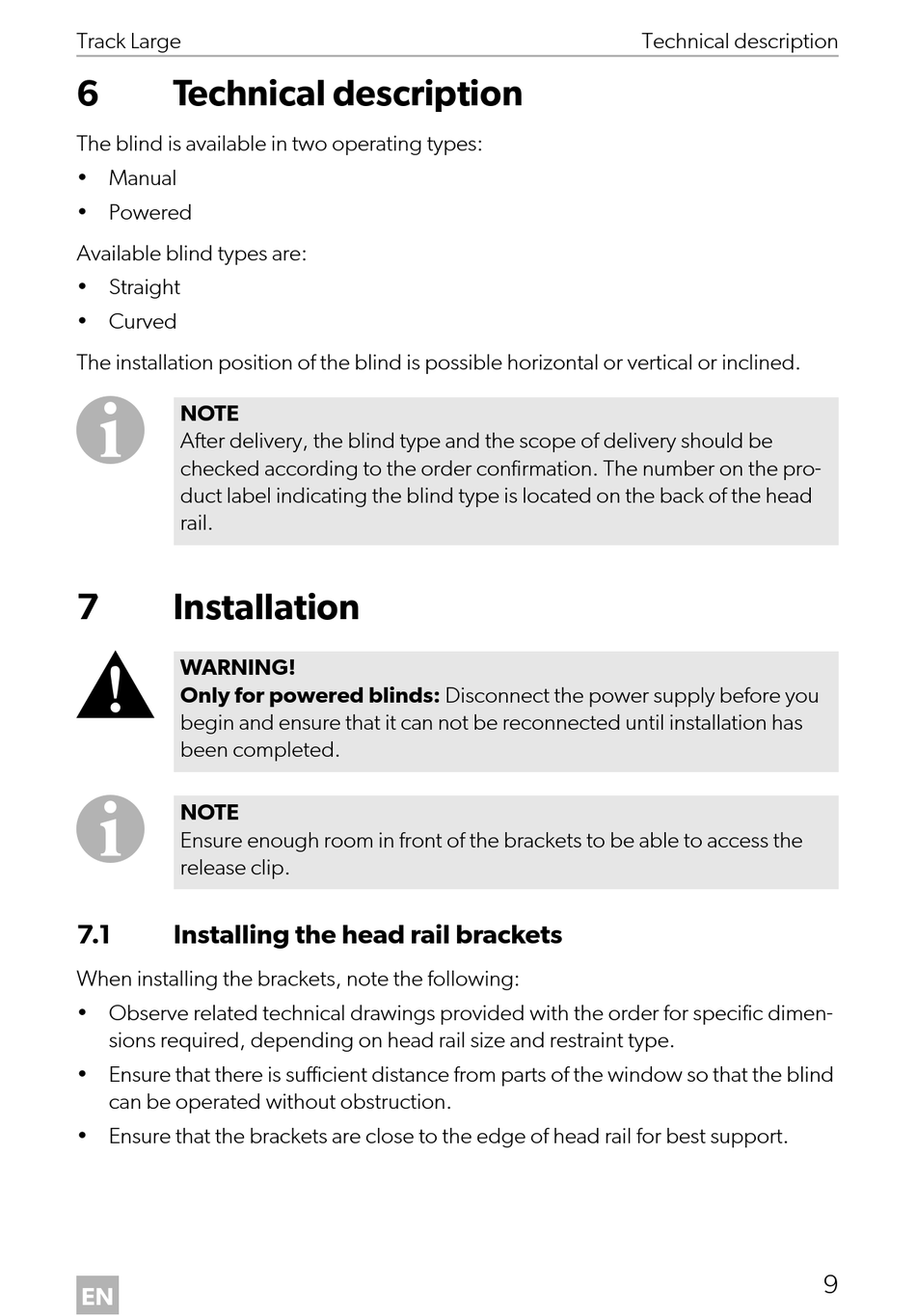

Technical description

The blind is available in two operating types:
• Manual
• Powered
Available blind types are:
• Straight
• Curved
The installation position of the blind is possible horizontal or vertical or inclined.
I
NOTE
After delivery, the blind type and the scope of delivery should be
checked according to the order confirmation. The number on the pro-
duct label indicating the blind type is located on the back of the head
rail.
7

Installation

!
WARNING!
Only for powered blinds: Disconnect the power supply before you
begin and ensure that it can not be reconnected until installation has
been completed.
I
NOTE
Ensure enough room in front of the brackets to be able to access the
release clip.
7.1 Installing the head rail brackets
When installing the brackets, note the following:
• Observe related technical drawings provided with the order for specific dimen-
sions required, depending on head rail size and restraint type.
• Ensure that there is sufficient distance from parts of the window so that the blind
can be operated without obstruction.
• Ensure that the brackets are close to the edge of head rail for best support.
