Operation

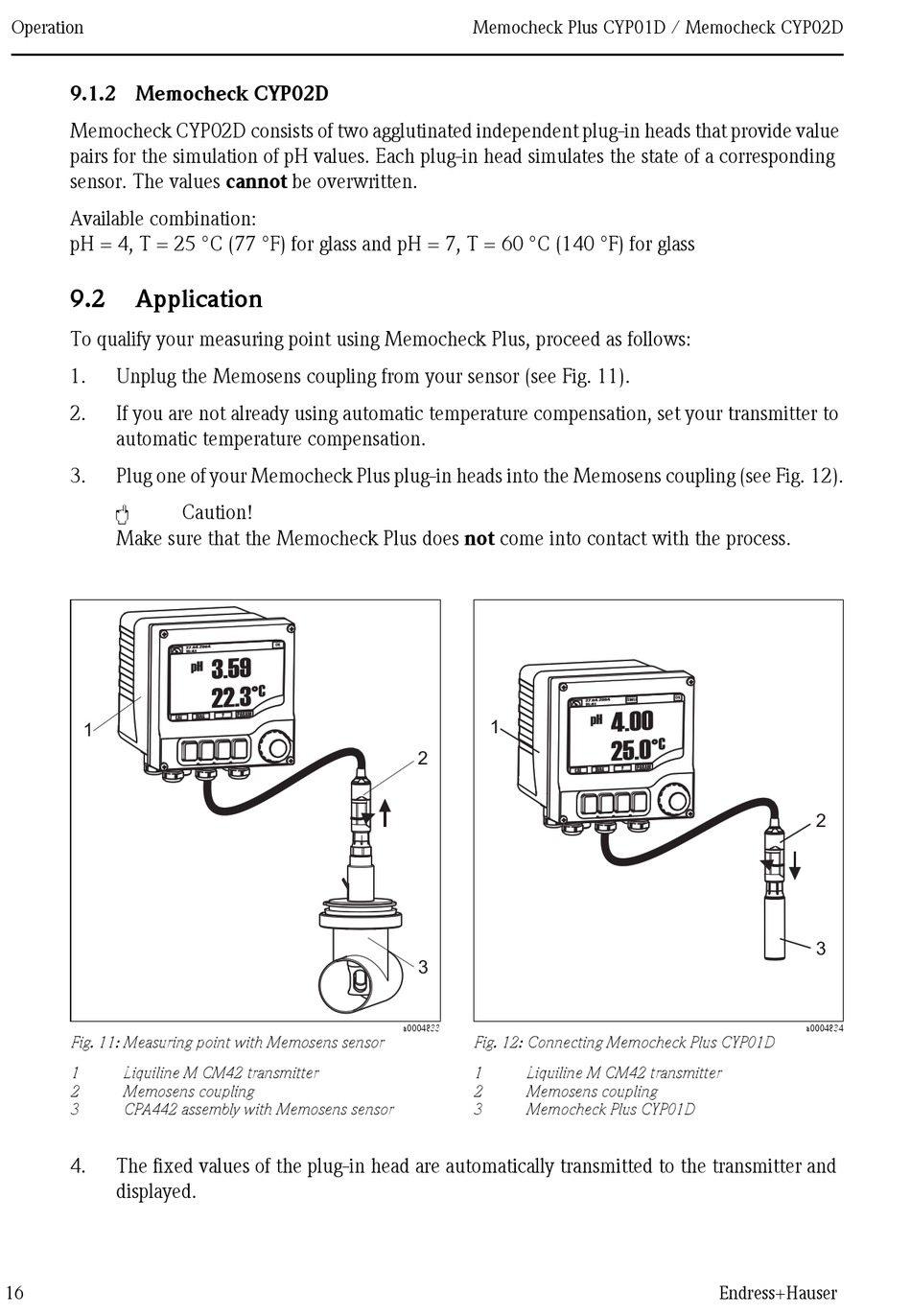

9.1.2 Memocheck CYP02D
Memocheck CYP02D consists of two agglutinated independent plug-in heads that provide value
pairs for the simulation of pH values. Each plug-in head simulates the state of a corresponding
sensor. The values cannot be overwritten.
Available combination:
pH = 4, T = 25 °C (77 °F) for glass and pH = 7, T = 60 °C (140 °F) for glass
9.2

Application

To qualify your measuring point using Memocheck Plus, proceed as follows:
1. Unplug the Memosens coupling from your sensor (see Fig. 11).
2. If you are not already using automatic temperature compensation, set your transmitter to
automatic temperature compensation.
3. Plug one of your Memocheck Plus plug-in heads into the Memosens coupling (see Fig. 12).
"
Make sure that the Memocheck Plus does not come into contact with the process.
1
Fig. 11: Measuring point with Memosens sensor
1 Liquiline M CM42 transmitter
2 Memosens coupling
3 CPA442 assembly with Memosens sensor
4. The fixed values of the plug-in head are automatically transmitted to the transmitter and
displayed.
16
Caution!
OK
Memocheck Plus CYP01D / Memocheck CYP02D
1
2
3
a0004833
Fig. 12: Connecting Memocheck Plus CYP01D
1 Liquiline M CM42 transmitter
2 Memosens coupling
3 Memocheck Plus CYP01D
OK
SIMU
Endress+Hauser
2
3
a0004834
