Operating Instructions VC 1000

5 Operating controls

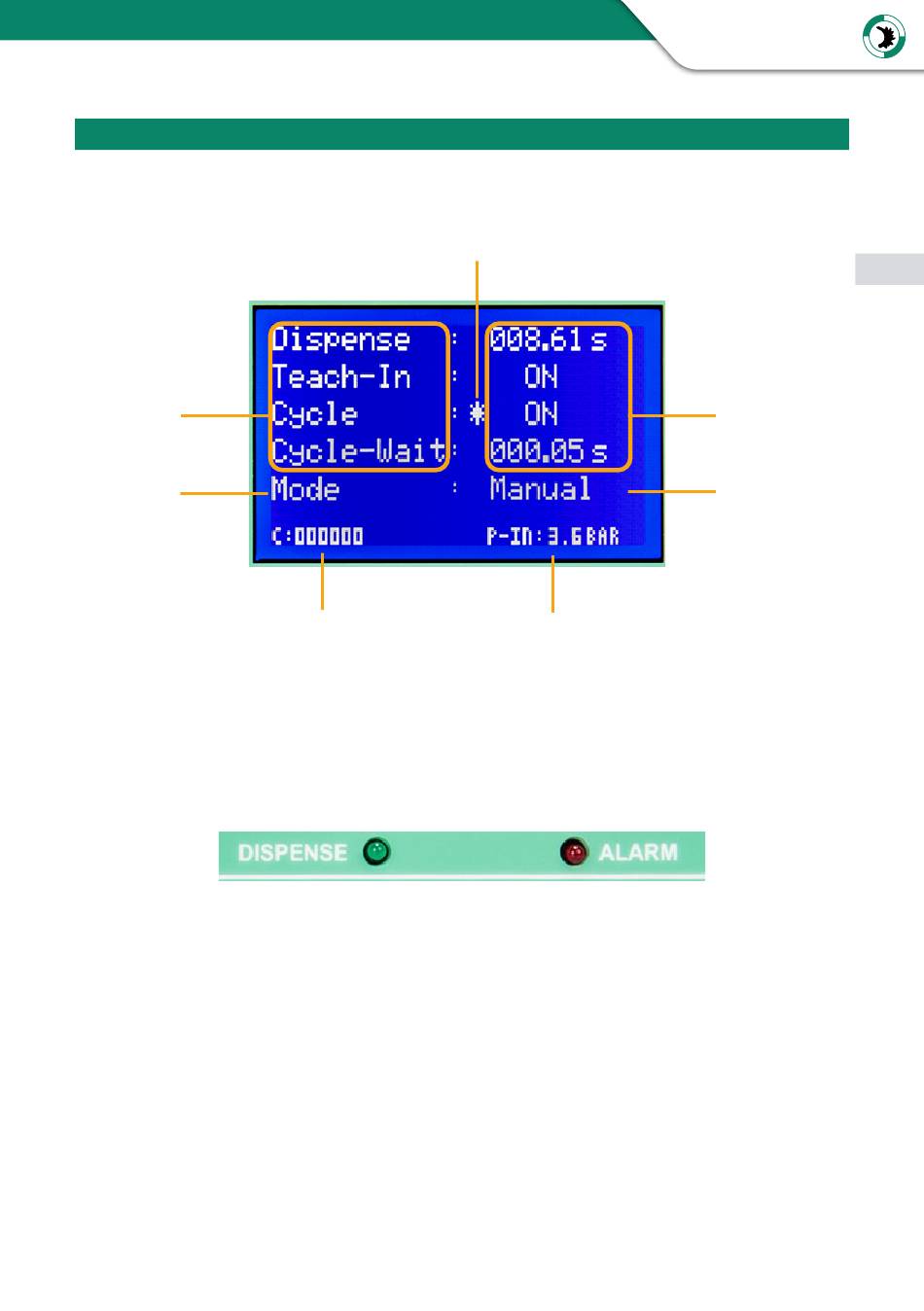

5.1 Main screen

adjustable
parameters
operating
mode

5.2 Status LEDs

The Status-LEDs are located below the graphic display
DISPENSE
The DISPENSE LED lights up while the dispensing valve is activated
ALARM The ALARM LED lights up, when one of this happens:
• Air pressure Alarm is active
• External Alarm signal transmitted by I/O-Port
marker
cycle
counter
25
inlet pressure
indicator
VIEWEG
EN
entered
values
program 1 - 7
or Manual
