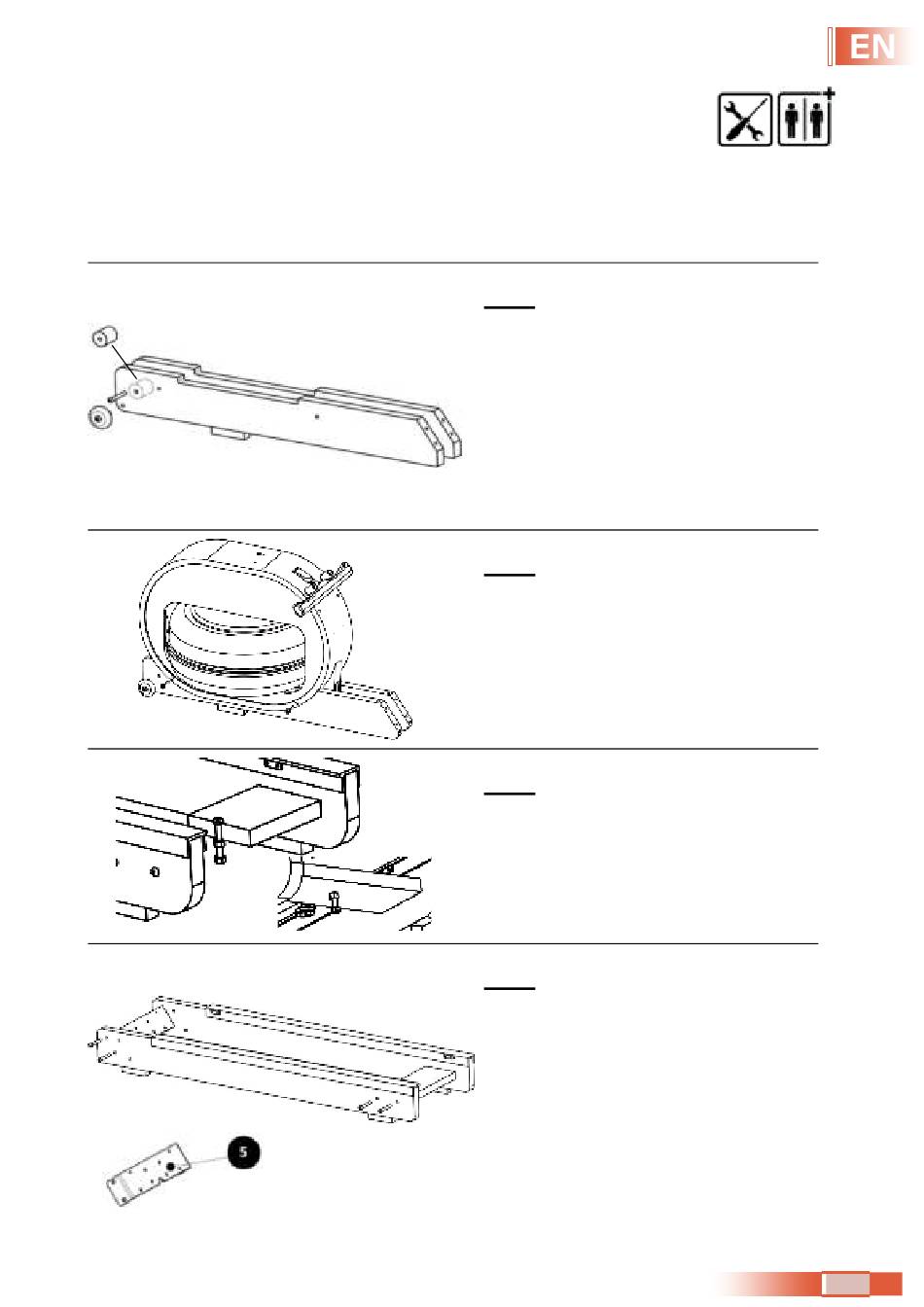

6. Assembly

Note: The assembly time is approx. 30 minutes and should, if possible, be carried out by 2 people.
Note: Please untie the retraction elastic first and place it at the bottom. This facilitates your
installation in the previous steps.
Note: The arc of the metal bracket (5) needs to be installed downwards.
Step 1
Connect the right front frame part (9) and the
left front frame part (10) using the spacer (11)
with two M8 x45 screws and washers (15) &
(18).
Insert the two wheels (12) through the frame
from the outside and fasten them with a non-
slip nut (17) each from the inside.
Step 2
Place the tank unit (1) on the front frame and
fasten it with four M8x45 screws and
washers (15) & (18).
Step 3
Insert M8*60 screw (16) into the connecting
board (6) with one non-slip nut (17) fixed it
to the board and another non-slip nut (17) as
the fixed end for the retraction elastic.
Step 4
Connect the right running rail (7) and the left
running rail (8) using the metal bracket (5)
with four M8x45 screws & washers & nuts
(15) & (18) & (17) and using the connecting
board (6) with four M8x45 screws and
washers (15) & (18).
23
