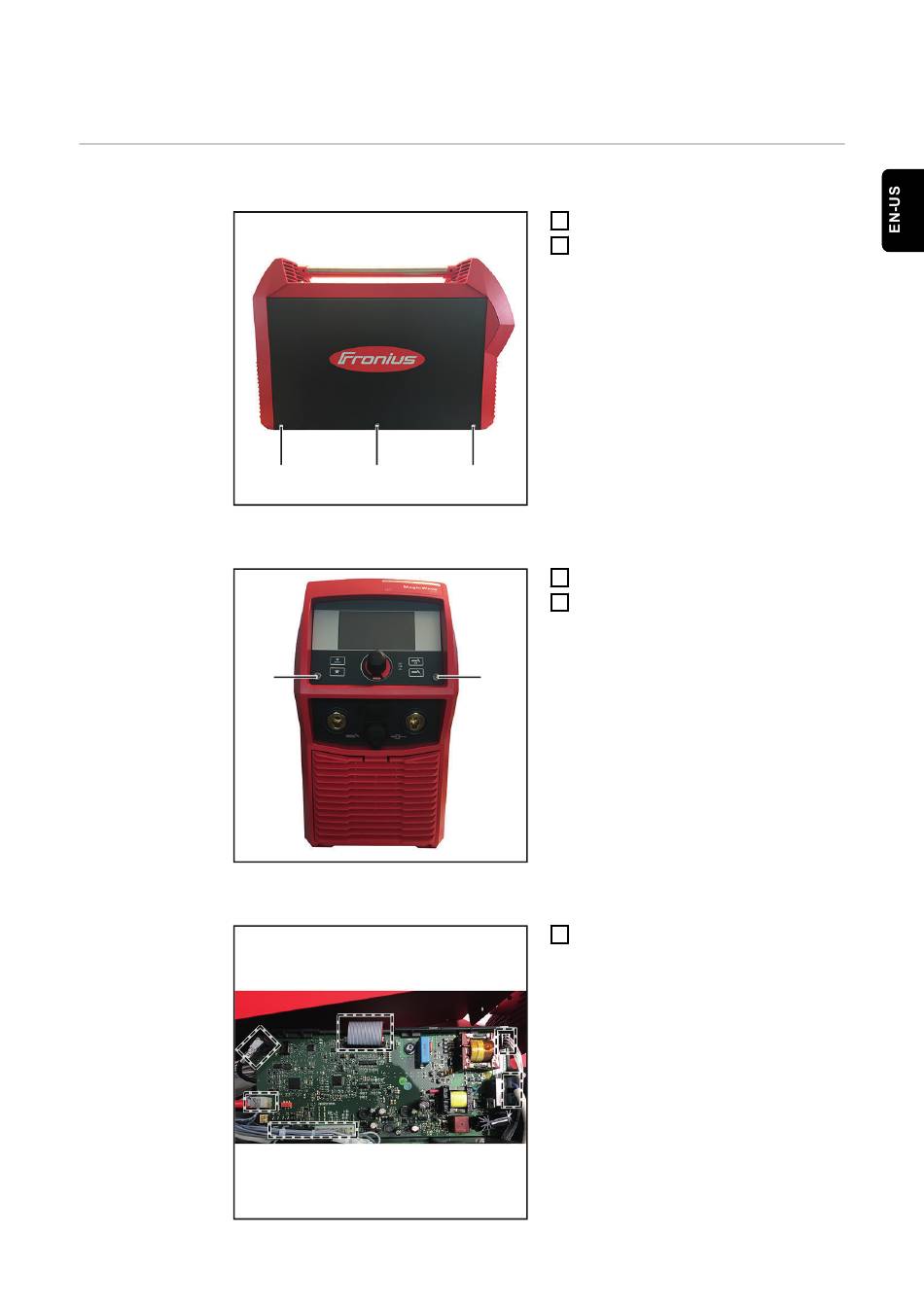

Installing OPT/i SpeedNet Connection iWave230i
Preparation Remove left side panel
Remove control panel
(1)
Remove the TPC220 PC board
(1) (1)
Remove 3 TX25 screws (1)
1
Remove left side panel
2
(1)
Remove 2 TX25 5x14 mm screws (1)
1
Fold out control panel
2
(1)
Disconnect all lines as shown
1
