EN
REPAIR AND CLEANING PROCEDURE

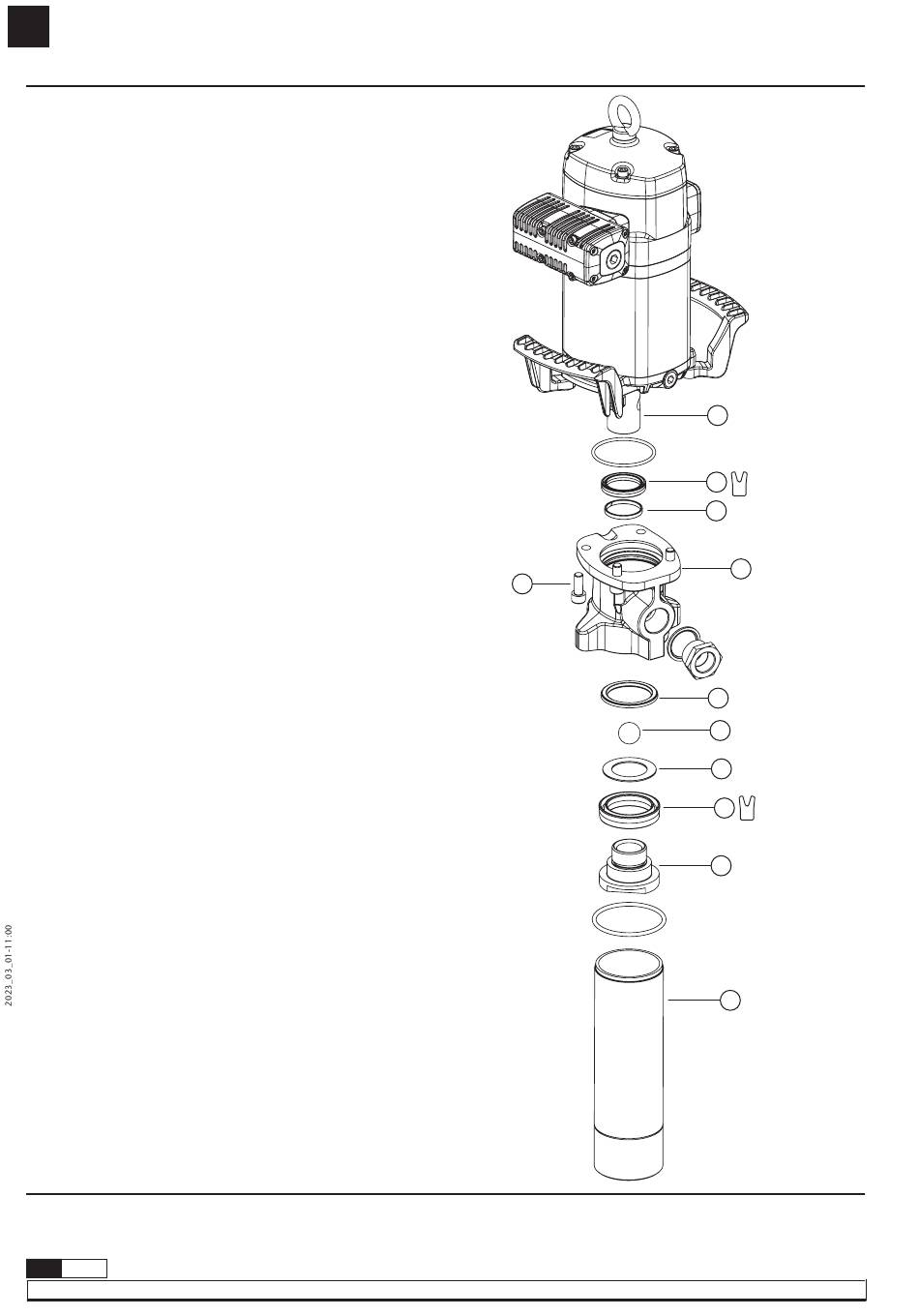

LOWER SEALS KIT (FIG. 8)
For easier service, it is recommended to stop the pump near de
lowest stroke position.
1. Unscrew the tube (K) from the pump body (D).
2. Unscrew the piston (J) from the rod (A). Take away the ball (G) and
the washer (H). Replace the V-ring (I).
3. Unscrew bolts (E), remove the outlet body (D) and replace the seals
(B, F) and guide ring (C).
4. Reassembly in reverse order, applying thread locker in all joints.
5. All these seals are included in the available kit (section SPARE
PARTS KITS).
SPARE PARTS KITS / TECHNICAL DATA / DIMENSIONS
PAGE: 44, 47 and 48.
8
853 801 R. 03/23
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
E
A
B
LIPS FACING UP
C
D
F
G
H
I
LIPS FACING UP
J
K
Fig. 7
