Samoa PM45 Serviceanleitung Seite 7

REPAIR AND CLEANING PROCEDURE

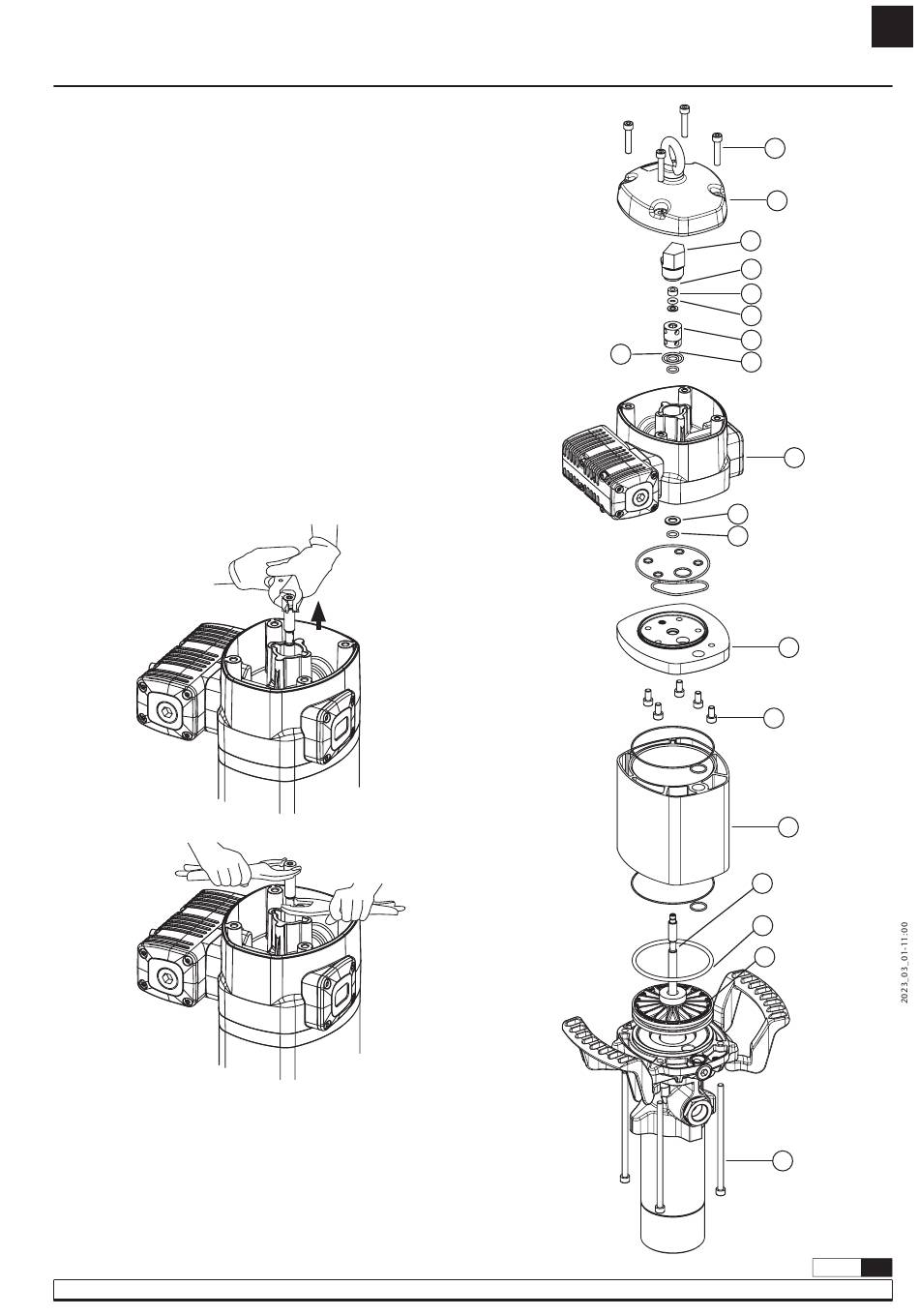

AIR MOTOR SEALS (FIG. 7)
1. Unscrew the bolts (A) and remove the cap (B).
2. Unscrew the sensor sleeve (C).
3. With a manual clamp on the nut (D), pull the rod (O) outwards
untill its central recess appears (Fig. 6a). Then, with another
manual clamp, grab the rod (O) on said recess to prevent sealing
surface to be damaged, and unscrew the nut (D) (Fig. 6b).
4. Remove o-ring (E) and ring (F), and replace them with new ones later.
5. Unscrew the bolts (R). Pull the motor body (J) outwards to free it
along with bridle (L).
6. Take away the gasket (G) and replace its seals (H) and (I).
7. Unscrew the bolts (M) and split the motor (J) from the bridle (L).
Take away the washer (K) and replace the seal (H).
8. Take away the cylinder (50) while carefully holding the air piston
(Q). Replace the piston seal (P).
9. Re-assembly in reverse order, applying thread locker in screws (M),
nut (D) and sensor sleeve (C).
Note: all these seals are included in the available kit (section SPARE
PARTS KITS).
Fig. 7a
Fig. 7b
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
I
Fig. 7
EN
A
B
C
D
E
F
G
H
J
K
H
L
M
N
O
P
Q
R
R. 03/23 853 801 7
