IMPORTANT: When moving the tool-holder arm to the working position, continue
to operate the control until you are sure that the tool-holder arm has completed
its movement and is therefore in the correct working position.
- Two-position lever (C, Fig. 14) that controls turntable opening and closing.
- Two-position lever (D, Fig. 14) that uses a horizontal movement to rotate the
tool unit (only for the automatic version).
- Three-position lever (E, Fig. 14) that controls the rotational speed of the turntable.
wise at an ideal speed for the grooving
operation.
- Button (F, Fig. 14) that, when
activated together with the trolley
translation control, increases the
speed.
- Emergency button (G, Fig. 14a),
positioned on the left side of the
console, allows to cut off the power
supply to all machine controls.
IMPORTANT: Once the emergency button
is pressed, it must be manually reset to
restore the power supply to the controls.

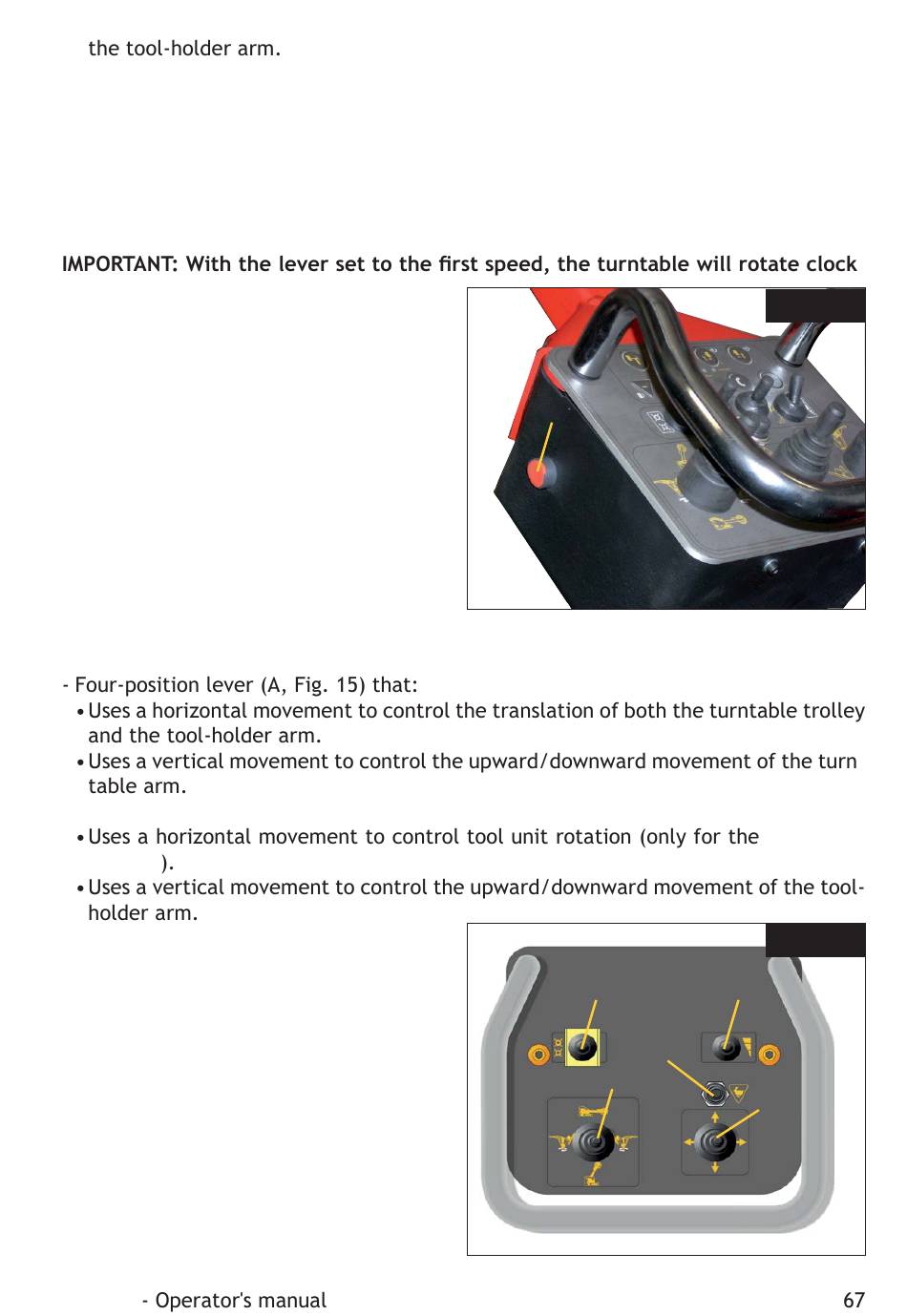

- 4-position lever (B, Fig. 15) that:
version
IMPORTANT: When moving the tool-hold-
er arm to the working position, continue
to operate the control until you are sure
that the tool-holder arm has completed
its movement and is therefore in the
correct working position.
- Two-position lever (C, Fig. 15) that
controls turntable opening and clos-
ing.
- Three-position lever (D, Fig. 15)
that controls the rotational speed of
the turntable.
- E
NGLISH
VERSION WITH GROUND CONTROL LEVER
G
C
E
B
-
Fig. 14a
-
automatic
Fig. 15
D
A
