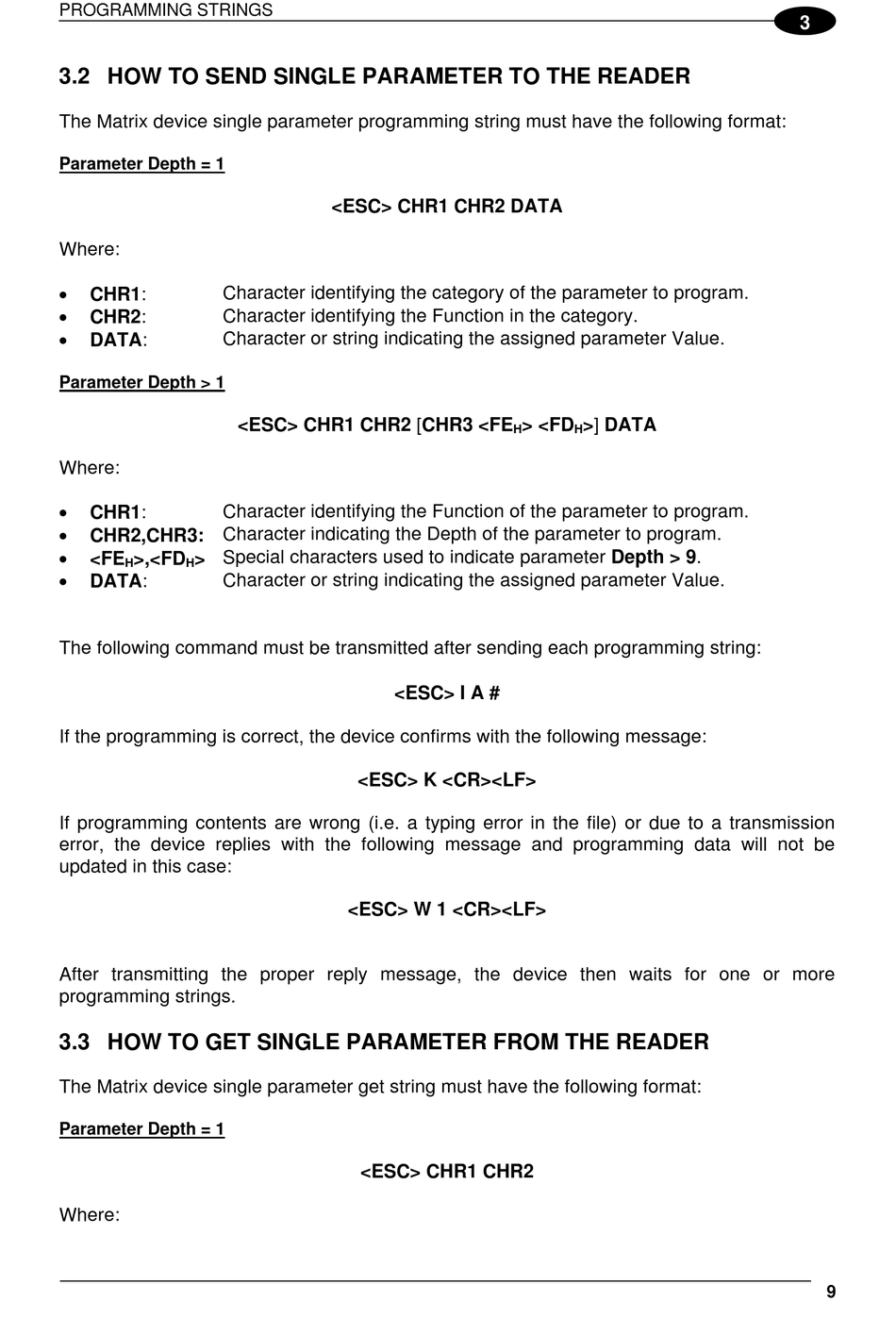

PROGRAMMING STRINGS
3.2 HOW TO SEND SINGLE PARAMETER TO THE READER
The Matrix device single parameter programming string must have the following format:
Parameter Depth = 1
Where:
Character identifying the category of the parameter to program.
CHR1:
Character identifying the Function in the category.
CHR2:
Character or string indicating the assigned parameter Value.
DATA:
Parameter Depth > 1
Where:
Character identifying the Function of the parameter to program.
CHR1:
CHR2,CHR3: Character indicating the Depth of the parameter to program.
> Special characters used to indicate parameter Depth > 9.
<FE
>,<FD
H
H
Character or string indicating the assigned parameter Value.
DATA:
The following command must be transmitted after sending each programming string:
If the programming is correct, the device confirms with the following message:
If programming contents are wrong (i.e. a typing error in the file) or due to a transmission
error, the device replies with the following message and programming data will not be
updated in this case:
After transmitting the proper reply message, the device then waits for one or more
programming strings.
3.3 HOW TO GET SINGLE PARAMETER FROM THE READER
The Matrix device single parameter get string must have the following format:
Parameter Depth = 1
Where:
<ESC> CHR1 CHR2 DATA
<ESC> CHR1 CHR2 [CHR3 <FE
<ESC> I A #
<ESC> K <CR><LF>
<ESC> W 1 <CR><LF>
<ESC> CHR1 CHR2
> <FD
>] DATA
H
H
3
9
