Adjustments
5.1.1

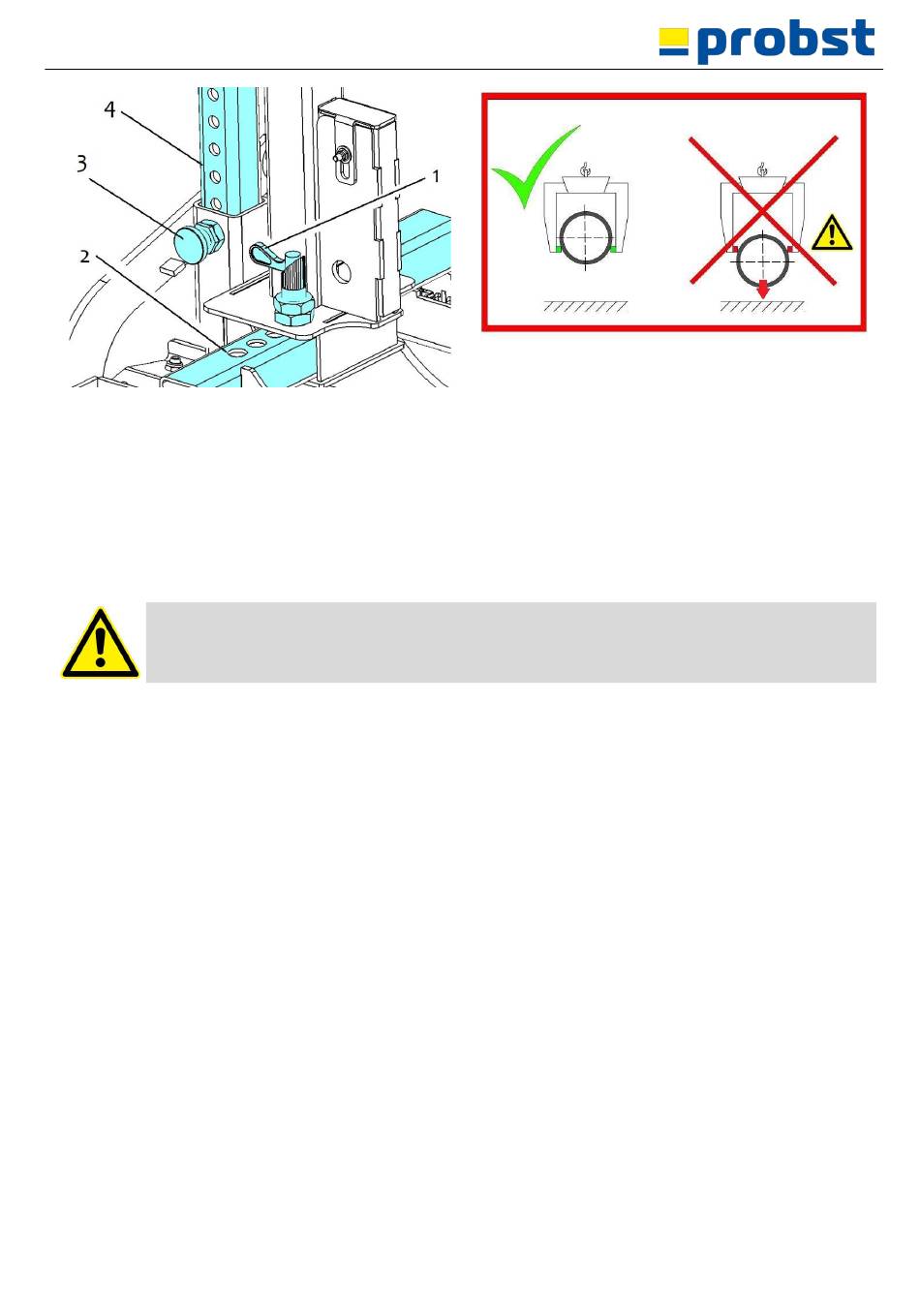

Adjustment of the height-adjustable support

The height-adjustable support is adjusted as follows:
•
Pull the cotter pin (3) upwards and turn it by 180°.
•
Move the rectangular tube (4) until the correct immersion depth is set. Pull the cotter pin (3) upwards again and
turn it by 180°.
•
Push the rectangular tube (4) back and forth until the spring bolt (3) engages in the corresponding hole.
The height-adjustable support must always be set so that the gripping jaws always grip the concrete
pipe below the largest pipe diameter, otherwise there is a danger of slipping!!
→ Fig. 2
54500004
Fig. 1
12 / 19
Fig. 2
