On the Ground

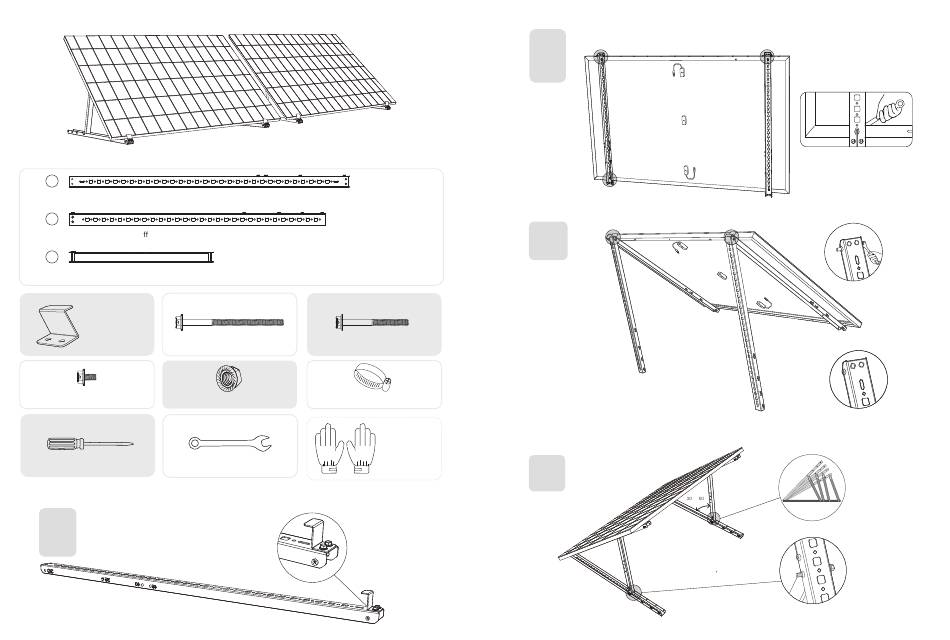

What You Need
A
1200
mm
Solar Panel Support Beam (×4)
B
1100
mm
Vertical Support Sca olding (×4)
C
618
mm
Lower Support Beam (×4)
F G
Limit Support (×4) M6×100 Hexagon Flange Bolt (×16)
I J
M6×12 Hexagon Flange Bolt (×24) M6 Flange Nut (×20)
N
M
Phillips Screwdriver
1. Attach the limit supports to the non-numbered end of the solar panel's support beams.
Note: Make sure that the direction of the limit support is up, as shown in the figure.
A x2
F x2
I x4
63 EN
H
M6×65 Hexagon Flange Bolt (×12)
K
304 Stainless Steel Hose Clamp (×10)
Hexagon Wrench
2. Mount the solar panel support beams on the solar panel.
A x2
I x4
J x4
3. Install the vertical support scaffoldings and solar panel support beams without tightening the screws.
B x2
H x2
4. Mount the lower support beams and adjust the angle for maximum sunlight exposure.
Note: Make sure that both ends of the lower support beams are aligned with the same number.
(Not included)
C x2
Work Gloves
H x4
B
C
°~ °
45 40 35 30
A
EN 64
