Balcony Solar Power System Installation Steps Overview
• Step A: Find a suitable location to install the balcony solar power system.
• Step B: Install the first solar panel.
• Step C: Install the microinverter.
• Step D: Install the second solar panel.
• Step E: Connect the solar panel to the microinverter via the solar panel's extension cable, then wait for 90 seconds.
NOTE: This step must be done with sufficient sunlight for the solar panel to provide power to the microinverter.
• Step F: Scan the QR code and download the Anker app. Follow the in-app instructions to complete the microinverter
configuration and Schuko cable connection.
NOTE: This step must be done while your home's electrical grid has power.
• Step G: After 20 minutes, you will get the balcony solar power system's data on your Anker app.
NOTE: According to the government's regulations and to ensure safety, the microinverter can only start working after connecting
to a powered grid for 5 minutes. To improve the accuracy of the data, the system will verify and validate it for 15 minutes before
showing it on the app.

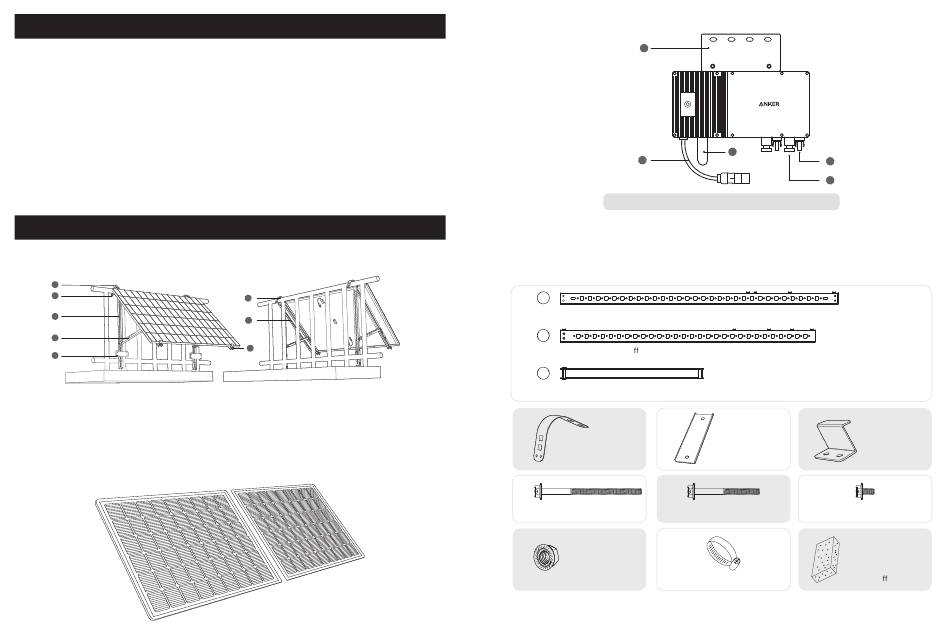

Components Overview

Solar Panel Tilt Mount Brackets
1
2
3
4
5
1. 304 Stainless Steel Hose Clamp (K)
2. U-Shaped Rack (D)
3. Vertical Support Scaffolding (B)
4. Lower Support Beam (C)
Solar Panel
35 EN
8
7
6
5. Fastening Clamp (E)
6. Limit Supports (F)
7. Solar Panel Support Beam (A)
8. Silicone Buffer Pad (L)
Microinverter
1
2
Note: The product's appearance varies by supplier and batch.
1. Mounting 3. Wi-Fi Module
2. AC Connector 4. QC4 Female Socket

Accessories

A
1200
mm
Solar Panel Support Beam (×4)
B
1100
mm
Vertical Support Sca olding (×4)
C
618
mm
Lower Support Beam (×4)
E
D
U-Shaped Rack (×4)
G H
M6×100 Hexagon Flange Bolt (×16) M6×65 Hexagon Flange Bolt (×12)
K
J
M6 Flange Nut (×20) 304 Stainless Steel Hose Clamp (×10)
O
M
Phillips Screwdriver
N
3
5
4
5. QC4 Male Pin
F
Fastening Clamp (×8)
Limit Support (×4)
I
M6×12 Hexagon Flange Bolt (×24)
L
Silicone Bu er Pad (×4)
(Not included)
Mounting Auxiliary Rope Work Gloves
EN 36
