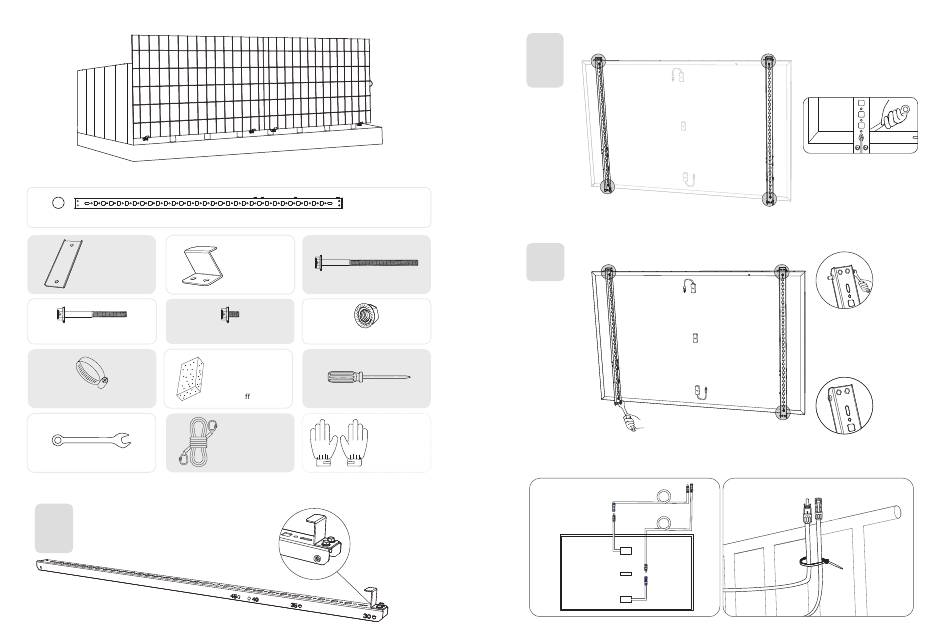

Option 2: 0° Inclination Angle
What You Need
A
1200
mm
Solar Panel Support Beam (×4)
E F
Fastening Clamp (×8)
I
H
M6×65 Hexagon Flange Bolt (×12) M6×12 Hexagon Flange Bolt (×24)
K L
304 Stainless Steel Hose Clamp (×10)
O
N
Hexagon Wrench
1. Attach the limit supports to the numbered end of the solar panel's support beams.
Note: Make sure that the direction of the limit support is up, as shown in the figure.
A x2
F x2
I x4
45 EN
G
M6×100 Hexagon Flange Bolt (×16)
Limit Support (×4)
J
M6 Flange Nut (×20)
M
Silicone Bu er Pad (×4) Phillips Screwdriver
(Not included)
Mounting Auxiliary Rope Work Gloves
2. Mount the solar panel support beams on the solar panel.
A x2
I x4
J x4
3. Tighten all the screws with 5N.m torque.
N x1
5N.m
4. Connect the solar panel with the solar panel extension cable.
Note: To avoid falling, secure the solar panel extension cable on the balcony railings temporarily with zip ties.
1.5m
EN 46
