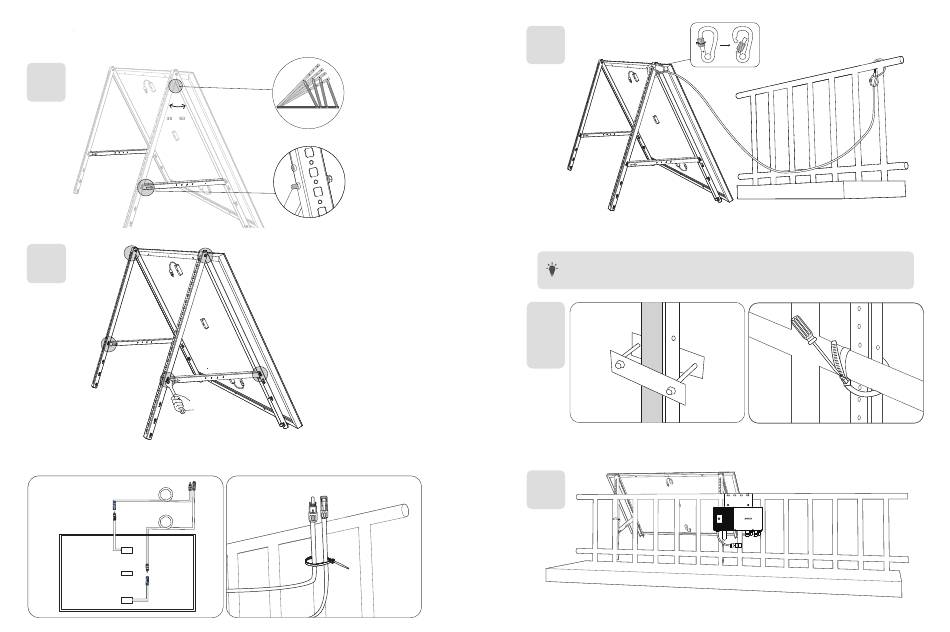

4. Mount the lower support beams and adjust the angle for maximum sunlight exposure.
Note: Make sure that both ends of the lower support beams are aligned with the same number.
C x2
H x4
°~ °
5. Tighten all the screws with 5N.m torque.
N x1
5N.m
6. Connect the solar panel with the solar panel extension cable.
Note: To avoid falling, secure the solar panel extension cable on the balcony railings temporarily with zip ties.
1.5m
41 EN
B
C
45 40 35 30
A
7. Fasten the Mounting Auxiliary Rope to the bracket and the balcony railing. Make sure the rope is tightened.
O x1
8. Install the solar panel's support brackets on the balcony railing, then secure them using fastening clamps and stainless steel
hose clamps.
·
Tighten the stainless steel hose clamps clockwise, and loosen the stainless steel hose clamps
counterclockwise.
T
·
At least 2 stainless steel hose clamps are needed to secure the brackets on one side.
E x1
K x2
G x4
J x4
9. Install the microinverter to the balcony railing with stainless steel hose clamps.
Note: The microinverter's front surface (with the Anker logo) should face outwards.
K x2
Check if all screws are tightened and complete the installation.
