What You Need - Anker Solix Installationsanleitung

Installation

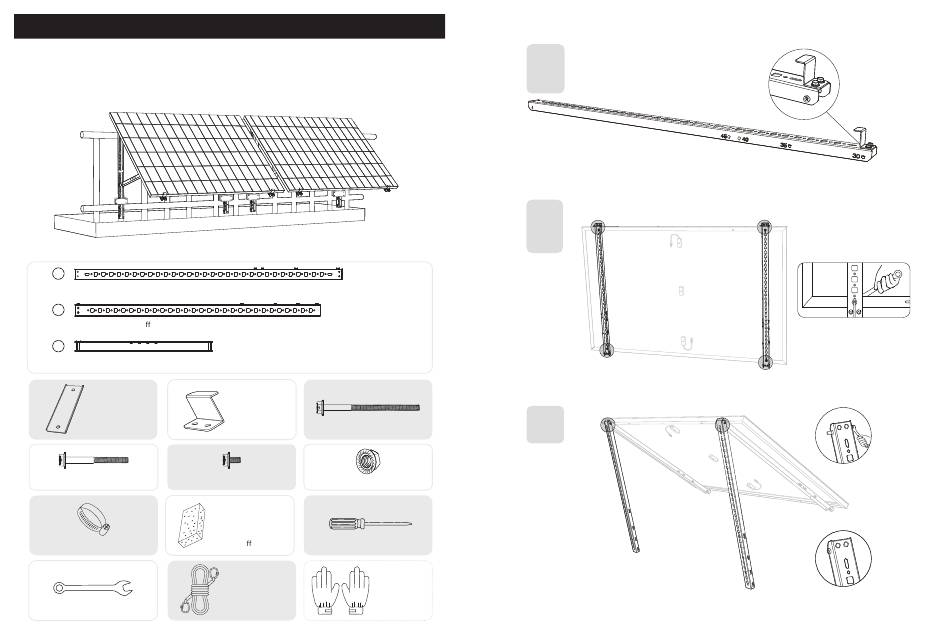

On a Balcony (Below 1.2m/3.9ft)
• Make sure the solar panel can extend over the balcony railing.
• Solar system modules weigh 90kg (198.41lb), so make sure your balcony can support them.
Option 1: 30°, 35°, 40°, and 45° Inclination Angles

What You Need

A
1200
mm
Solar Panel Support Beam (×4)
B
1100
mm
Vertical Support Sca olding (×4)
C
618
mm
Lower Support Beam (×4)
E F
Fastening Clamp (×8)
I
H
M6×65 Hexagon Flange Bolt (×12) M6×12 Hexagon Flange Bolt (×24)
K
L
304 Stainless Steel Hose Clamp (×10)
O
N
Hexagon Wrench
39 EN
G
M6×100 Hexagon Flange Bolt (×16)
Limit Support (×4)
J
M6 Flange Nut (×20)
M
Silicone Bu er Pad (×4) Phillips Screwdriver
(Not included)
Mounting Auxiliary Rope Work Gloves
1. Attach the limit supports to the numbered end of the solar panel's support beams.
Note: Make sure that the direction of the limit support is up, as shown in the figure.
A x2
F x2
I x4
2. Mount the solar panel support beams on the solar panel.
A x2
I x4
J x4
3. Install the vertical support scaffolding and solar panel support beams without tightening the screws.
B x2
H x2
EN 40
