Total brightness
Menu diMM allows adjusting the total brightness for all stand-alone operating modes.
1 Press the MENU button so many times until diMM is indicated in the display. Confirm with the ENTER
button.
2 Use the buttons UP and DOWN to adjust the desired brightness (dl1 = dark, dl9 = bright). Confirm with
the ENTER button.

Interconnecting several devices (master/slave operation)

Several devices may be interconnected (max. 32). Then all slave units can be synchronized and controlled
with the master unit without the need for a DMX controller. The devices must be set to the corresponding
operating modes.
1 Configure all slave units before connecting the master unit: Press the MENU button so many times until
SLAV is indicated in the display. Confirm with the ENTER button.
2 Connect the DMX output of the master unit to the DMX input of the first slave unit. Then connect the
DMX output of the first slave unit to the DMX input of the second slave unit, etc. until all units have been
connected in a chain. Make sure the master unit is the first in the chain. Do not connect a DMX controller
to the DMX input of the master unit.
3 Set the master unit to the desired operating mode. The interconnected devices will now operate in sync.
Display inversion
In the dISP mode, you can invert the display.
1 Press the MENU button so many times until dISP is indicated in the display. Confirm with the ENTER
button.
2 Use the buttons UP and DOWN to adjust dISP or dSIP function. dISP is normal and dSIP is inverted.
Confirm with the ENTER button.

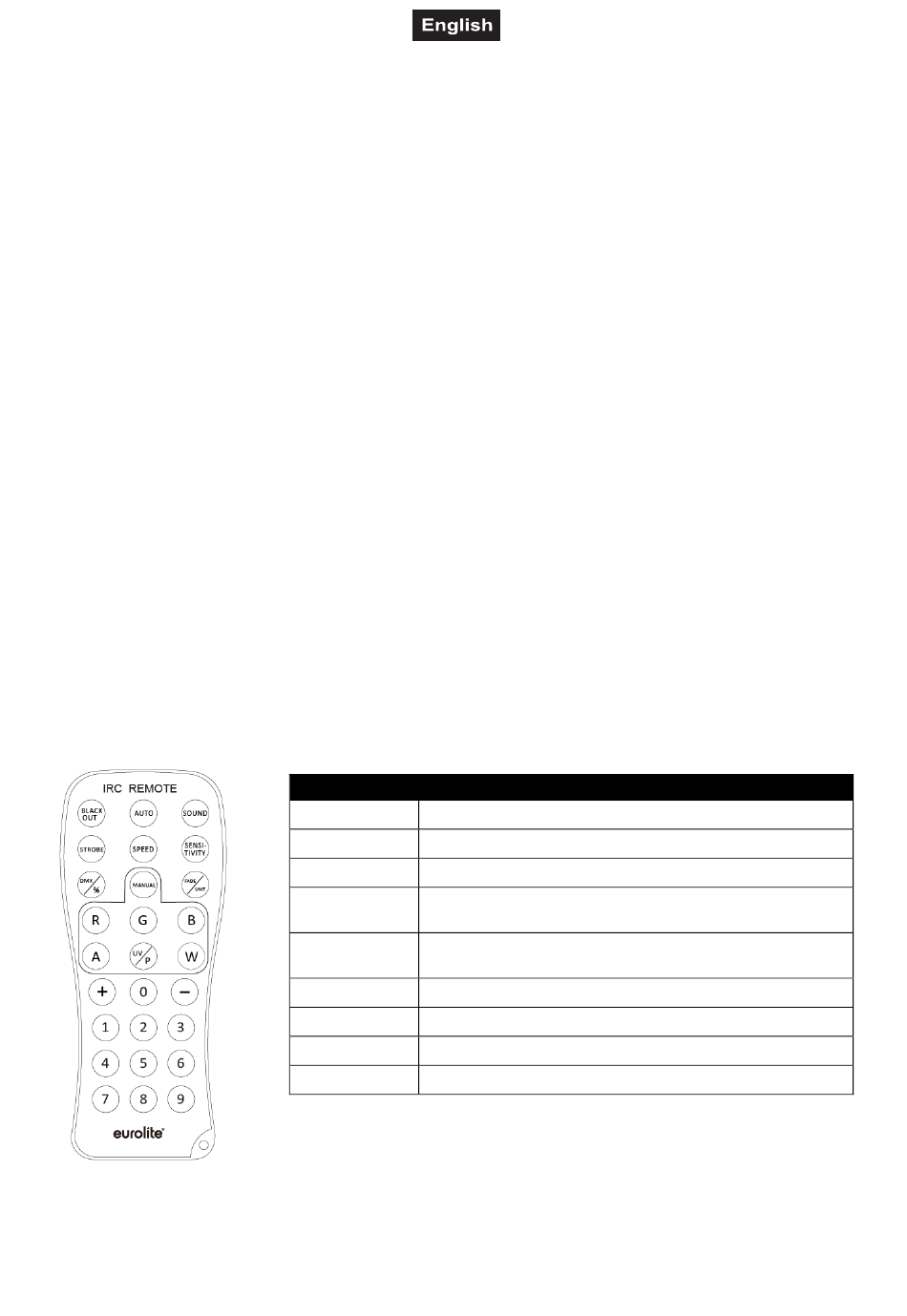

Remote control IR-7

The device must be activated for remote control. For this, set menu item InFr to on. When actuating a
button, always direct the remote control towards the sensor. There must be no obstacles between remote
control and the sensor.
Button Function
BLACKOUT LEDs off
AUTO Automatic mode; program selection with (+)/(‒)
SOUND Sound control; program selection with (+)/(‒)
STROBE
Strobe effect for automatic mode and sound control;
flash rate setting with (+)/(‒)
SPEED Running speed in
setting with (+)/(‒)
SENSITIVITY Microphone sensitivity; setting with (+)/(‒)
DMX DMX mode
MANUAL Color mode; select colors with R/G/B/W/A/UV and (+)/(‒)
1-9 Total brightness; 1 = dark, 9 = bright
