Adjustments

5 Adjustments
Caution while adjustment work. There is danger of injuring the hands!
Use safety gloves! →
5.1

Adjustment of the adjustable support

The mechanical support serves for the correct positioning of the grippers at the gripping good, i.e. an incorrect
adjustment can lead to the parts slipping off
Danger of accidents!

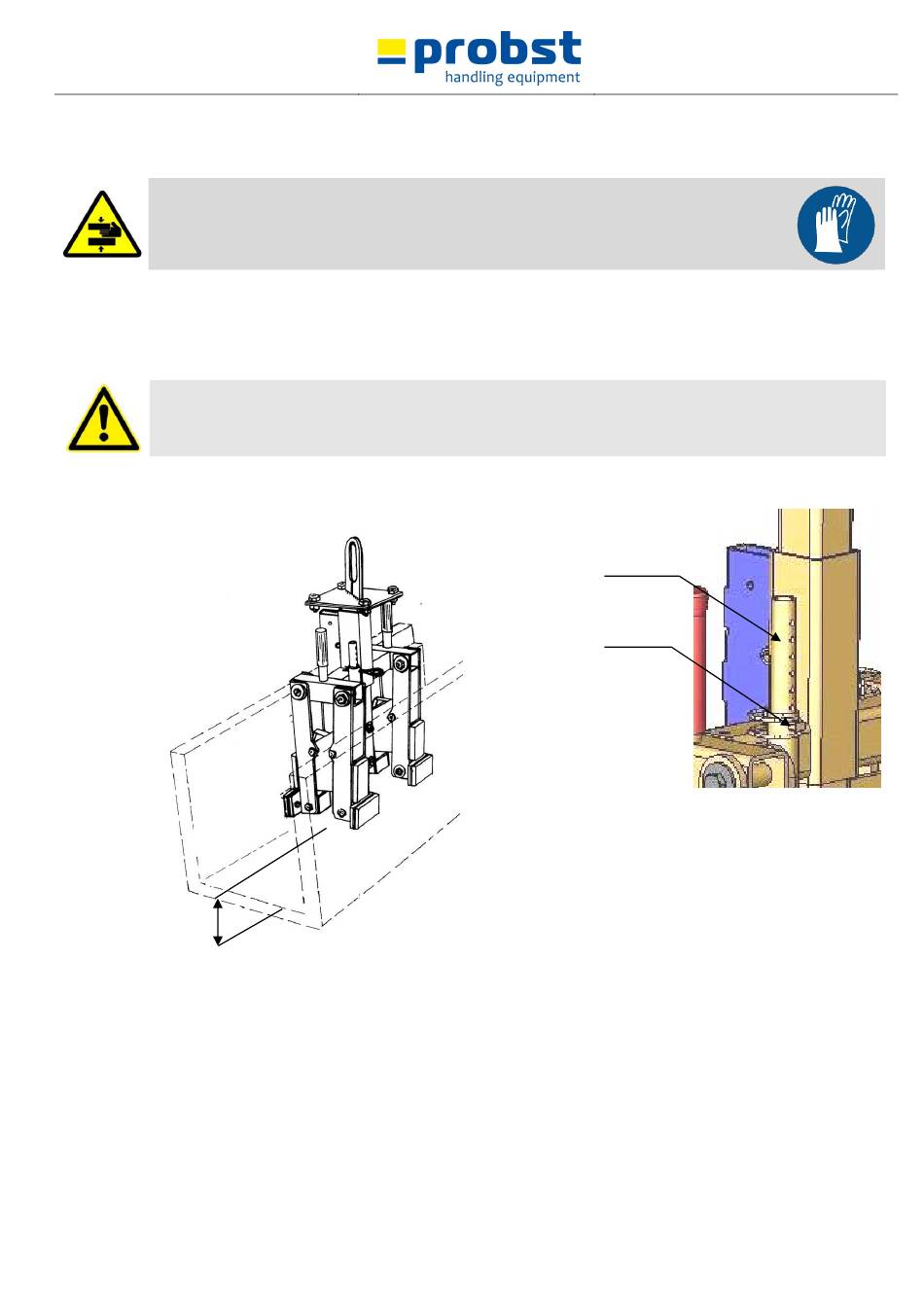

Adjust the support to both sides in such a way that the
lowest point of attack of the grippers lies 15-20 mm over
the sole of the cable channel.
15 – 20 mm
5310.0423
Adjustable
support
Locking ring
V1
13 / 19
GB
