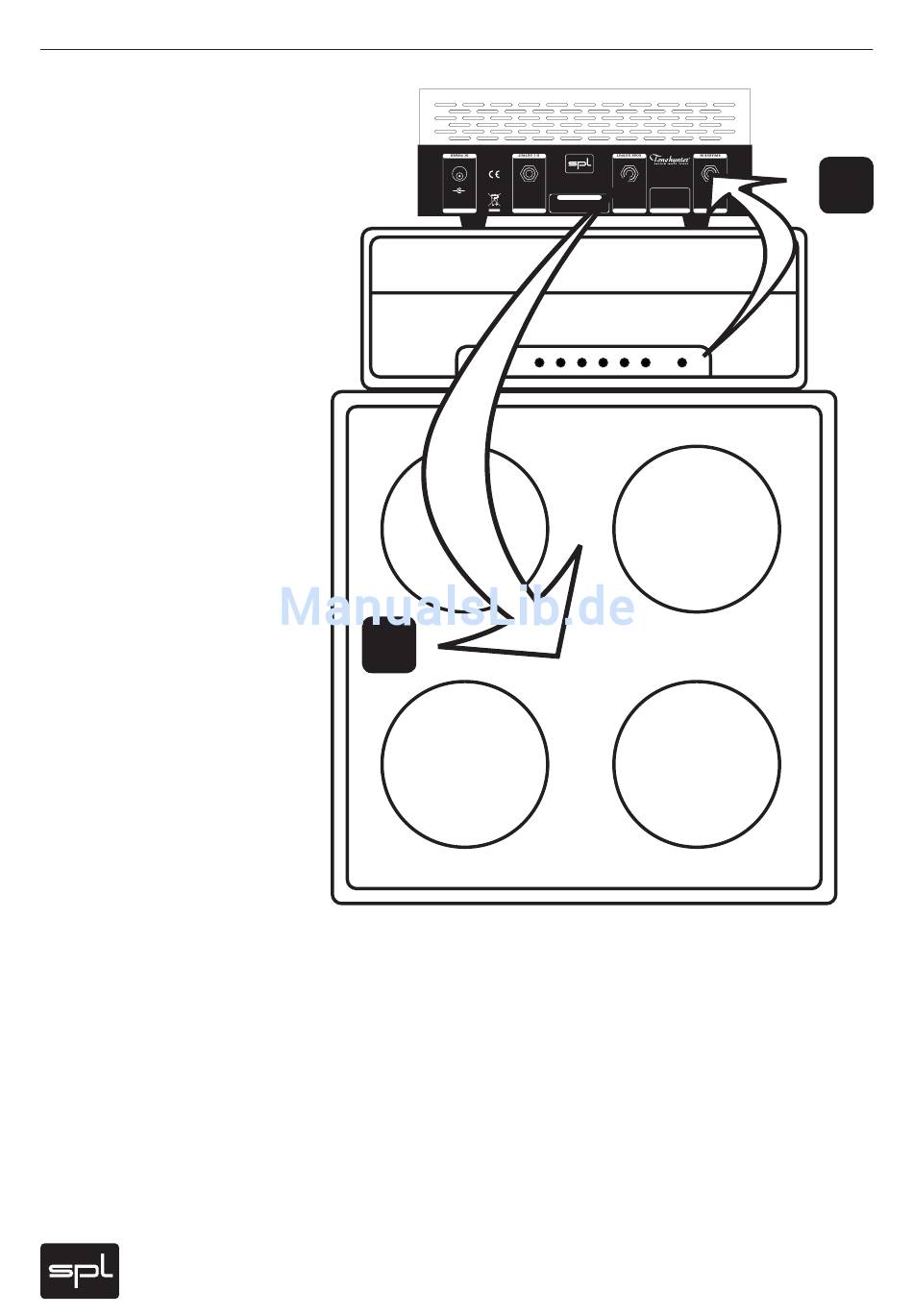

Setup 2: Nur Leistungsreduktion/Power Soak

2
1:
8-Ohm Verstärkerausgang über
verbinden.
2:
SOAK OUTPUT am Cabulator über
verbinden.
14
Tip = (+)/ Ring = (–) Tip = (+)/Sleeve = GND
Sleeve = Audio GND Only!
Sound Performance Lab
www.spl.info
® The SPL logo is a registered
Transformer Bal. trademark of SPL electronics GmbH
+ –
Line Output MADE IN GERMANY
Connect to
IMPORTANT ADVICE
Recording Device, Speaker Cabinet
IN ORDER TO AVOID POSSIBLE DAMAGE OF
DC 9V
Stagebox, etc. 4 Ω to 16 Ω Load
YOUR GUITAR AMPLIFIER DO NOT SET ITS
MASTER VOLUME ABOVE 70%.
DC POWER D.I. OUTPUT SOAK OUTPUT
REFER TO MANUAL FOR MORE INFORMATION.
Lautsprecherkabel
Lautsprecherkabel
Tip = (+)/Sleeve = GND
Developed by Tonehunter, Germany
www.tonehunter.com
® The Tonehunter logo is a registered
trademark of Tonehunter Ltd.
8Ω
Power Soak
Output
Load Only !
Connect to Connect to Speaker
Out of Amplifier
Max: 100 Watts
SERIAL NUMBER SPEAKER IN
mit SPEAKER IN am Cabulator
mit 4- bis 16-Ohm-Gitarrenbox
Cabulator
1
