Page EN-14

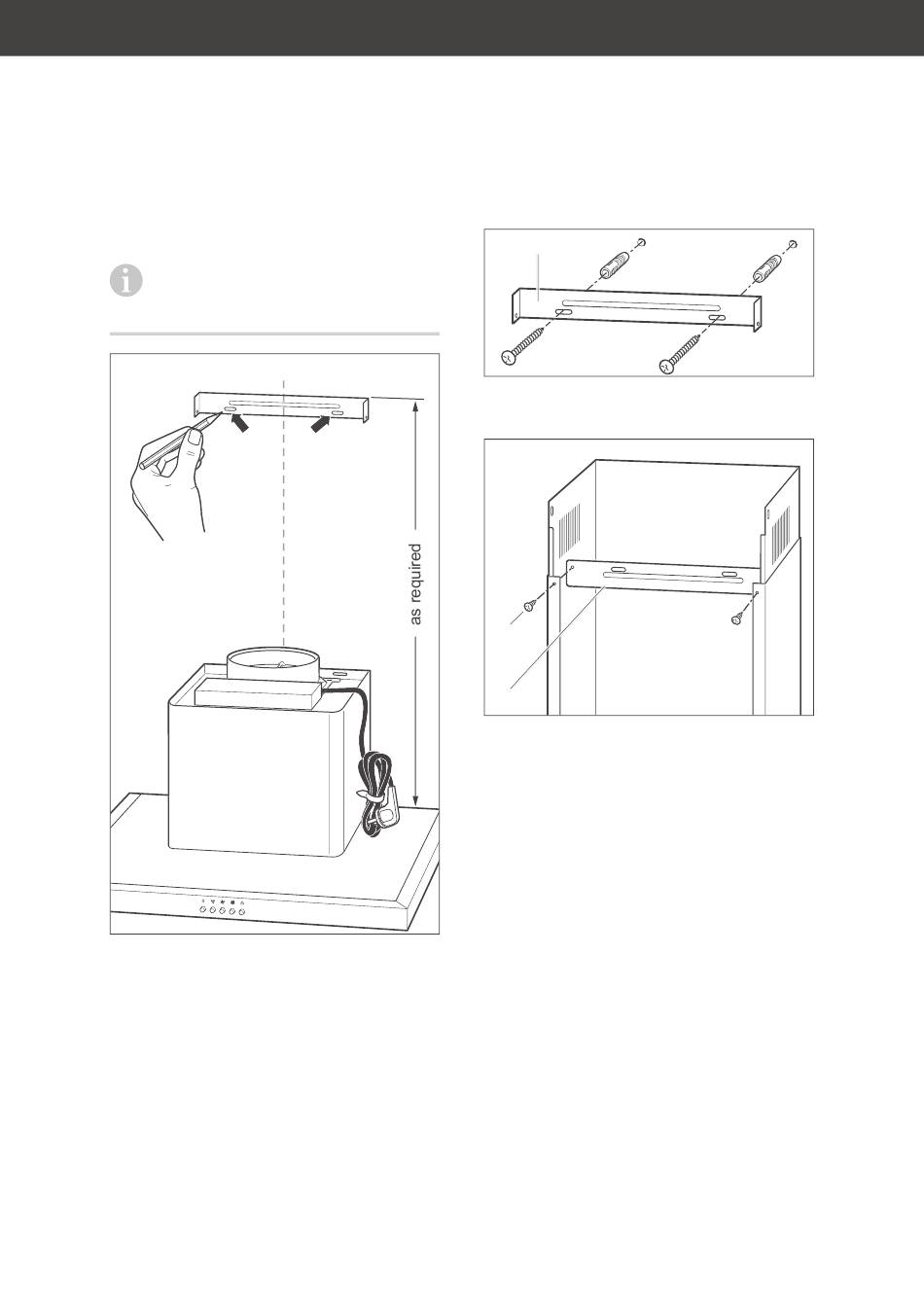

Assembly
Installing the flue screen
If the socket is outside the area for the
flue screen, leave at least 5 cm room
between the ceiling and the wall mount (5).
guideline
1. Hold the wall mount (5) against the wall at
the desired flue height so that the centre
of the wall mount aligns with the vertical
guide line.
2. Draw two drill holes.
3. Drill two dowel holes 8 mm in diameter at
the marked areas.
4. Hammer two dowels into the holes.
(5)
5. Screw the wall mount (5) on tightly using
two screws.
(8)
(6)
6. Screw the retaining plate (6) to the lower
part of the flue screen with two screws (8).
7. Place the flue screen on the exhaust
hood.
