2. Design and function

2. Design and function

2.1 Scope of delivery

■
Pressure sensor
■
Operating instructions
■
Test report
Cross-check scope of delivery with delivery note.

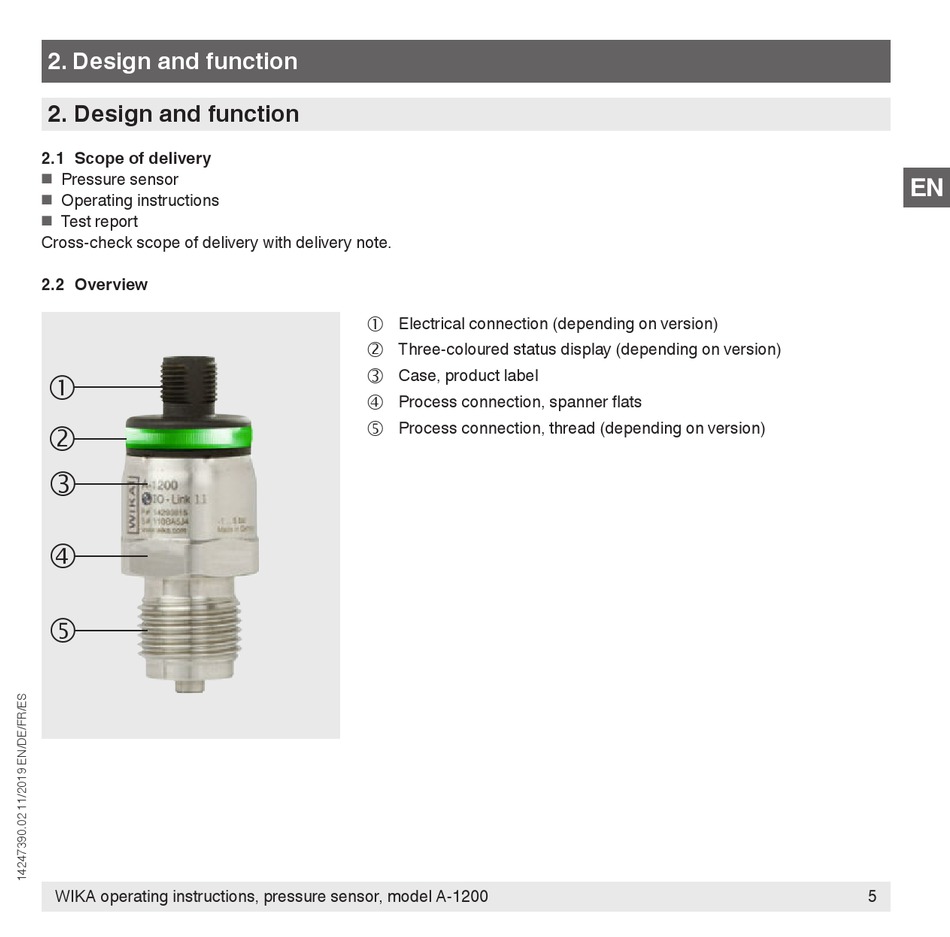

2.2 Overview





WIKA operating instructions, pressure sensor, model A-1200

Electrical connection (depending on version)

Three-coloured status display (depending on version)

Case, product label
Process connection, spanner flats


Process connection, thread (depending on version)
