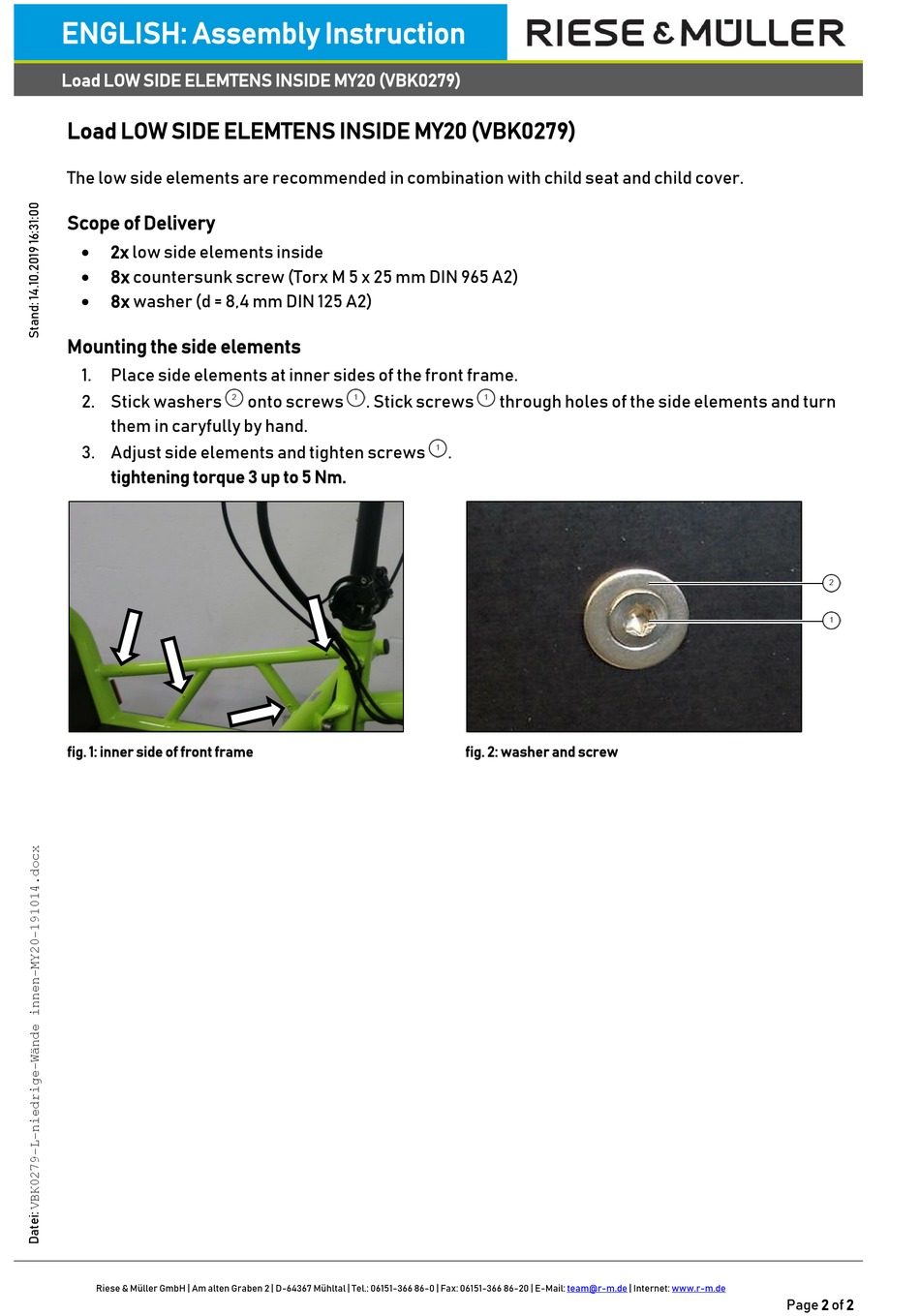

ENGLISH: Assembly Instruction
Load LOW SIDE ELEMTENS INSIDE MY20 (VBK0279)
Load LOW SIDE ELEMTENS INSIDE MY20 (VBK0279)
The low side elements are recommended in combination with child seat and child cover.
Scope of Delivery
2x low side elements inside
8x countersunk screw (Torx M 5 x 25 mm DIN 965 A2)
8x washer (d = 8,4 mm DIN 125 A2)
Mounting the side elements
1.
Place side elements at inner sides of the front frame.
2. Stick washers
them in caryfully by hand.
3. Adjust side elements and tighten screws
tightening torque 3 up to 5 Nm.
fig. 1: inner side of front frame
Riese & Müller GmbH | Am alten Graben 2 | D-64367 Mühltal | Tel.: 06151-366 86-0 | Fax: 06151-366 86-20 | E-Mail:
onto screws
. Stick screws
through holes of the side elements and turn
.
fig. 2: washer and screw
team@r-m.de
| Internet:
www.r-m.de
Page 2 of 2
