EN 1 Flat roof holders Fera Installation Guide
1.2.3 Installation with Weights
Load distribution
α = 30°
50%

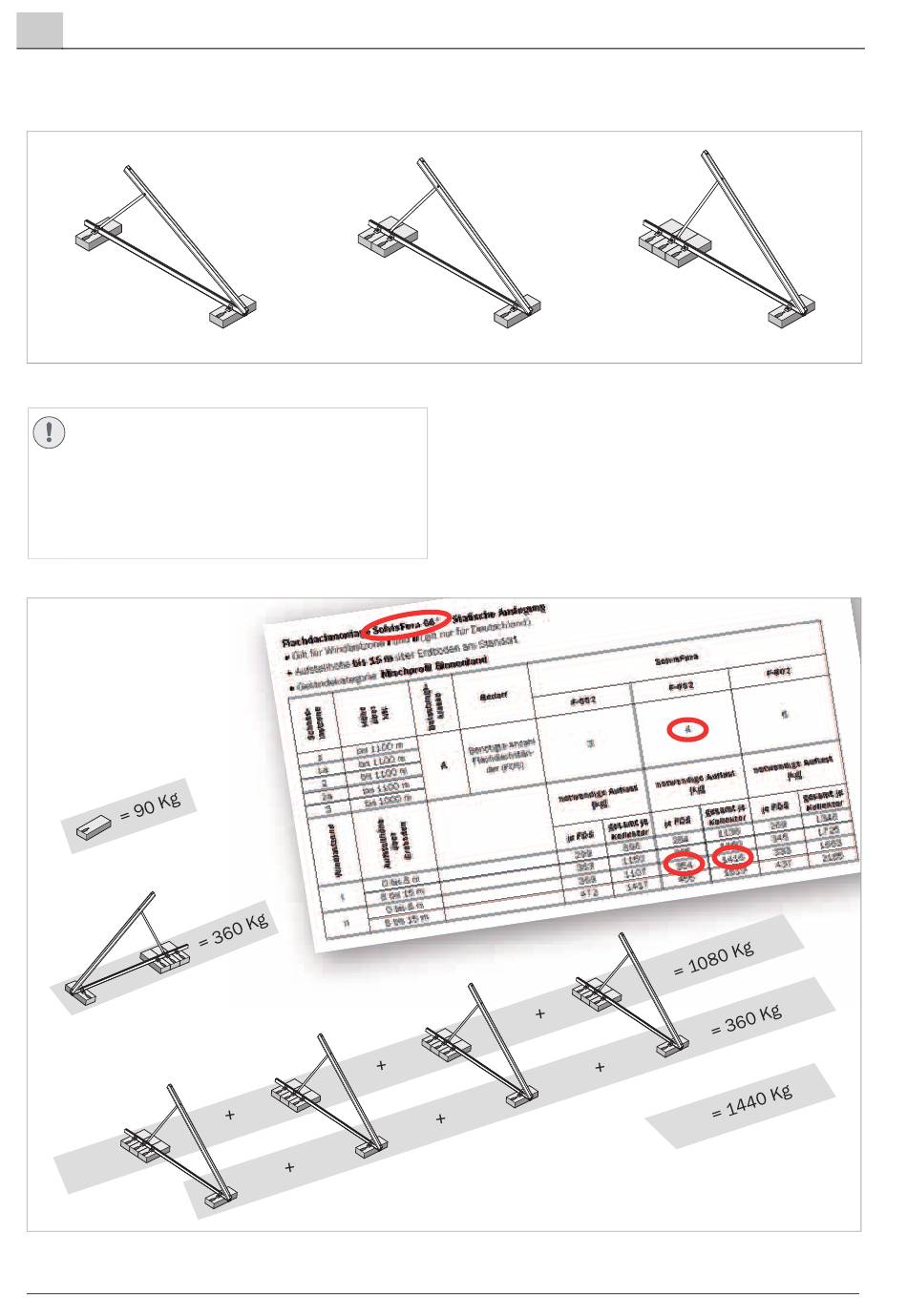

Fig. 16: Load distribution at slope angle α = 30°/ 45° / 60°
CAUTION
Hazard due to overloading the building
• As the system (solar module + holder +
weights) has a significant weight load, always
check the structural calculations for the buil-
ding bearing the load before beginning installa-
tion.
Example for load distribution
Fig. 17: Example for load distribution
16
66,6%
50%
α = 45°
33,3%
Loads
The loads can be made from any material. It is important
that they remain resistant to any type of wind load that
may occur for the duration of the collectors' lifespan.
FDS SolvisFera · Technische Änderungen vorbehalten 09.16 · E 63-M SOLVIS
α = 60°
75%
25%
