Flat Roof Holders Fera Installation Guide; Scope Of Delivery - Solvis Fera Montageanleitung

EN 1 Flat roof holders Fera Installation Guide

1 Flat roof holders Fera Installation Guide

Observe the safety notes
This is for your own safety.
• Make sure that you are familiar with the safety
notes before beginning work.
• Observe and adhere to the relevant safety regu-
lations and the valid accident prevention regu-
lations.
• You should also follow the safety notes and any
other notes from the available system docu-
mentation.
1.1

Scope of Delivery

2
1
7
6

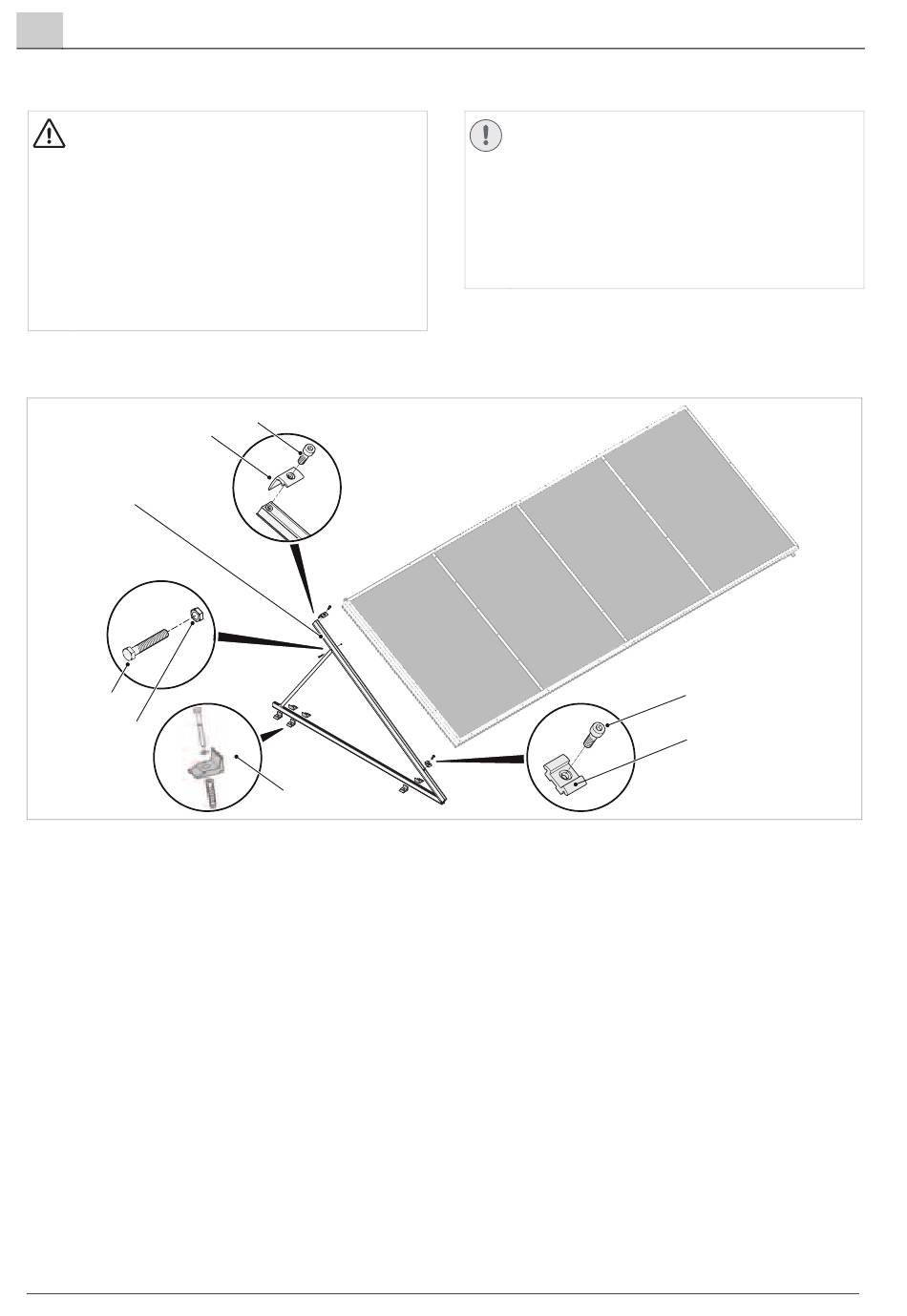

Fig. 14: Flat roof holder set for SolvisFera (collector not included in the scope of delivery)
1 Flat roof holder
2 Collector edge collector edge clamp (for top)
3 Allen screw M8 x 15 A2
4 Collector central clamp (for below)
14
3
5
CAUTION
Observe instructions
Solvis is not liable for any damage resulting from
non-observance of these instructions.
• Read the instructions carefully before operating
or installing the system.
• Contact our Technical Sales department if you
have any questions.
5 Clamping bracket (incl. concrete screws and wall plugs)
6 M8 nut with locking serration
7 Screw M8 x 40 A2
FDS SolvisFera · Technische Änderungen vorbehalten 09.16 · E 63-M SOLVIS
3
4
