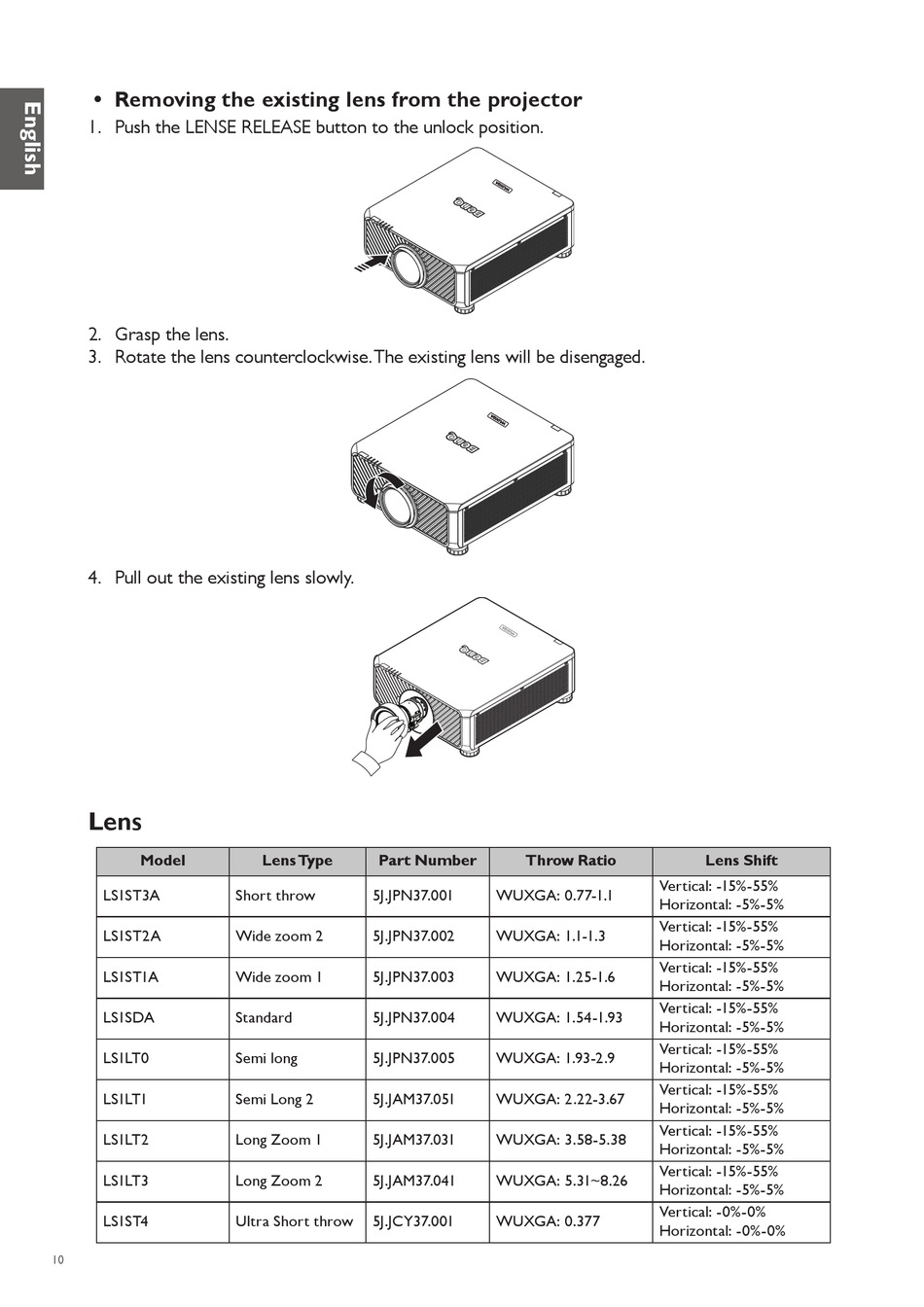

y Removing the existing lens from the projector
1. Push the LENSE RELEASE button to the unlock position.
2. Grasp the lens.
3. Rotate the lens counterclockwise. The existing lens will be disengaged.
4. Pull out the existing lens slowly.

Lens

Model
LS1ST3A
LS1ST2A
LS1ST1A
LS1SDA
LS1LT0
LS1LT1
LS1LT2
LS1LT3
LS1ST4
10
Lens Type Part Number
Short throw 5J.JPN37.001
Wide zoom 2 5J.JPN37.002
Wide zoom 1 5J.JPN37.003
Standard 5J.JPN37.004
Semi long 5J.JPN37.005
Semi Long 2 5J.JAM37.051
Long Zoom 1 5J.JAM37.031
Long Zoom 2 5J.JAM37.041
Ultra Short throw 5J.JCY37.001
Throw Ratio
Vertical: -15%-55%
WUXGA: 0.77-1.1
Horizontal: -5%-5%
Vertical: -15%-55%
WUXGA: 1.1-1.3
Horizontal: -5%-5%
Vertical: -15%-55%
WUXGA: 1.25-1.6
Horizontal: -5%-5%
Vertical: -15%-55%
WUXGA: 1.54-1.93
Horizontal: -5%-5%
Vertical: -15%-55%
WUXGA: 1.93-2.9
Horizontal: -5%-5%
Vertical: -15%-55%
WUXGA: 2.22-3.67
Horizontal: -5%-5%
Vertical: -15%-55%
WUXGA: 3.58-5.38
Horizontal: -5%-5%
Vertical: -15%-55%
WUXGA: 5.31~8.26
Horizontal: -5%-5%
Vertical: -0%-0%
WUXGA: 0.377
Horizontal: -0%-0%
Lens Shift
