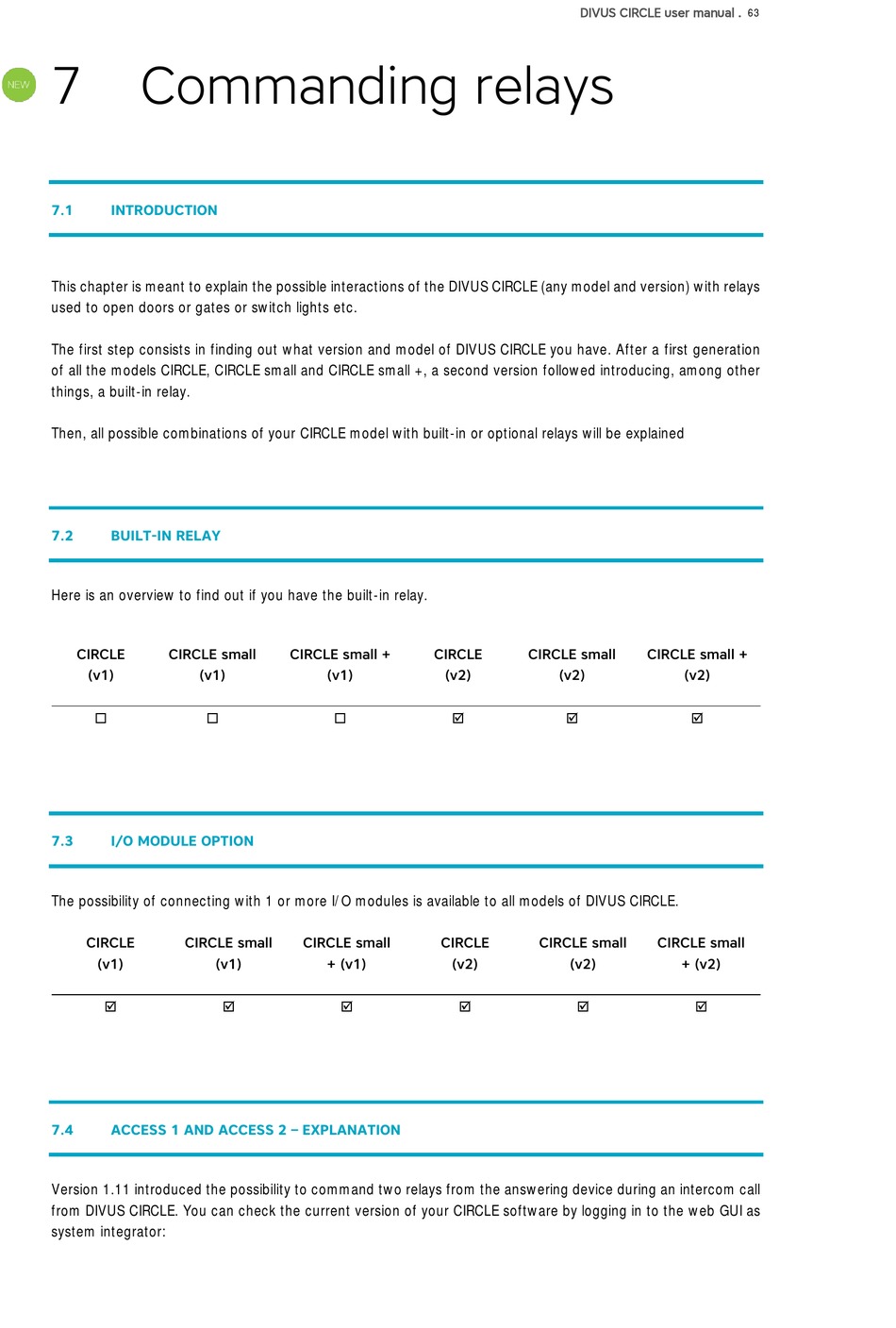

Commanding relays

7.1

INTRODUCTION

This chapter is meant to explain the possible interactions of the DIVUS CIRCLE (any model and version) with relays
used to open doors or gates or switch lights etc.
The first step consists in finding out what version and model of DIVUS CIRCLE you have. After a first generation
of all the models CIRCLE, CIRCLE small and CIRCLE small +, a second version followed introducing, among other
things, a built-in relay.
Then, all possible combinations of your CIRCLE model with built-in or optional relays will be explained
7.2

BUILT-IN RELAY

Here is an overview to find out if you have the built-in relay.
CIRCLE
CIRCLE small
(v1)
(v1)
7.3

I/O MODULE OPTION

The possibility of connecting with 1 or more I/O modules is available to all models of DIVUS CIRCLE.
CIRCLE
CIRCLE small
(v1)
(v1)
7.4
ACCESS 1 AND ACCESS 2 – EXPLANATION
Version 1.11 introduced the possibility to command two relays from the answering device during an intercom call
from DIVUS CIRCLE. You can check the current version of your CIRCLE software by logging in to the web GUI as
system integrator:
CIRCLE small +
(v1)
CIRCLE small
+ (v1)
DIVUS CIRCLE user manual .
CIRCLE
CIRCLE small
(v2)
(v2)
CIRCLE
CIRCLE small
(v2)
(v2)
63
CIRCLE small +
(v2)
CIRCLE small
+ (v2)
