Choose one or more options of what should trigger this output function. Of course, it
may be any of the inputs, but you can also choose between other events the DIVUS
CIRCLE:
Triggers (OR)
I/O module (see chapter 6.1).
All the chosen conditions must be met at the same time to activate this output. For
Conditions (AND)
the description of the options, see Triggers above.
Save any changes with the Save button when done.
For other functions, repeat the described steps. The configuration structure allows also to have multiple actions
If you also count the built-in relay, the possible actions/outputs to trigger in parallel or for discrete inputs be-
come 3.
6.2.1

TIMER DESCRIPTIONS

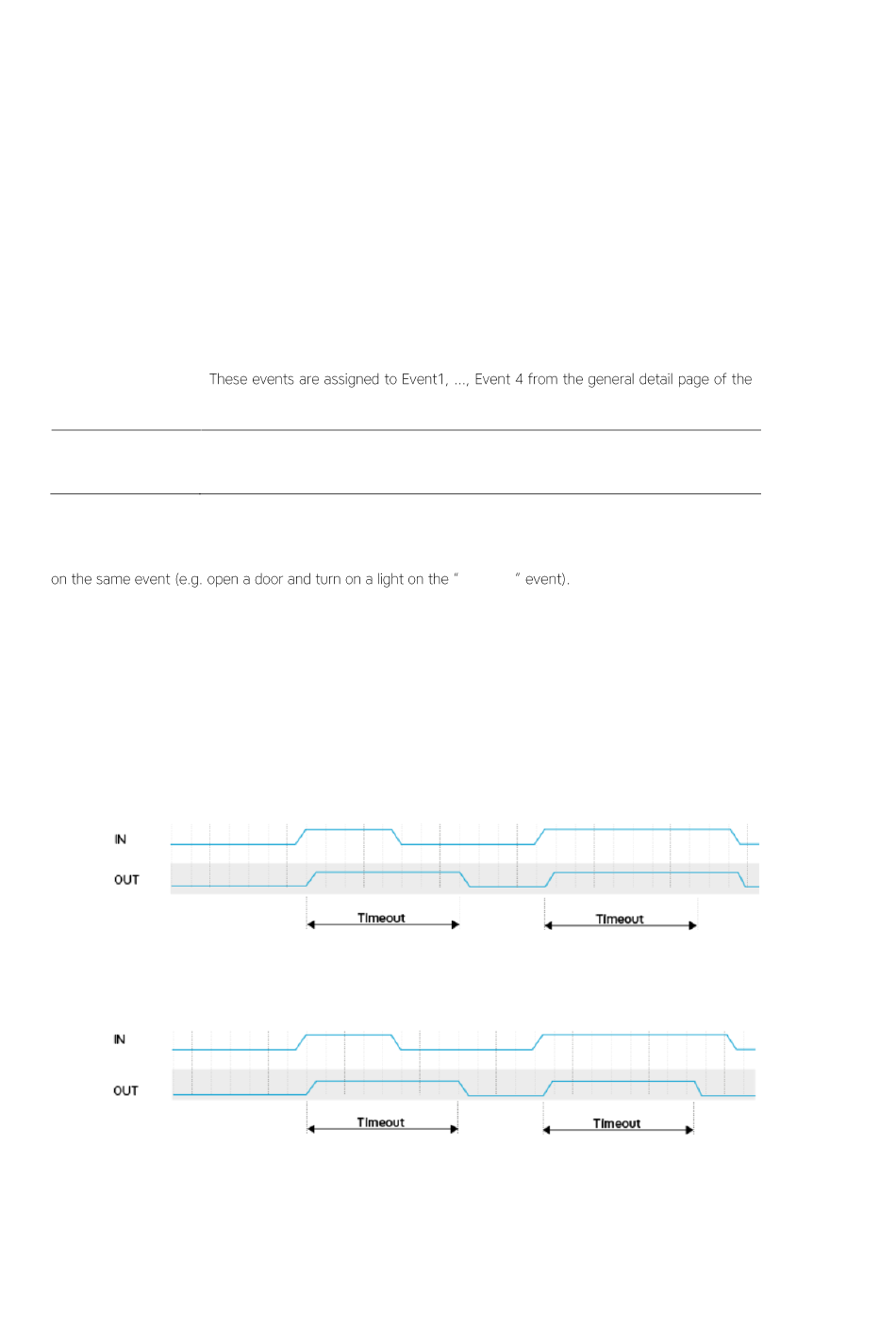

TPE The output signal goes high when the input signal goes high, it come back down after a timeout or
after the input signal goes down (if the input signal stays high longer than the timer duration)
TP The output signal goes high when the input signal goes high, it comes back down after a timeout even
if the input signal stays high longer than the timer duration.
TON The time out starts when the input signal goes high, the output signal goes high when the timeout ex-
pires only if the input signal is still high.
•
Access 1 (when the user answering from inside pushes the door opener, or
a valid NFC card or key code is used)
•
Movement (when movement in front of the DIVUS CIRCLE is detected)
•
Night (when brightness descends below a predefined min. value)
•
Access 2 (same as Access 1 but addresses the second relay)
• Ringing (when somebody started a call from outside)
DIVUS CIRCLE user manual .
Access 1
61
